HUSABERG FE 570 EU - Assembling the Compression Damping Fitting

01/FORK, TRIPLE CLAMP 20
200685-10

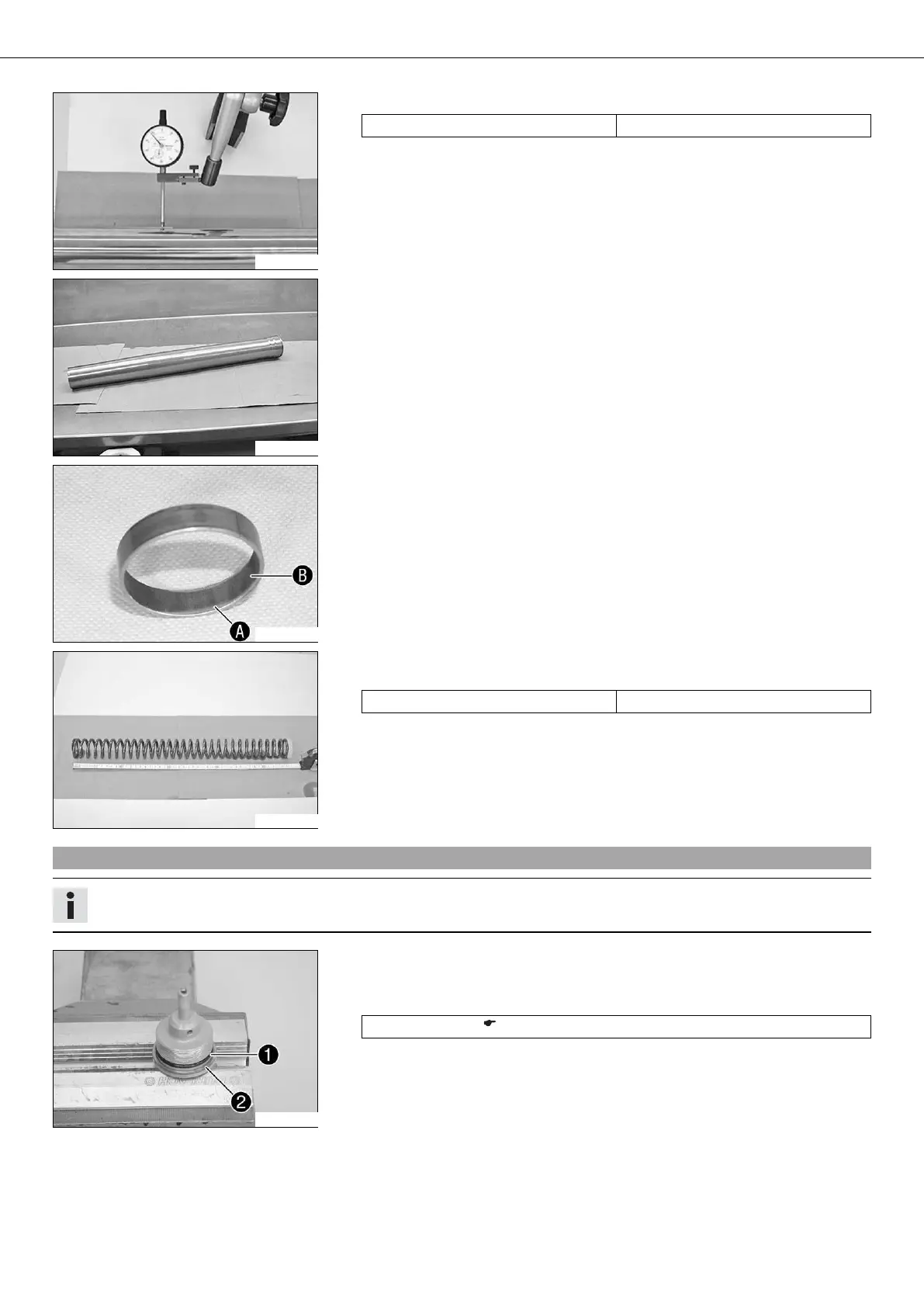

– Measure the run-out of the inner tube.
Inner tub run-out ≤ 0.20 mm (≤ 0.0079 in)
» If the measured value is larger than the specified value:
– Replace the inner tube.
200632-10
– Check the outer tube for damage.
» If there is damage:
– Replace the outer tube.
200665-10
– Check the surface of the sliding bushing.
» If the bronze-colored layer  can be seen beneath the sliding layer :
– Replace the sliding bushing.
200666-10
– Check the spring length.
Guideline
Spring length with preload spacer(s) 510 mm (20.08 in)
» If the measured value is greater than the specified value:
– Reduce the thickness of the preload spacer.
» If the measured value is smaller than the specified value:
– Increase the thickness of the preload spacer.
5.17Assembling the compression damping fitting
Info
The steps are identical for both fork legs.
200704-11
– Clamp the compression damping fitting in a bench vise using soft jaws.
– Mount O-ring  and seal ring .
– Grease the O-ring.
Lubricant (T158) ( p. 265)
