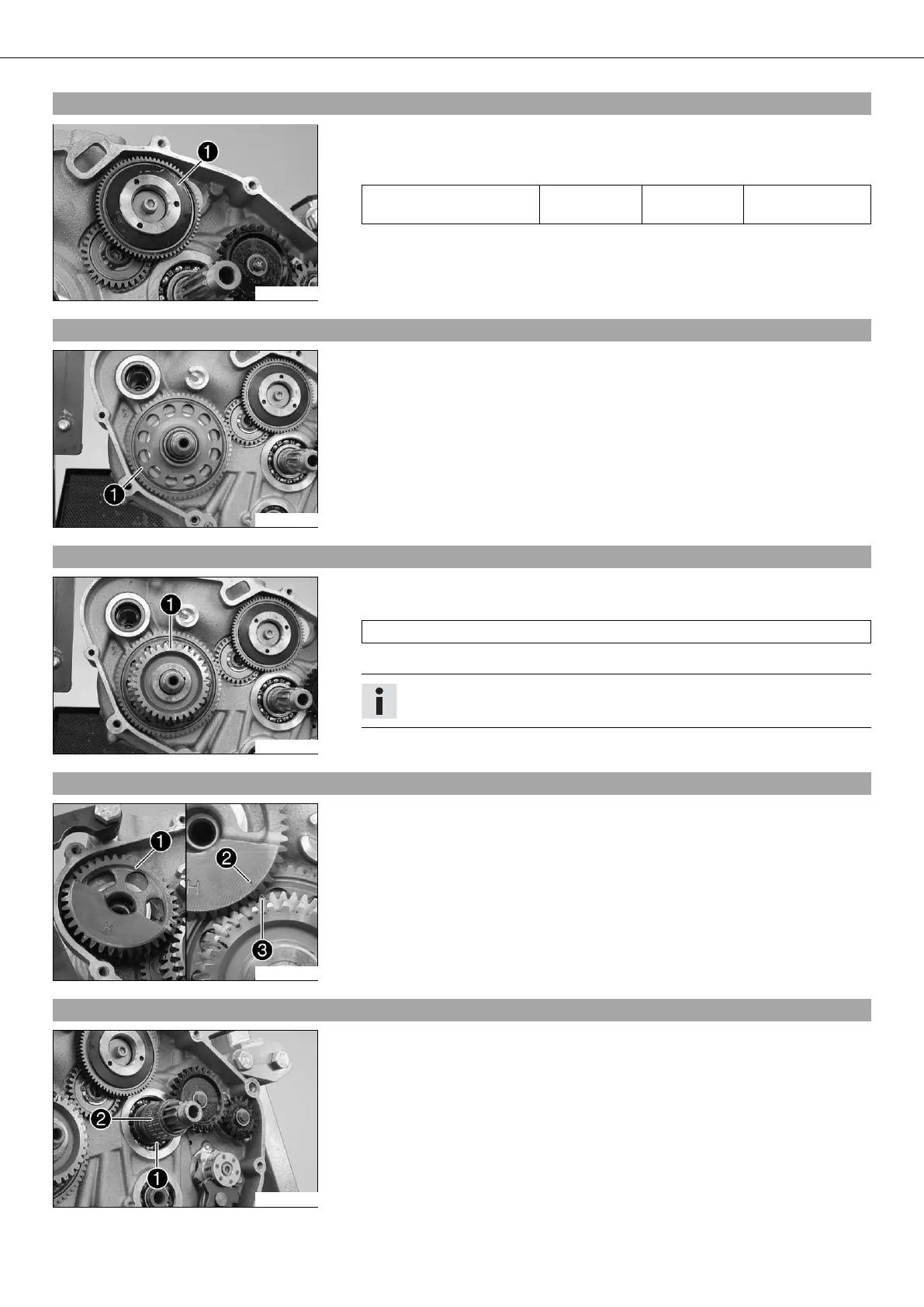

HUSABERG FE 570 EU - Installing the Torque Limiter; Installing the Free Wheel Gear; Installing the Primary Gear; Installing the Balancer Shaft

30/ENGINE ASSEMBLY 141
20.14Installing the torque limiter
300330-10
– Mount the washer and torque limiter .
– Mount and tighten the screw with the washer.
Guideline
Screw, torque limiter M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
20.15Installing the free wheel gear
300449-10
– Mount free wheel gear .
20.16Installing the primary gear
300448-10
– Mount the spring washer.
– Degrease the cone and thinly apply thread locker to it.
Loctite
®
648™
– Mount primary gear .
Info
Turn the free wheel gear back and forth to ease engagement.
20.17Installing the balancer shaft
300363-10
– Push balancer shaft  into the bearing seat. Align marking  on the balance
weight with marking  on the primary pinion.
20.18Installing the outer clutch hub
300328-11
– Mount collar bushing  and needle bearing .
