01/FORK, TRIPLE CLAMP 28

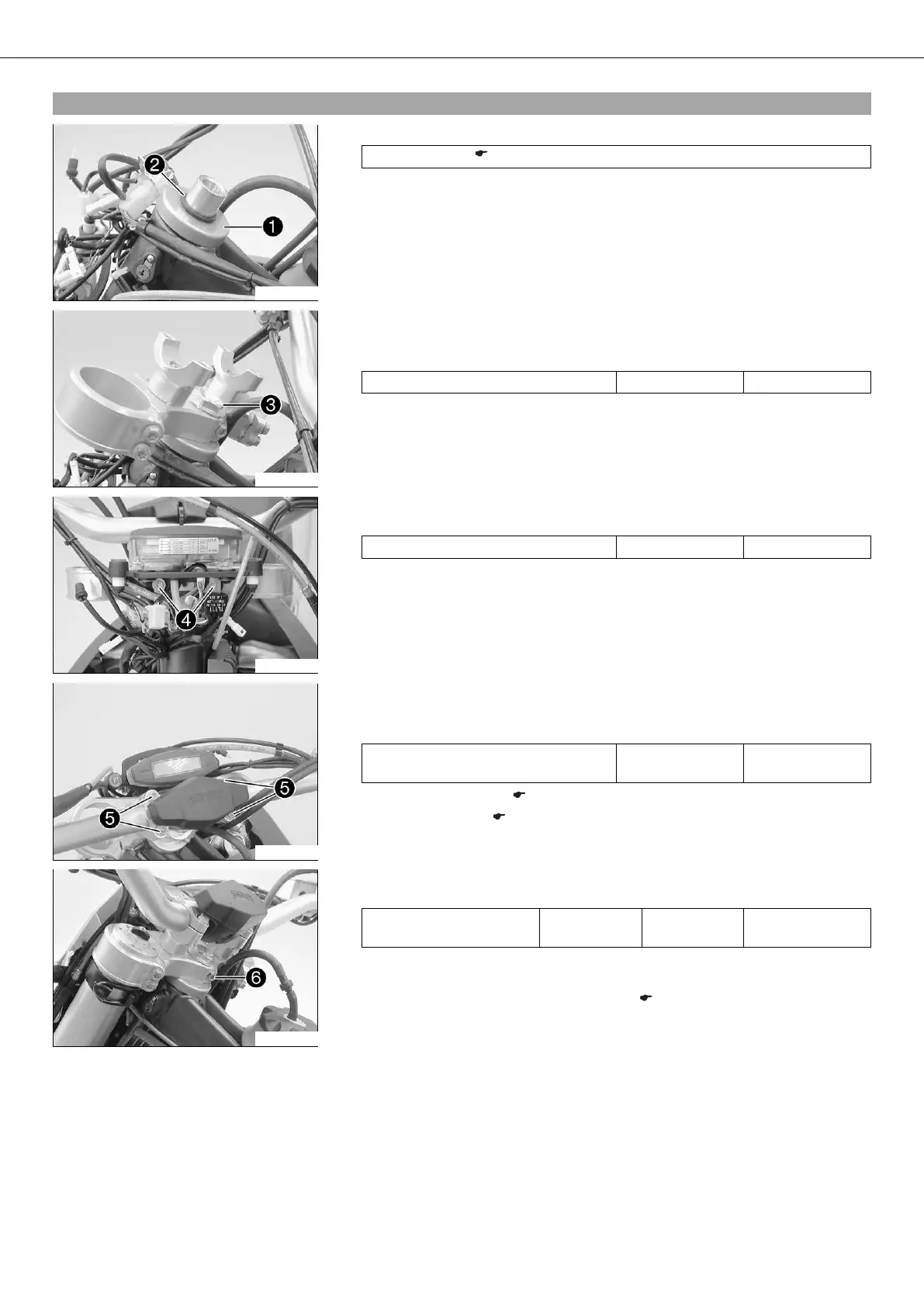

5.22Installing the lower triple clamp
300720-11
– Clean and grease the earings and sealing elements.
Long-life grease ( p. 265)
– Insert the lower triple clamp with the steering stem. Mount the upper steering head
bearing.
– Slide on protective ring and O-ring .
300719-11
– Position the upper triple clamp.
– Mount and tighten screw .
Guideline
Screw, top steering head M20x1.5 10 Nm (7.4 lbf ft)
300718-11
– Position the speedometer and connector board. Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
300717-11
– Position the handlebar.
– Mount and tighten screws .
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
– Install the front fender. ( p. 63)
– Install the fork legs. ( p. 12)
300723-10
– Mount and tighten screw .
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
– Check wiring harness, control cables, brake and clutch lines for freedom of move-
ment and routing.
– Check the play of the steering head bearing. ( p. 29)
