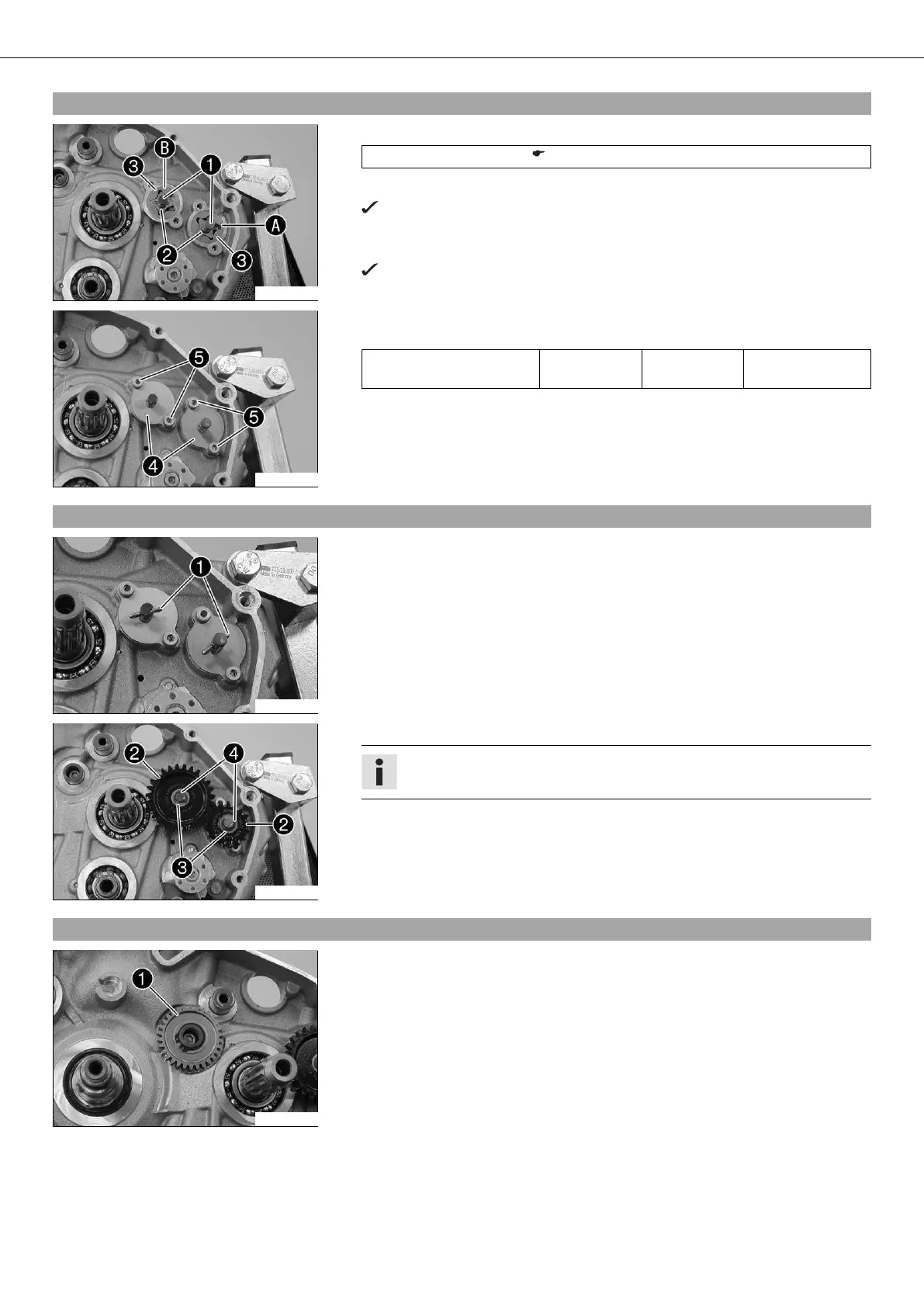

HUSABERG FE 570 EU - Installing the Oil Pumps; Installing the Oil Pump Gears; Installing the Starter Idler Gear

30/ENGINE ASSEMBLY 140
20.11Installing the oil pumps
300335-11
– Oil the oil pump shaft, internal rotor and external rotor before assembly.
Engine oil (SAE 10W/50) ( p. 263)
– Assemble both oil pump shafts , together with the pin and internal rotor .
The marking of force pump  is visible after assembly, that of suction
pump  is not.
– Mount both external rotors .
The markings are not visible after assembly.
300334-11
– Position oil pump cover . Mount and tighten screws .
Guideline
Screw, oil pump cover M5 6 Nm
(4.4 lbf ft)
Loctite
®
222
20.12Installing the oil pump gears
300333-11
– Insert pin .
300332-11
– Position oil pump gears .
Info
Ensure that the pins are seated properly.
– Position washers .
– Mount shaft locking devices .
– Crank the oil pump gears and ensure that they move easily.
20.13Installing the starter idler gear
300331-10
– Slide on starter idler gear  with the collar facing the engine case.
– Slide on the disk. Mount the lock ring.
