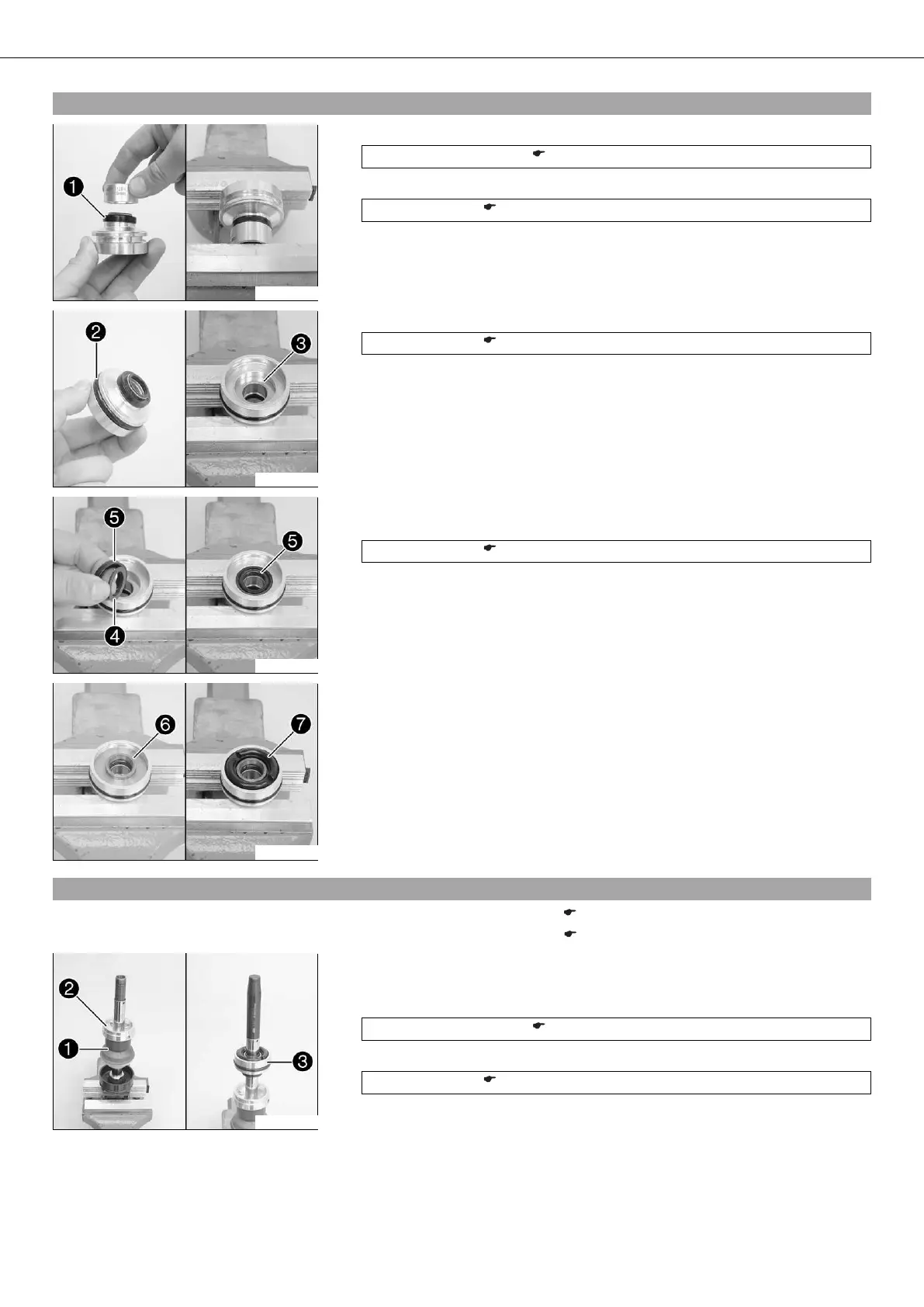

7.22Assembling the seal ring retainer
200792-10
– Mount dust boot  with the special tool.
Mounting sleeve (T1204) ( p. 274)
– Grease the sealing lip of the dust boot.
Lubricant (T625) ( p. 266)
200793-10
– Grease the O-ring groove.
Lubricant (T158) ( p. 265)
– Mount O-ring .
– Mount washer .
200794-10
– Position washer  on seal ring .
– Grease the seal ring and mount with the washer facing downward.
Lubricant (T511) ( p. 266)
200795-10
– Mount centering disk .
– Mount rebound rubber .
7.23Assembling the piston rod
– Assemble the seal ring retainer. ( p. 43)
– Assemble the rebound adjuster. ( p. 42)
200773-10
– Clamp the piston rod with the fork in a bench vise.
– Mount bump rubber  and locking cap .
– Position the special tool on the piston rod.
Mounting sleeve (T1215) ( p. 275)
– Grease the dust boot and slide seal ring retainer  onto the piston rod.
Lubricant (T625) ( p. 266)
– Remove the special tool.
