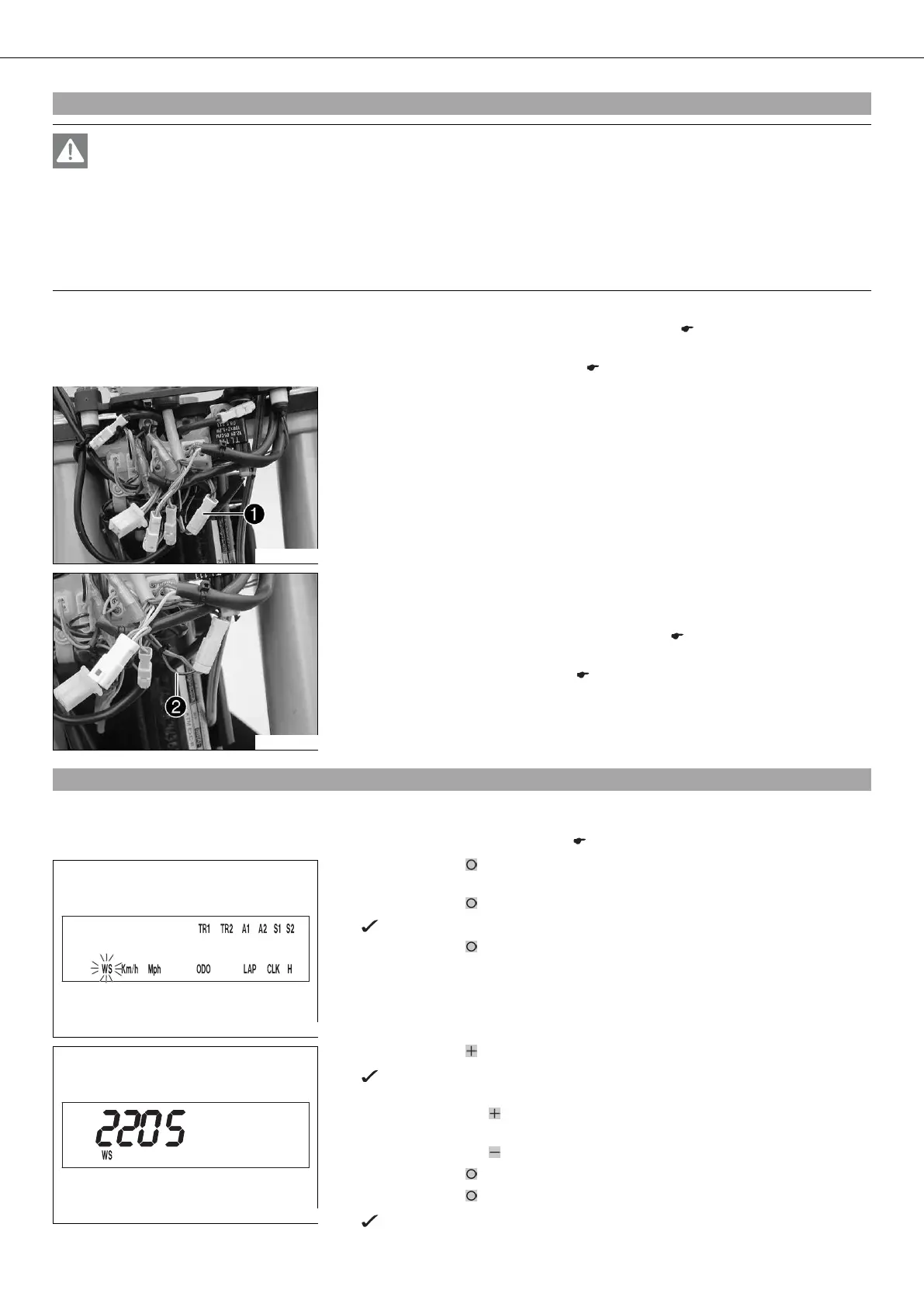

16.3Activating the additional functions
Danger
Voiding of the government approval for road use and the insurance coverage The vehicle is only authorized for operation on pub-
lic roads in the homologous version.
– If the vehicle is modified in any way, then it may only be operated in closed off areas remote from public road traffic.
Advise the vehicle owner and rider of this.
– If you undertake any modifications, please insist on receiving a signed workshop order from your customer in which you
inform the customer in writing that these modifications are performed at the customer's own risk and that the vehicle will
no longer be approved for use on public roads once modified.
(FE EU, FE AUS)
– Remove the headlight mask with the headlight. ( p. 88)
(FE USA)
– Remove the start number plate. ( p. 63)
301287-10
– Expose connector CZ .
301288-10
– Sever brown cable in front of connector CZ PIN 1.
– Insulate both cable ends.
(FE EU, FE AUS)
– Install the headlight mask with the headlight. ( p. 88)
(FE USA)
– Install the start number plate. ( p. 64)
16.4Setting the wheel circumference
Condition
The motorcycle is standing.
– Activate the additional functions. ( p. 87)
400315-01
– Press the button briefly and repeatedly until H appears at the bottom right of the
display.
– Press the button for 3 - 5 seconds.
The setup menu is displayed and the active functions shown.
– Press the button until the WS indicator blinks.
400314-01
– Press the button .
The wheel circumference is displayed in millimeters.
Enlarging the wheel circumference
– Press the button .
Reducing the wheel circumference
– Press the button .
– Press the button briefly.
– Press the button for 3 - 5 seconds.
The settings are stored and the setup menu closed.
