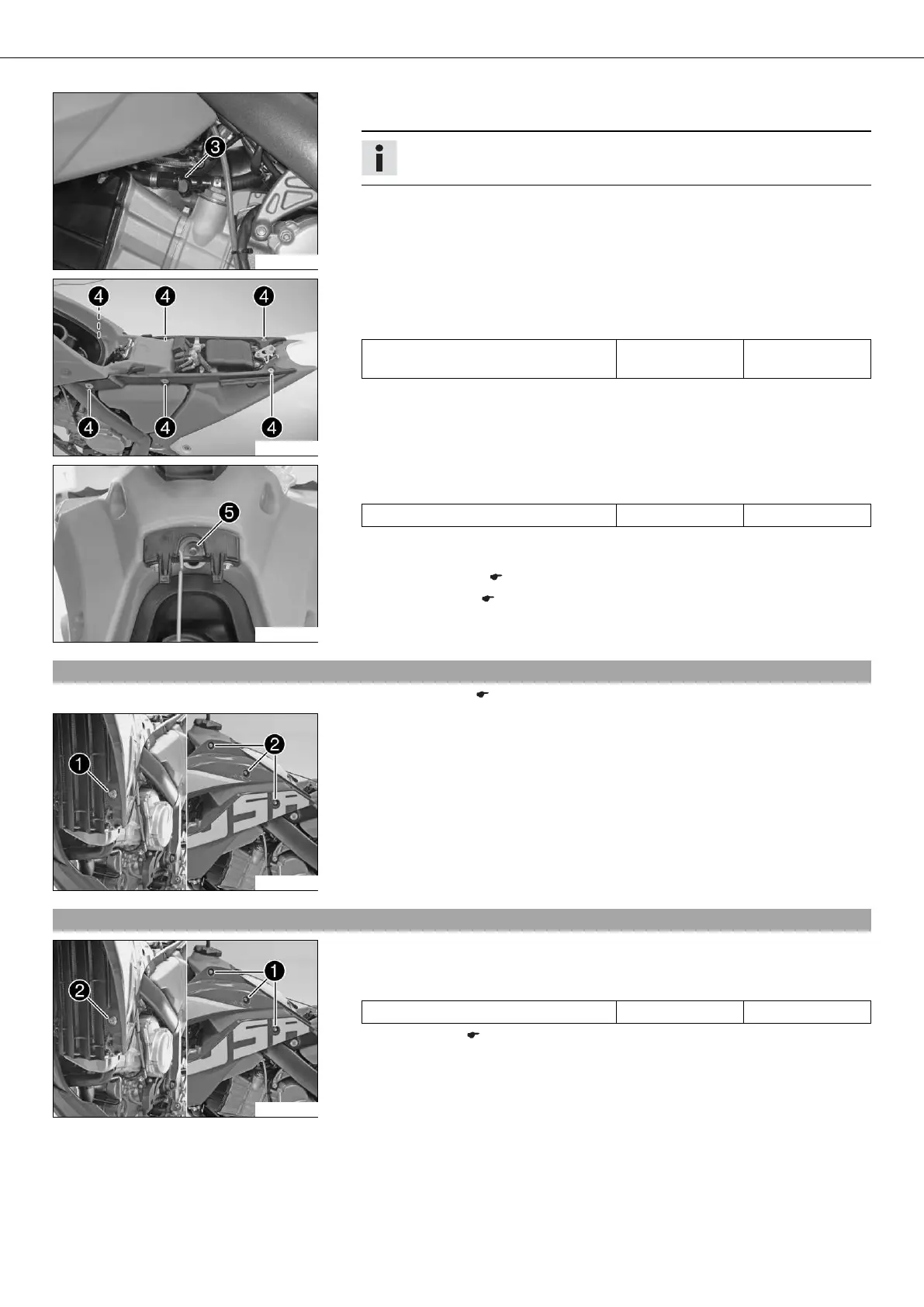

07/FUEL TANK, SEAT, TRIM 61
100439-10
– Remove the wash cap set. Oil the O-ring and connect plug-in connector of the
fuel line.
Info
Route the cable and fuel line at a safe distance from the exhaust system.
100432-11
– Position the top part of the subframe.
– Mount and tighten screws .
Guideline
Screw, subframe M8 30 Nm
(22.1 lbf ft)
100433-11
– Mount and tighten screw .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Check that the intake trumpet and the connection of the engine housing vent are
clear.
– Install the air filter. ( p. 57)
– Install the spoiler. ( p. 61)
– Check the fuel system for leakage.
10.5Removing the spoiler
– Remove the seat. ( p. 59)
100430-10
– Remove screw on the radiator.
– Remove screws on the fuel tank and take off the spoiler.
10.6Installing the spoiler
100430-11
– Position the spoiler. Mount and tighten screws .
– Mount and tighten screw on the radiator.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Mount the seat. ( p. 59)
