HUSABERG FE 570 EU - Assembling the Rebound Adjuster

04/SHOCK ABSORBER, SWINGARM 42
200801-10

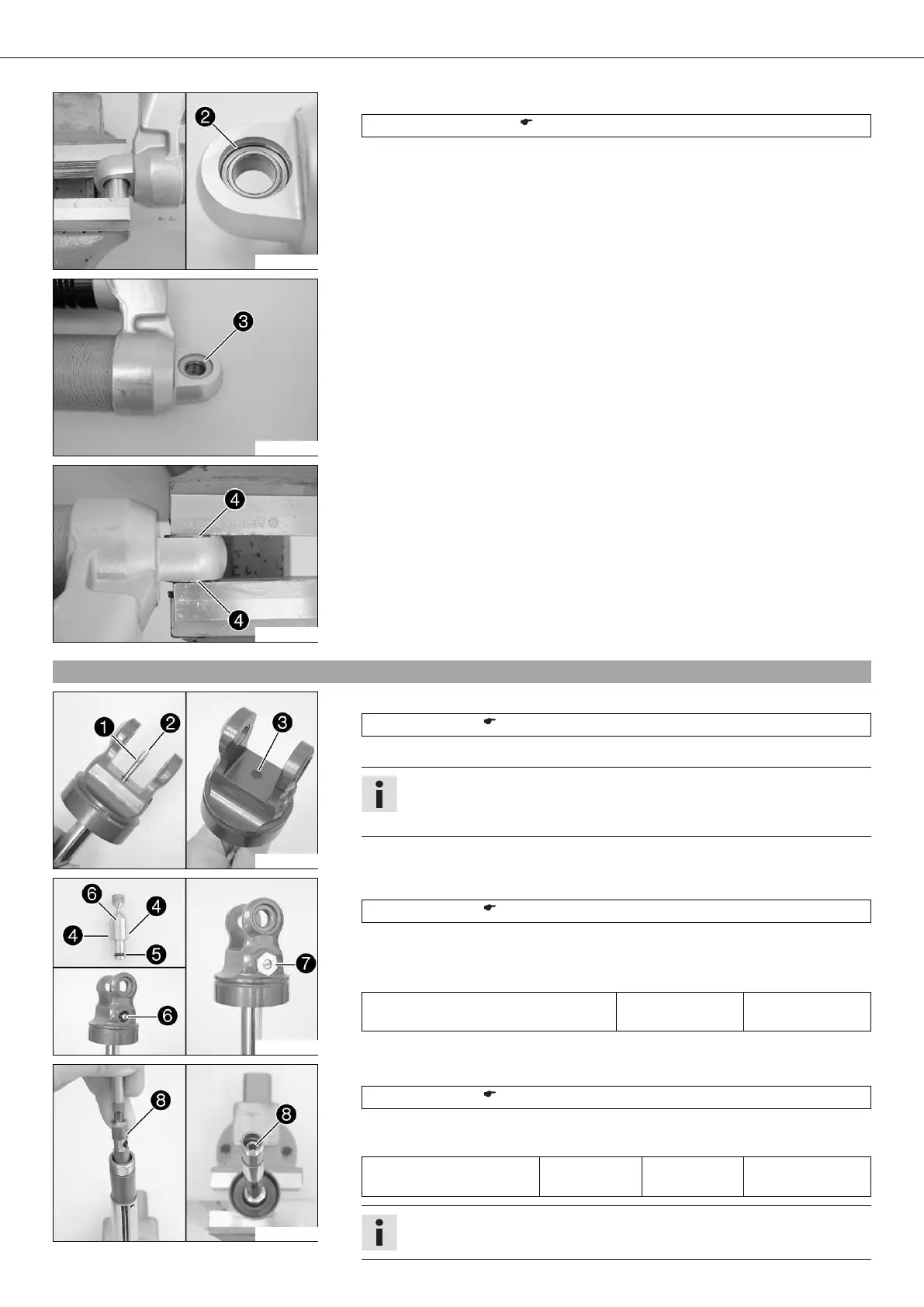

– Press the heim joint against the lock ring using the special tool.
Pressing tool (T1207S) ( p. 275)
– Mount the second lock ring .
200800-11
– Mount seal ring  on both sides.
200804-10
– Position both collar bushings  and press in.
7.21Assembling the rebound adjuster
200808-10
– Grease O-ring  of the rebound needle.
Lubricant (T158) ( p. 265)
– Mount rebound needle  in the piston rod.
Info
Push in the rebound needle to the point where it is possible to mount the
rebound damping adjusting screw.
– Mount rubber plug .
200809-10
– Lubricate spring, balls  and O-ring .
Lubricant (T159) ( p. 266)
– Screw in the rebound damping adjusting screw  all the way.
– Mount and tighten screwsleeve .
Guideline
Screwsleeve M14x1 18 Nm
(13.3 lbf ft)
– Screw out the rebound damping adjusting screw  to the stop.
200810-10
– Grease the O-ring of the rebound damping seat.
Lubricant (T159) ( p. 266)
– Mount and tighten rebound damping valve seat .
Guideline
Rebound damping valve
seat
M8x1 6 Nm
(4.4 lbf ft)
Loctite
®
2701
Info
The rebound damping valve seat must be pressed inward before tightening.
