01/FORK, TRIPLE CLAMP 14

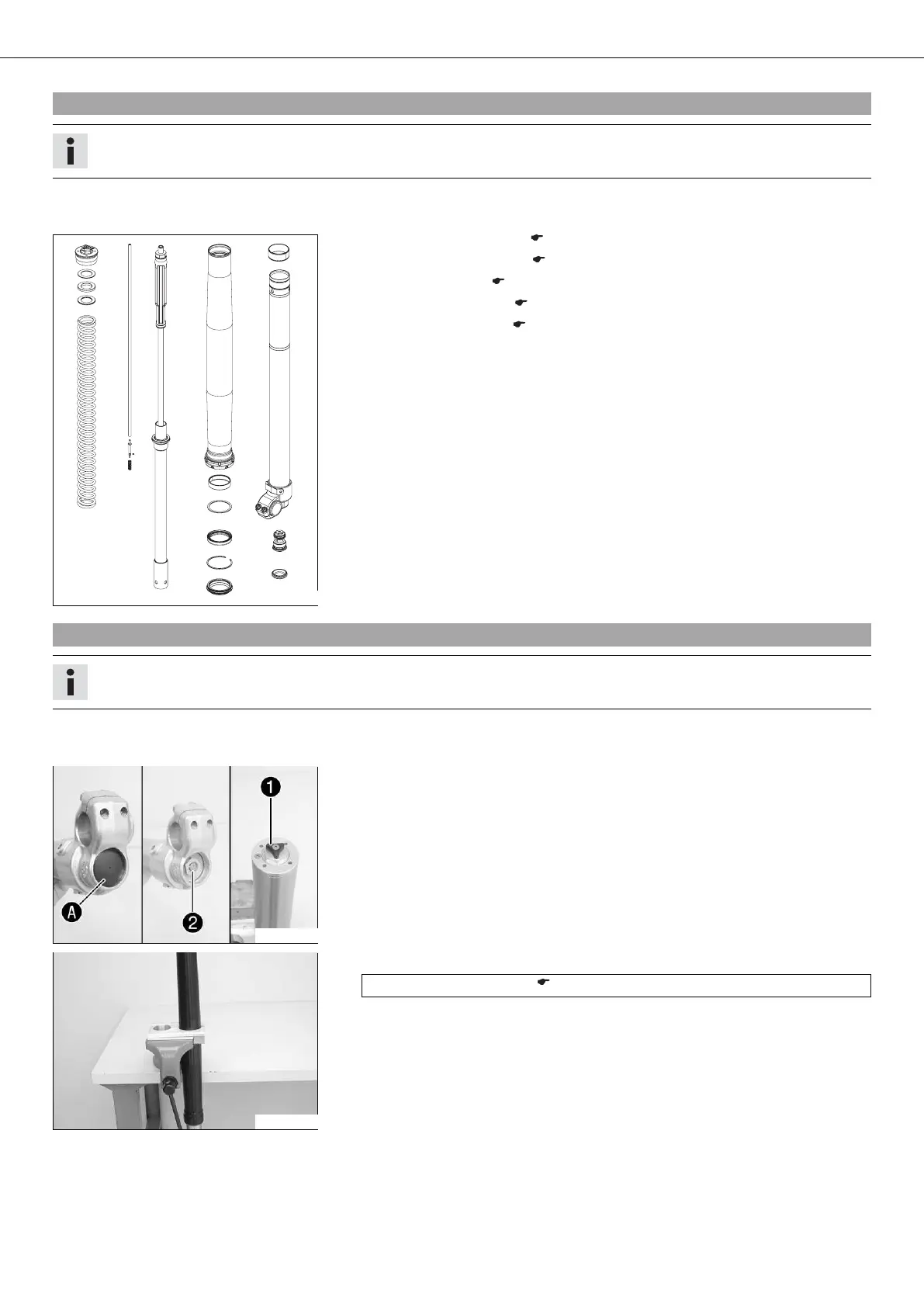

5.12Performing a fork service
Info
These operations are the same on both fork legs.
Condition
The fork legs have been removed.
200979-01
– Disassemble the fork legs. ( p. 14)
– Disassemble the cartridge. ( p. 17)
– Check the fork legs. ( p. 19)
– Assemble the cartridge. ( p. 21)
– Assemble the fork legs. ( p. 23)
5.13Disassembling the fork legs
Info
The steps are identical for both fork legs.
Condition
The fork legs are disassembled.
200736-10
– Remove protective cover .
– Take note of the present state of the rebound damping and compression damp-
ing .
– Take note of the present state of the spring preload.
– Completely open the adjustment elements of the rebound damping and compres-
sion damping.
200643-10
– Clamp the fork leg in the area of lower triple clamp.
Clamping stand (T1403S) ( p. 277)
