30/ENGINE 91
17.1Removing the engine
– Remove the engine guard. ( p. 30)
– Jack up the motorcycle. ( p. 9)
– Disconnect the negative cable of the battery. ( p. 73)
– Drain the coolant. ( p. 155)
– Remove the main silencer. ( p. 54)
– Take off the throttle valve body and allow it to hang to the side. ( p. 161)
– Remove the swingarm, with shock absorber and rear wheel. ( p. 51)

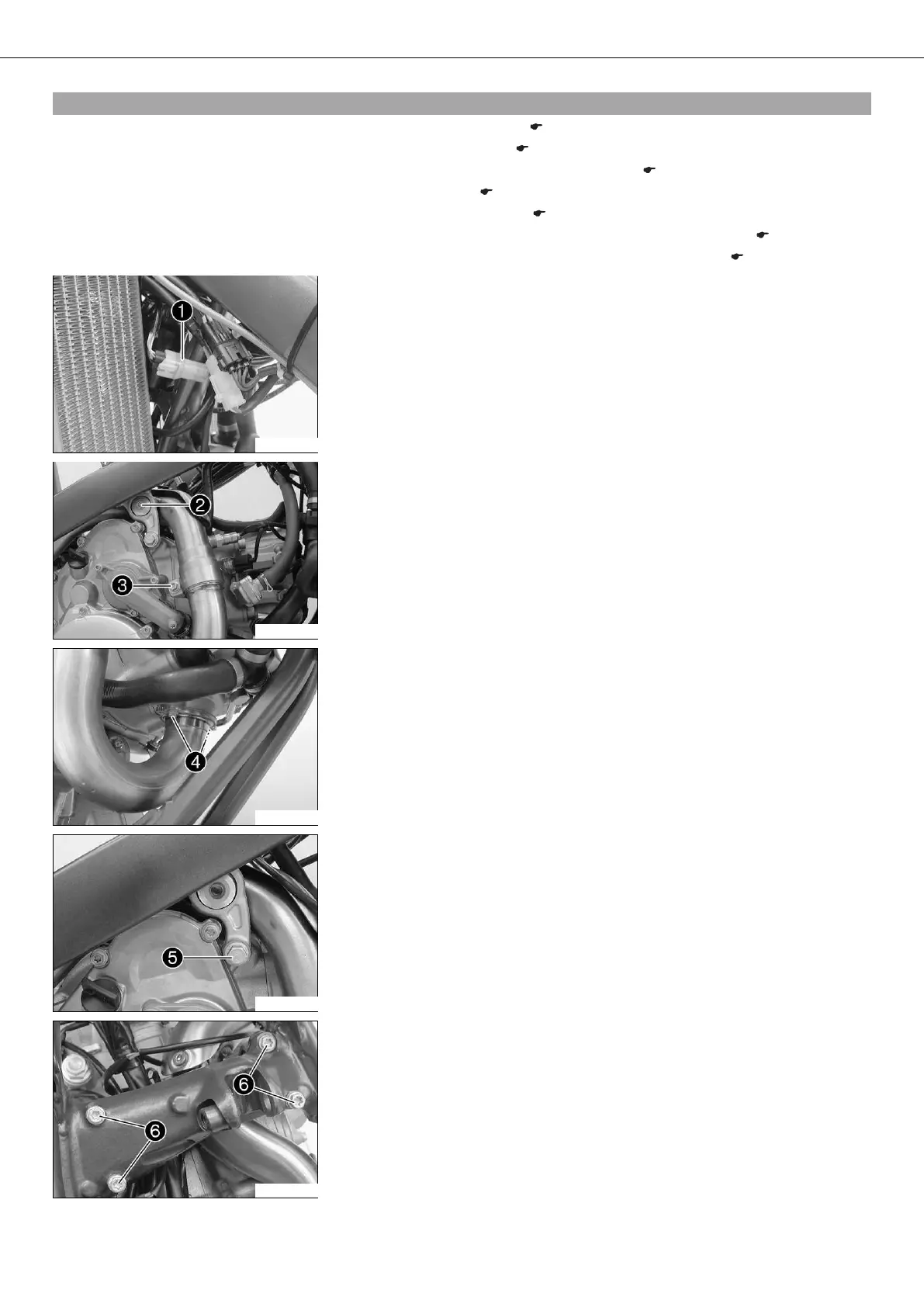

300676-10
– Unplug connector of the lambda sensor. Open the cable binders.
300677-10
– Remove screw .
– Unscrew screw .
300678-10
– Remove screws .
– Take off the exhaust manifold along with the gasket.
300680-10
– Remove screw .
300679-10
– Remove screws .
– Take off both engine mounting brackets.
– Maneuver out the exhaust pipe.
