11/WIRING HARNESS, BATTERY 75
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
– Mount the seat. ( p. 59)

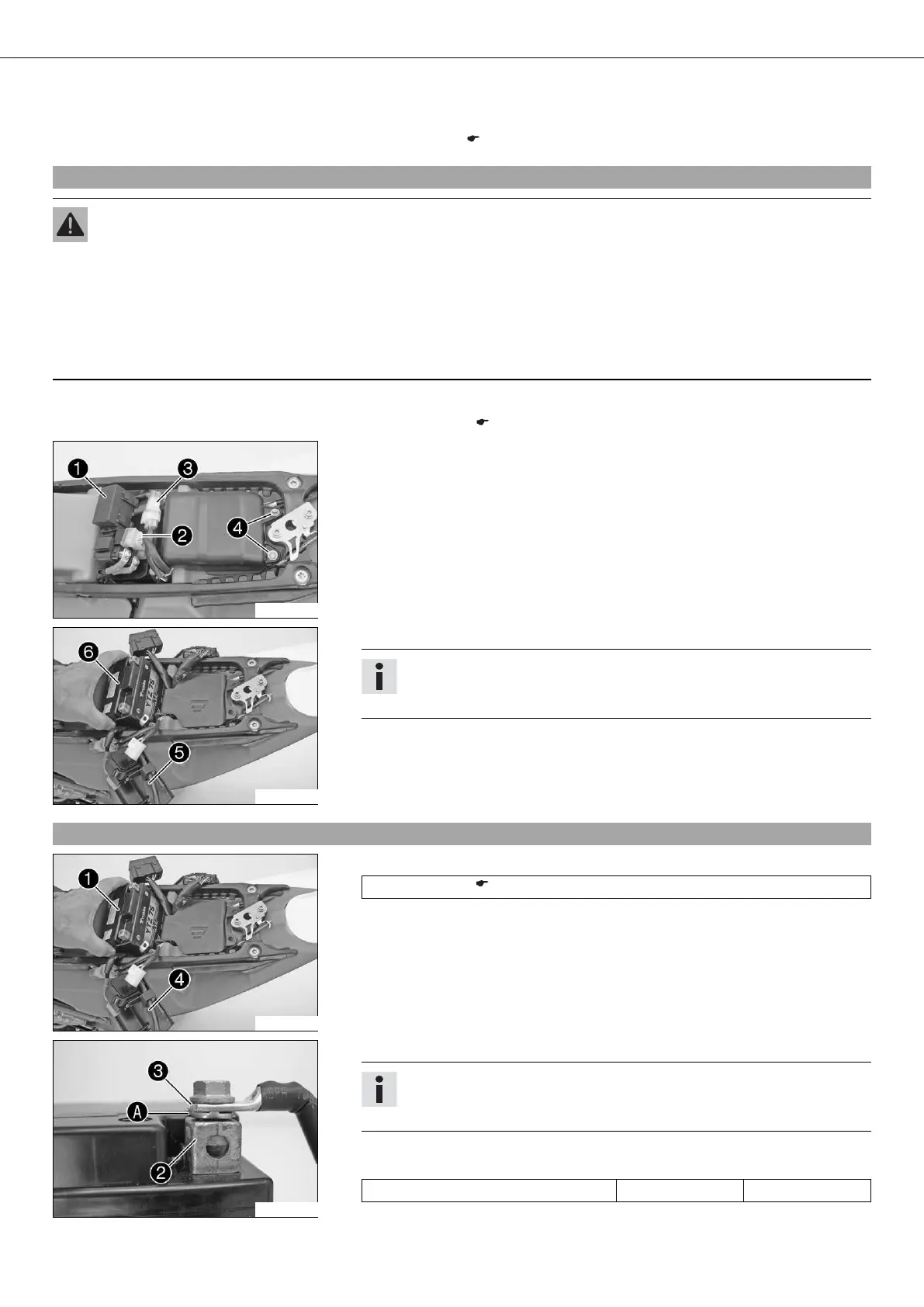

14.5Removing the battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep the battery away from sparks or open fire. Charge only in well-ventilated rooms.
– In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 59)
100422-10
– Detach fuse box and swing it to one side.
– Detach connector and swing it to one side with connector .
– Remove screws and swing battery cover with the starter relay to one side.
Swing the EFI control unit to one side.
100423-10
– Disconnect the negative and positive cables of the battery.
Info
Pay attention to the contact disks between the cable sockets and battery
terminals.
– Lift battery up and out.
14.6Installing the battery
100423-11
– Insert battery into the battery tray with the terminals facing to the rear.
Battery (YTZ7S) ( p. 224)
100424-10
– Connect the positive and negative cables.
Info
Contact disks must be mounted between battery terminals and cable
sockets with the claws facing up.
– Tighten the screws.
Guideline
Screw, battery terminal M5 3 Nm (2.2 lbf ft)
