01/FORK, TRIPLE CLAMP 21
200705-10

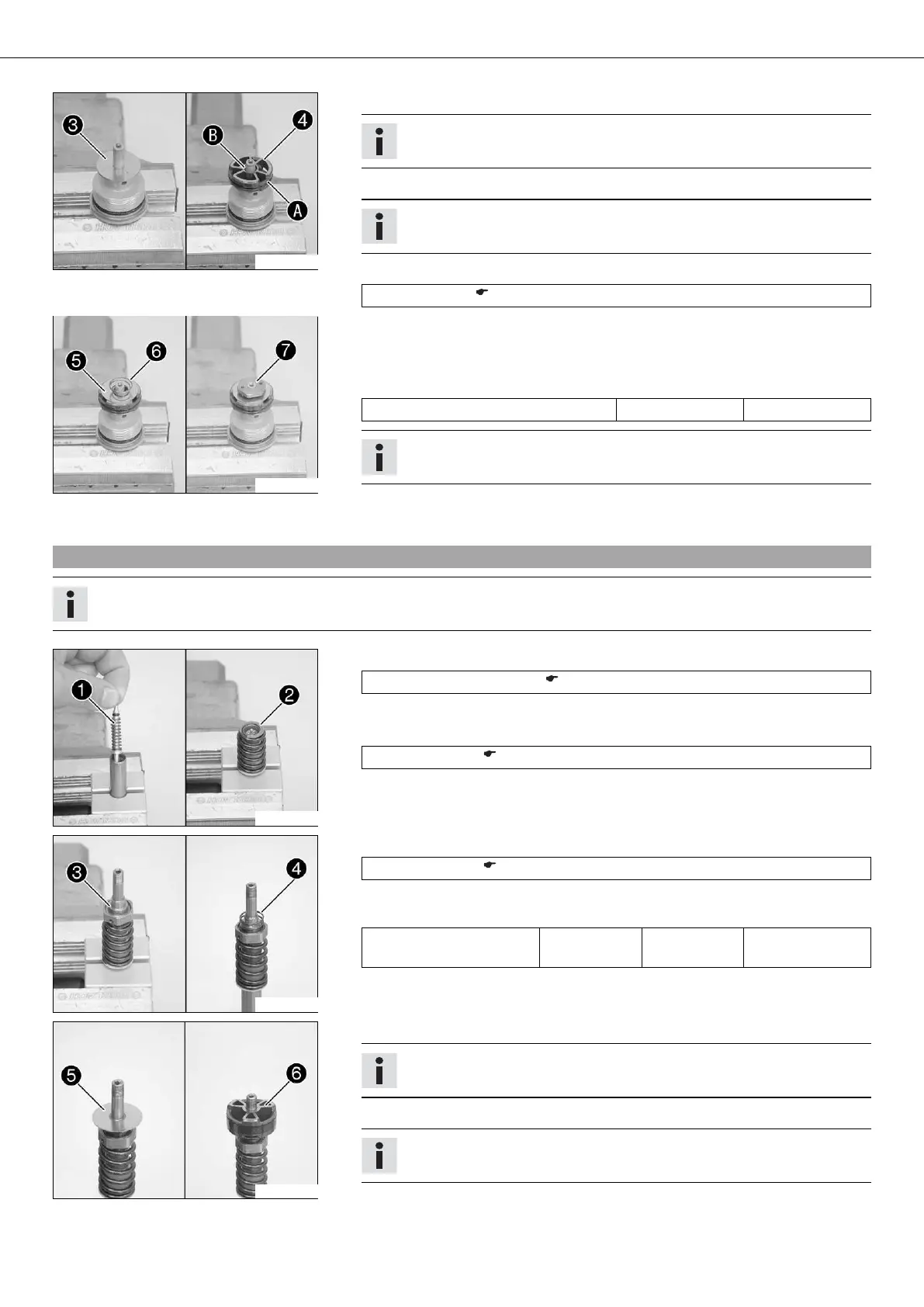

– Mount shim stack .
Info
Mount the smaller shims below.
– Mount pistons with O-ring .
Info
The side with the largest inside diameter faces upward.
– Grease the piston O-ring.
Fork oil (SAE 5) ( p. 263)
200706-10
– Mount washer .
– Mount spring with the tighter coil facing downward.
– Mount and tighten nut .
Guideline
Compression damping fitting nut M6x0.5 3 Nm (2.2 lbf ft)
Info
The washer must have freedom of movement relative to the spring force.
– Secure the nut by locking.
– Extract the compression damping fitting.
5.18Assembling the cartridge
Info
The steps are identical for both fork legs.
200715-10
– Clamp in the piston rod.
Clamping stand (T14016S) ( p. 276)
– Mount valve of the rebound damping, with the spring and O-ring.
– Grease the O-ring.
Lubricant (T158) ( p. 265)
– Mount spring .
200718-10
– Grease tap rebound O-ring.
Lubricant (T158) ( p. 265)
– Mount and tighten the tap rebound.
Guideline
Tap rebound M9x1 18 Nm
(13.3 lbf ft)
Loctite
®
2701
– Position spring .
200719-10
– Mount shim stack .
Info
Mount the smaller shims below.
– Press the shim stack downward against the spring force.
Info
The shim stack must be pressed downward over the collar.
– Mount piston with the piston ring.
