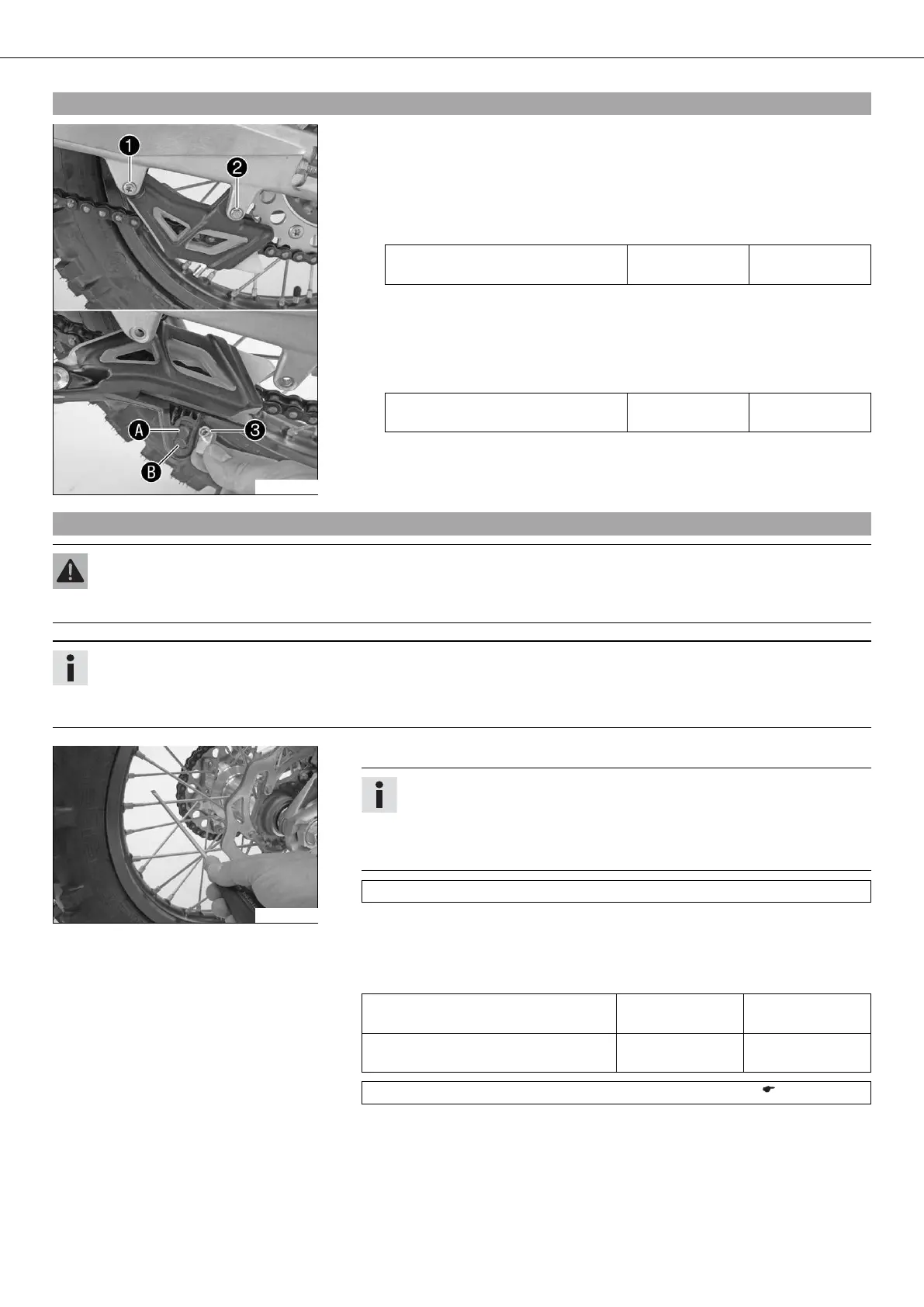

HUSABERG FE 570 EU - Adjusting the Chain Guide; Checking the Spoke Tension

10/REAR WHEEL 72
13.9Adjusting the chain guide
100390-10
– Remove screws  and . Take off the chain guide.
Condition
Number of teeth: ≤ 44 teeth
– Insert nut  in hole . Position the chain guide.
– Mount and tighten screws  and .
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Condition
Number of teeth: ≥ 45 teeth
– Insert nut  in hole . Position the chain guide.
– Mount and tighten screws  and .
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
13.10Checking the spoke tension
Warning
Danger of accidents Instable handling due to incorrect spoke tension.
– Ensure that the spoke tension is correct.
Info
A loose spoke can cause wheel imbalance, which leads to more loose spokes in a short time.
If the spokes are too tight, they can break due to local overload.
Check the spoke tension regularly, especially on a new motorcycle.
100418-10
– Quickly strike each spoke with the tip of a screwdriver.
Info
The tone frequency depends on the length of the spoke and the spoke diam-
eter.
If you hear different tone frequencies from different spokes of equal length
and diameter, this is an indication of different spoke tensions.
You should hear a high note.
» If the spoke tension varies:
– Correct the spoke tension.
– Check the spoke torque.
Guideline
Spoke nipple, front wheel M4.5 5… 6 Nm (3.7…
4.4 lbf ft)
Spoke nipple, rear wheel M5 5… 6 Nm (3.7…
4.4 lbf ft)
Torque wrench with various accessories in set (58429094000) ( p. 268)
