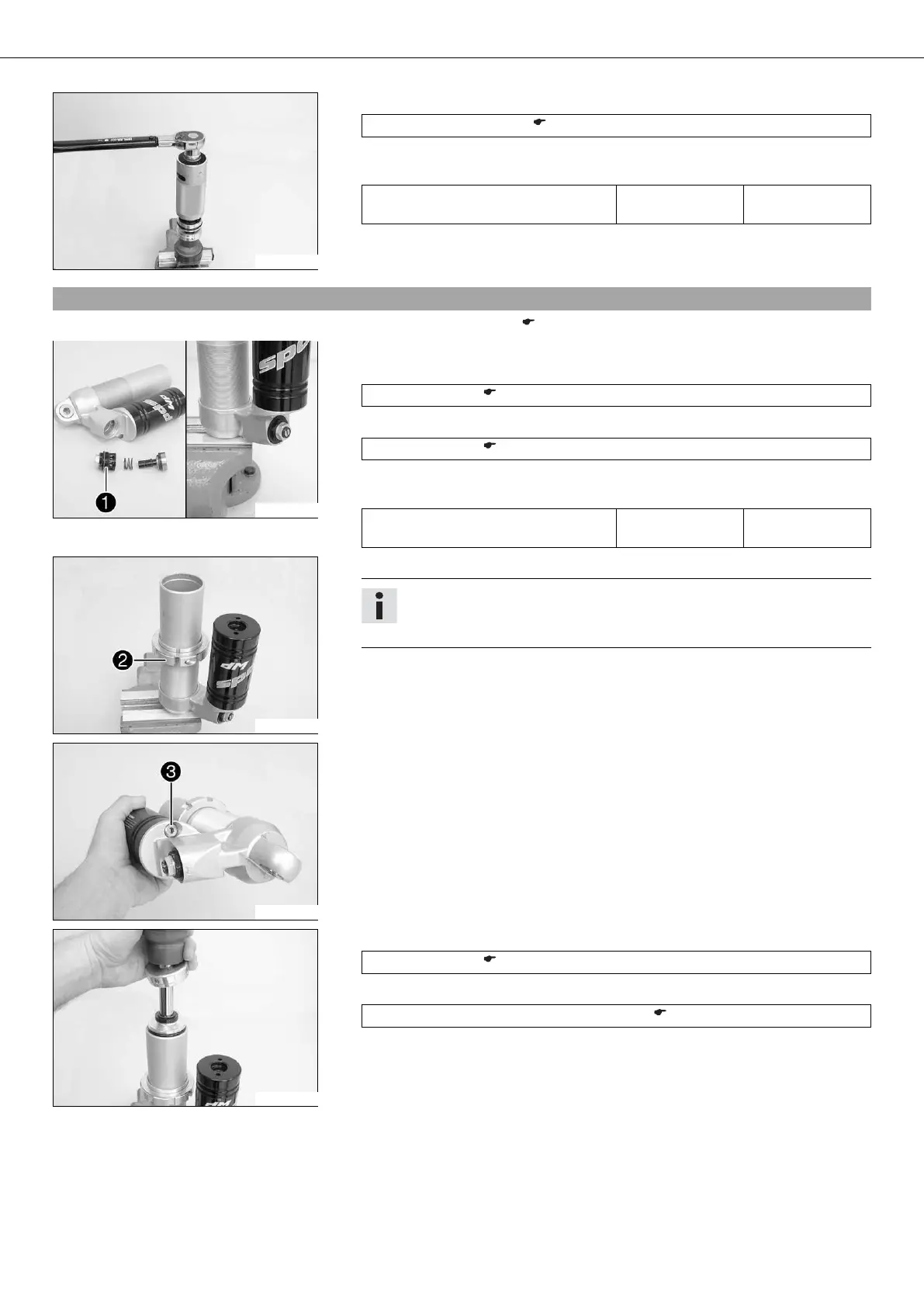

04/SHOCK ABSORBER, SWINGARM 45
200776-10
– Align both pistons using the special tool.
Centering sleeve (T1214) ( p. 275)
– Tighten the nut.
Guideline
Piston rod nut M16x1 40 Nm
(29.5 lbf ft)
– Remove the special tool.
7.24Assembling the shock absorber
– Assemble the piston rod. ( p. 43)
200774-10
– Slide the spring and piston onto the compression damping adjuster .
– Grease the O-ring.
Lubricant (T158) ( p. 265)
– Grease the threads.
Lubricant (T159) ( p. 266)
– Mount and tighten the compression damping adjuster.
Guideline
Compression damping adjuster M31x1 50 Nm
(36.9 lbf ft)
200759-11
– Install adjusting ring with intermediate washer.
Info
The adjusting ring cannot be mounted after the piston rod has been assem-
bled!
200775-10
– Mount screw but do not tighten yet.
200758-10
– Grease the O-ring of the seal ring retainer.
Lubricant (T158) ( p. 265)
– Fill the shock absorber tube approximately half way.
Shock absorber oil (SAE 2.5) (50180342S1) ( p. 264)
– Carefully mount the piston rod.
