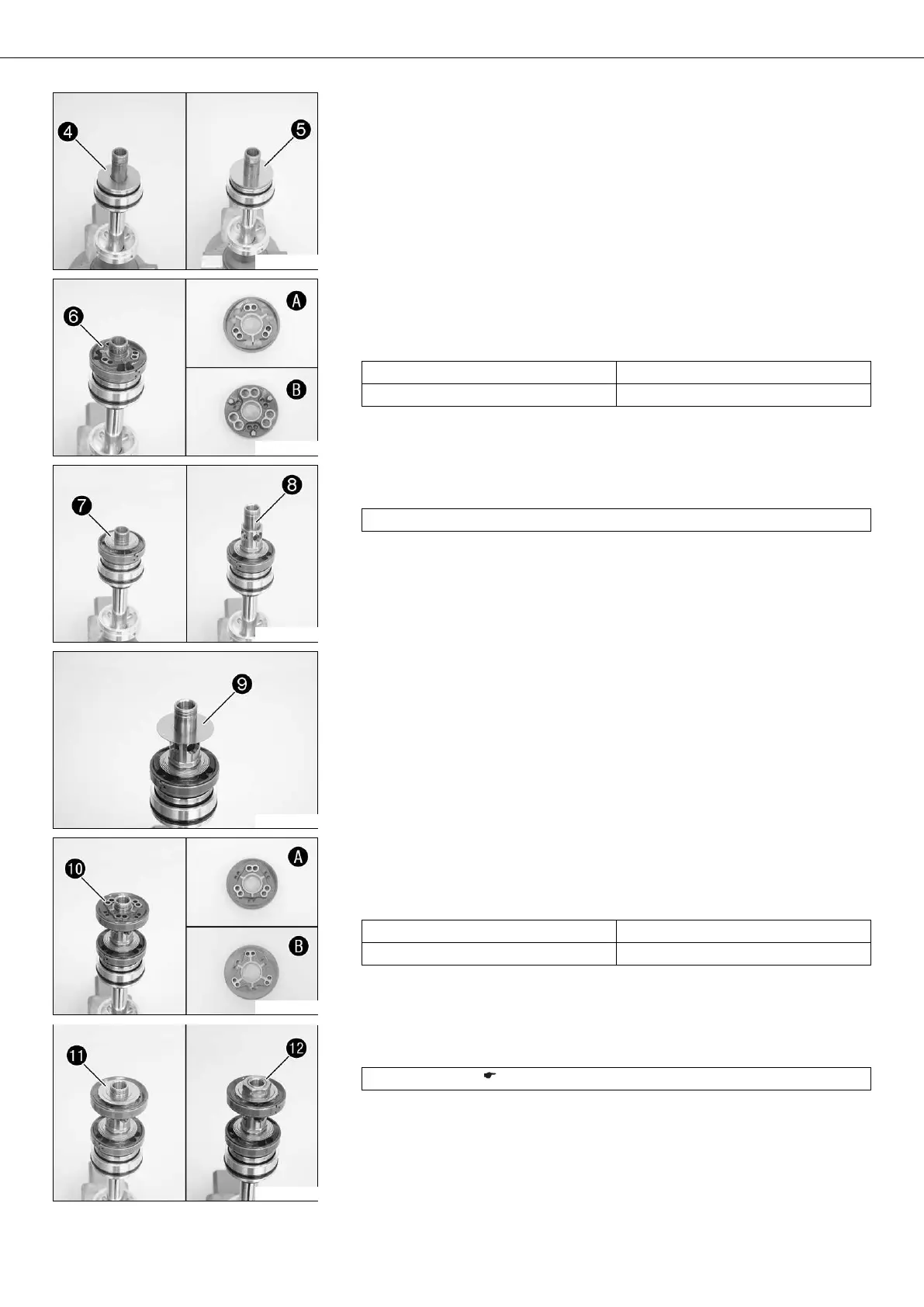

04/SHOCK ABSORBER, SWINGARM 44
200767-10
– Mount rebound damping washer .
– Mount compression damping shim stack with the smaller shims facing down-
ward.
200768-10
– Grind piston on both sides on a surface plate using 1200 grit sandpaper.
– Clean the piston.
– Mount the piston.
Guideline
View Top view of piston
View Bottom view of piston
200769-10
– Mount rebound damping shim stack with the smaller shims at the top.
– Apply thread locker to the threads of the piston rod.
Loctite
®
2701
– Screw on mount to the point where the piston can still be turned.
200770-10
– Mount compression damping shim stack with the smaller shims at the bottom.
200771-10
– Grind piston on both sides on a surface plate using 1200 grit sandpaper.
– Clean the piston.
– Mount the piston.
Guideline
View Top view of piston
View Bottom view of piston
200772-10
– Mount rebound damping shim stack with the smaller shims facing upwards.
– Grease the threads of the mount.
Lubricant (T152) ( p. 266)
– Mount nut but do not tighten yet.
