3. Operation
146
3.1.2 Basic Operation Methods
There are two types, Positioner Mode and Pulse Train Control Mode. Select the suitable one
considering the system function. (Types for 3000W and above should not be equipped with
Pulse Train Control Mode)
There are various types of actuators including slider, rod, rotary and gripper types. The same
operation control method is applicable unless particular descriptions are contained in this
manual.

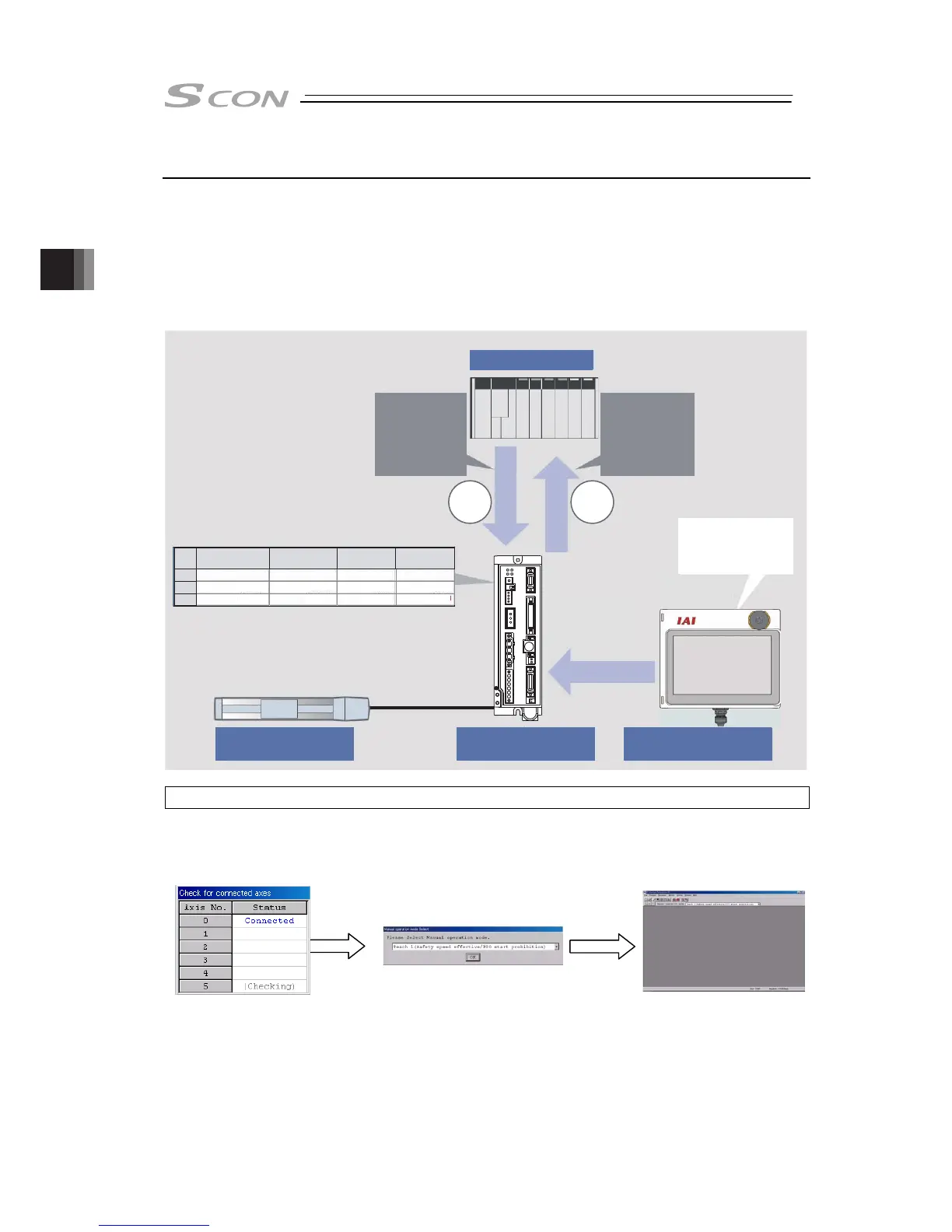

(1) Positioner Mode
Completion
Signal
Signal Signal
Edit Position
Table of
controller
Actuator
Controller
Teaching Pendant or
PC software
Position Number
+
Start Signal
PLC
Enter a data including
position, velocity,
acceleration or
deceleration, etc.
No.
[G]
0
1 100.00 0.30 0.30
2 200.00 0.30 0.30
100.00
200.00
Acceleration Deceleration Velocity
[mm] [mm/s] [G]
Position
●Operation Ready････Registration of Position Data (Example of Registration of PC Software)
• Procedure 1 : Turn ON the controller.
• Procedure 2 : Startup a teaching tool such as “PC Software”, and connect to the controller.
Automatically connected
to connectable controller
Press the OK
(Connection mode check)
Startup PC Software
To Next Page
