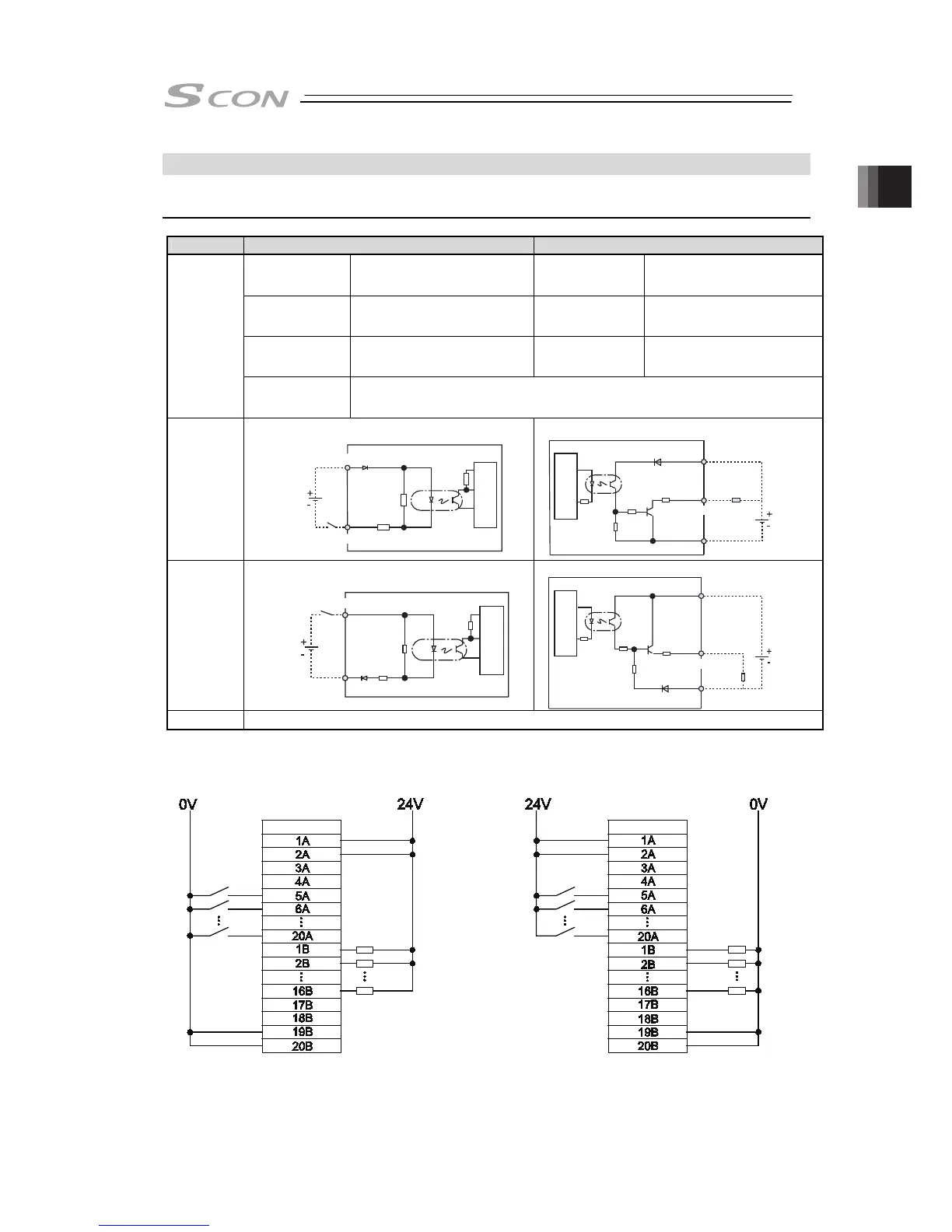

1.4 I/O Specifications
1.4.1 PIO Input and Output Interface
Input Section Output Section
Input Voltage
24V DC ±10%
Load Voltage 24V DC
Input Current 4mA 1circuit
Peak Load
Electric Current
50mA/1 point
ON/OFF Voltage
ON Voltage MIN. 18V DC
OFF Voltage MAX. 6V DC
Leakage Current MAX. 0.1mA/1point
Specification
Insulation Insulation with Photocoupler
NPN
P24
680Ω
5.6kΩ
Controller
Internal
Power Source
Input Terminal
External
Power
Supply
24V DC
±10%
10Ω
N
P24
Controller
Internal
Power Source
Output Terminal
External
Power
Supply
24V DC
±10%
Load
PNP
680Ω
5.6kΩ
N
Controller
Internal
Power Source
Input Terminal
External
Power
Supply
24V DC
±10%
Controller
P24
10Ω
N
Internal
Power Source
Output Terminal
External
Power
Supply
24V DC
±10%
Load
I/O Cable
Refer to 2.1.3 [5]
, 2.2.3 [5], 2.3.3 [5] and 2.4.3 [5] PIO Circuit
NPN Type PNP Type
Load Load
Pin No. Pin No.
