IAI SCON-CB-F User Manual

1. Specications Check
23
Chapter 1 Specifications Check

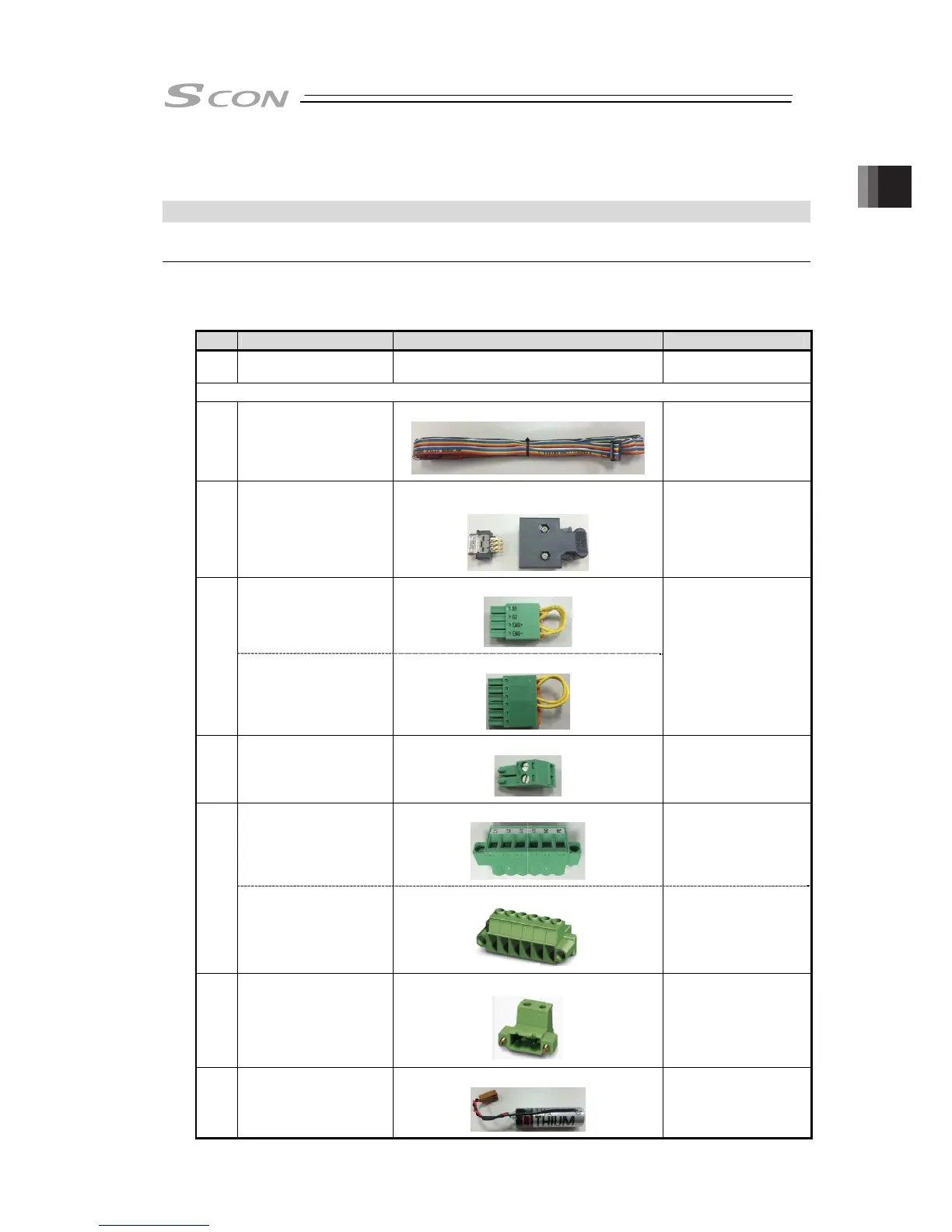

1.1 Product Check
1.1.1 Parts
This product is comprised of the following parts if it is of standard configuration.
If you find any fault in the contained model or any missing parts, contacts us or our distributer.
No. Part Name Model Remarks
1 Controller
Refer to “How to read the model plate”, “How to
read the model”.
Accessories
2 I/O Flat Cable
CB-PAC-PIO□□□
□□□shows the cable length
(Example)
□□□ : 020 = 2 [m]
3
Service Connector for Pulse
Train Control
Plug
: 10114-3000PE (Supplier : 3M)
Shell
: 10314-52F0-008 (Supplier : 3M)
Enclosed in PIO used
Applicable Cable Size
0.2mm
2
(AWG24)
System I/O Connector
(For ~ 750W Type)
FMC1.5/4-ST-3.5 (Supplier : Phoenix Contact)
4
System I/O Connector
(For 3000W ~ Type)
FMC1.5/6-ST-3.5 (Supplier : Phoenix Contact)
Applicable Cable Size
1.25 to 0.5mm
2
(AWG16 to 20)
5
Brake Power Supply
Connector
MC1.5/2-ST-3.5 (Supplier : Phoenix Contact)
Applicable Cable Size
1.25 to 0.5mm
2
(AWG16 to 20)
AC Power Supply
Connector
(For ~ 750W Type)
MSTB2.5/6-STF-5.08 (Supplier : Phoenix Contact)
Applicable Cable Size
Control : 0.75mm
2
(AWG18)
Motor: 2.0mm
2
(AWG14)
6
AC Power Supply
Connector
(For 3000W ~ Type)
PC5/6-STF-7.62 (Supplier : Phoenix Contact)
Applicable Cable Size
Control : 0.75mm
2
(AWG18)
Motor: 3.3mm
2
(AWG12)
7
External Regenerative
Resistor Unit Connecting
Connector
(For 3000W ~ Type)
GIC2, 5/2-STF-7.62 (Supplier : Phoenix Contact)
Applicable Cable Size
0.75mm
2
(AWG18)
8 Absolute Battery
AB-5
Enclosed for Absolute
Type
