2. Wiring
69
2.2 Positioner Mode (PIO Control) (Controller for Motors of 3000W and
above)
* Refer in Section 2.1 for the controller for motors of up to 750W.
2.2.1 Wiring Diagram (Connection of Devices)

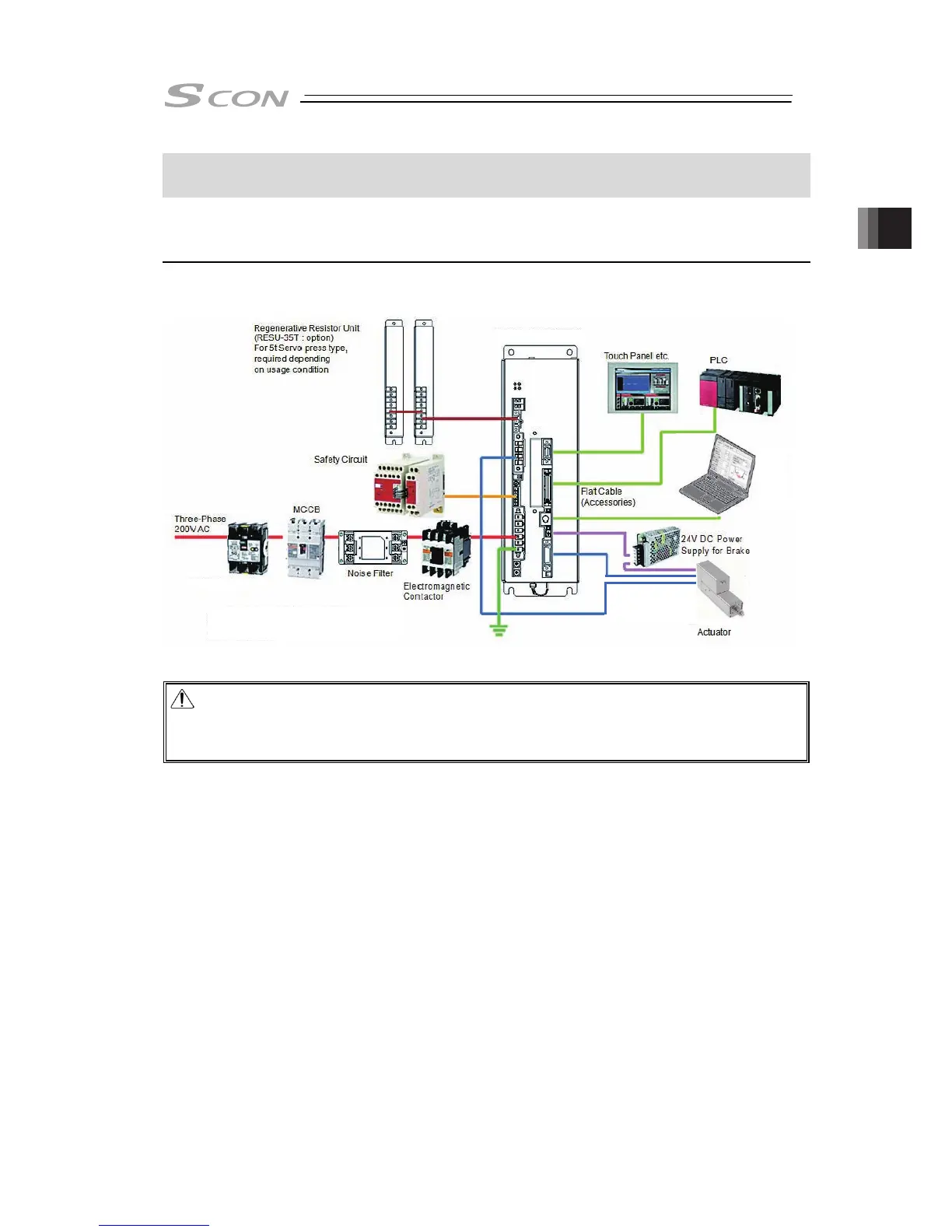

[1] Basic Wiring Diagram
Teaching Tool
Power Cutoff Breaker
As SCON-CGB for 3000 to 3300W does not have
the drive cutoff circuit, make sure to establish
cutoff externally.
Caution: Make sure to turn the power to the controller OFF when inserting or removing the
connector that connects the PC software or touch panel teaching to the controller.
Inserting or removing the connector while the power is turned ON causes a
controller failure.
