4.2.6 LED Display
Field Network LED Display
Item Contents
NS
(Upper)
Flashing in Green : Startup ~ Configuration Communication Completed
Illuminating in Green : In Regular Communication
Illuminating in Orange : Communication Error Occurred
MS
(Lower)
Illuminating in Green : In Normal Condition (Only Module)
Illuminating in Orange : Error Occurred (Only Module)

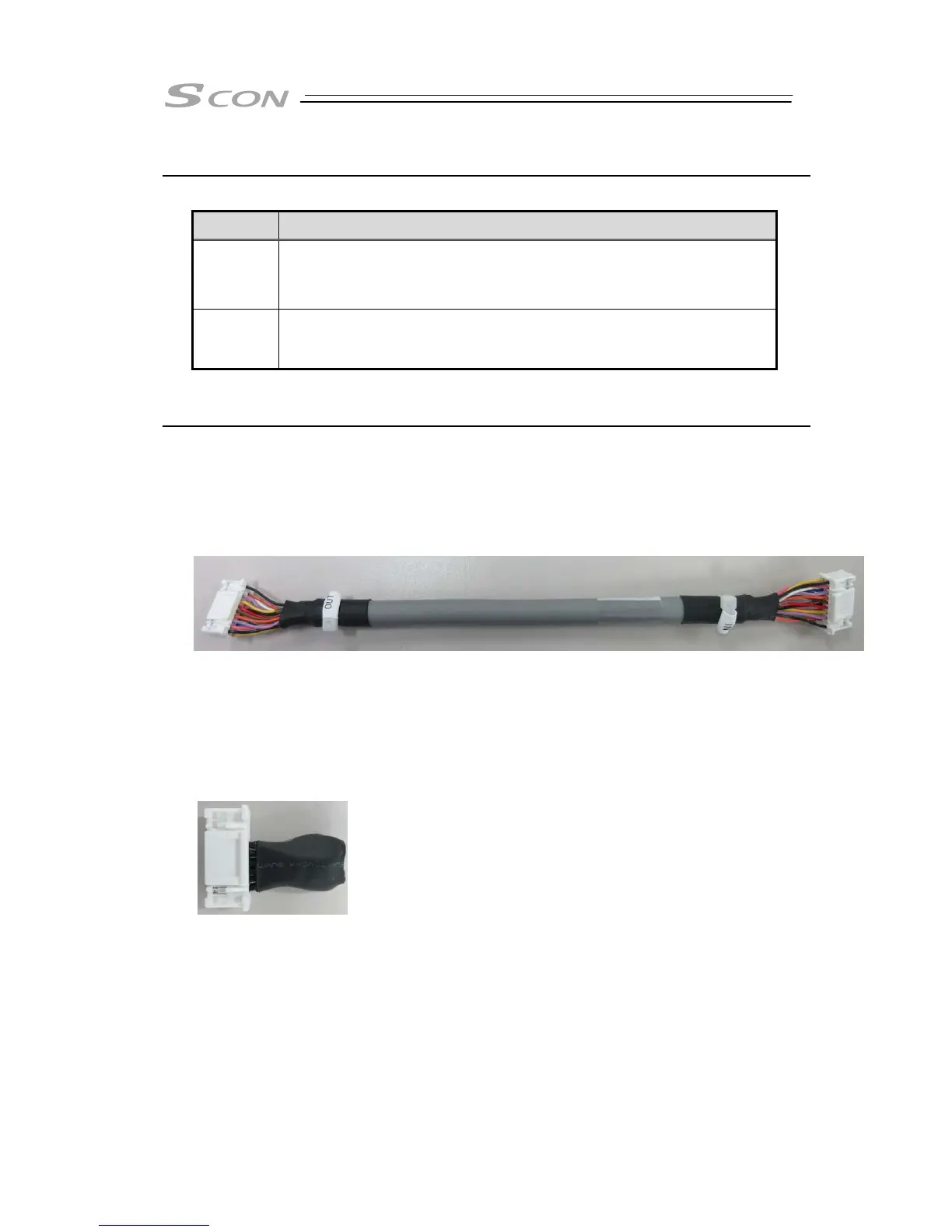

4.2.7 Related Parts
(1) Connection Cable (Between RCON and SCON, Between SCON and SCON)
Model Code : CB-RE-CTLâ–¡â–¡â–¡ (â–¡â–¡â–¡ expresses cable length: if 0.2m, expressed as 002)
Max. Cable Length : 3.0m * 3.0m max. between devices
Standard Cable Length : 0.2m * Equivalent to minimum distance between SCON and SCON
One piece of CB-RE-CTL002 enclosed in SCON-CB/CGB RCON Connection Type
(2) Terminal Connector
Terminal resistor connector connected on OUT side in SCON-CB/CGB Controller for the last
axis
Model Code : RCON-EXT-TR
One piece enclosed in RCON extension unit
