2.6 Wiring (Controller for Motors of 3000W and above)
* Refer in Section 2.5 for the controller for motors of up to 750W.
2.6.1 Wiring for Power Supply Circuit
2.6.1.1 Main Power Circuit (Power Supply Connector)
Power Supply Type Specifications Reference
Motor Power Supply Three-Phase 200 to 230V AC ±10% 50/60Hz
Control Power Supply Single-Phase 200 to 230V AC ±10% 50/60Hz
Supply the power stated below.
The load current will differ depending on the connected actuators and so on. Select and
prepare circuit breaker and leakage breaker suitable to the specifications. [Refer to Section
1.2.3 to 1.2.4] Also, prepare noise filters and clamp filters referring to the image below.

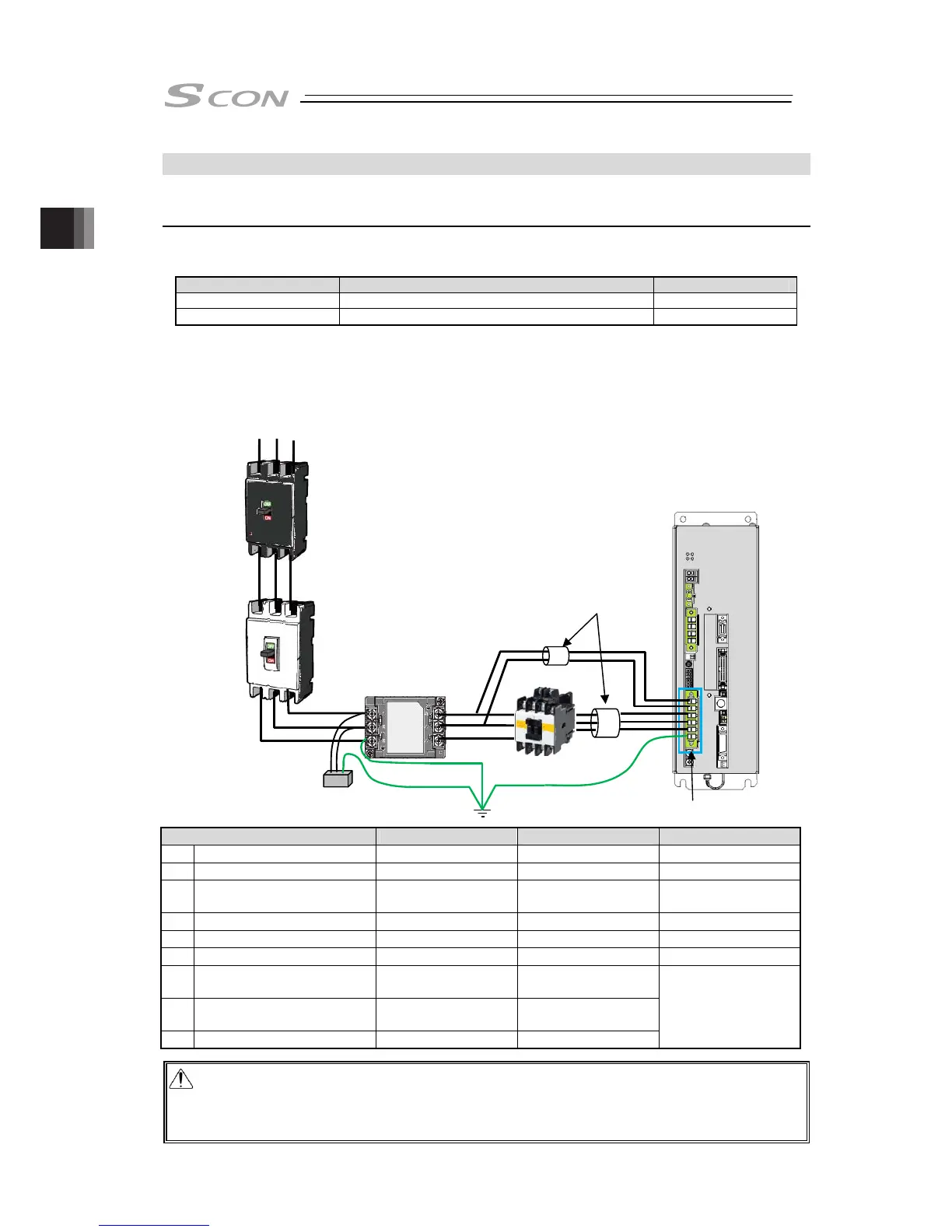

● Image of Wiring
200 to 230V AC
Parts Name Model Supplier Reference
1) Circuit Breaker For Three-Phase
2) Leakage Breaker Three-Phase, for Inverter
3) Surge Absorber
R•A•V-781BXZ-4
Okaya Electric
Industries Co., Ltd.
4) Noise Filter TAC-20-683 COSEL
5) Electromagnetic Contactor For Three-Phase
6) Clamp Filter ZCAT3035-1330 TDK
7)
Power Supply Cable
(for Control Power Supply)
AWG18
8)
Power Supply Cable
(for Motor Power Supply)
AWG12
9) Ground Cable AWG12
Rated Voltage at 600V
or more
Temperature Rating at
60degC or more
Caution: In case the components stated in the table above are not installed, this controller
may cause operation error due to noise influence. Apply these components
considering the noise environment and power supply circumstances. It is not
compulsory, but is recommended to install them.
Circuit
Breaker
Leakage
Breaker
Noise Filter
(Please prepare
separatel
y)
Surge
A
bsorbe
r
Power Supply Connector
Clamp Filter
Electromagnetic
Contacto
r
