1. Specications Check
35
1.5.2 Pulse Conveter : JM-08
The pulse converter converts feedback pulses in the differential mode into those in the open
collector mode.
Use this converter if the host controller sends input pulses in the open collector mode.
[Specification]
Item Specification
Input Power Supply
24V DC ±10% (MAX. 50mA)
Input Pulse Differential output equivalent to 26C32 (MAX. 10mA)
Input Frequency 500KHz or less
Output Pulse 24V DC O/C (Collector current MAX. 25mA)
Mass 10g or less (excluding cable connector)
Accessories
37104-3122-000FL (e-CON Connector) 2 Units
Applicable wire AWG No.24 to 26 (Less than 0.14 to 0.3mm
2
,
finished O.D. φ1.0 to 1.2mm)

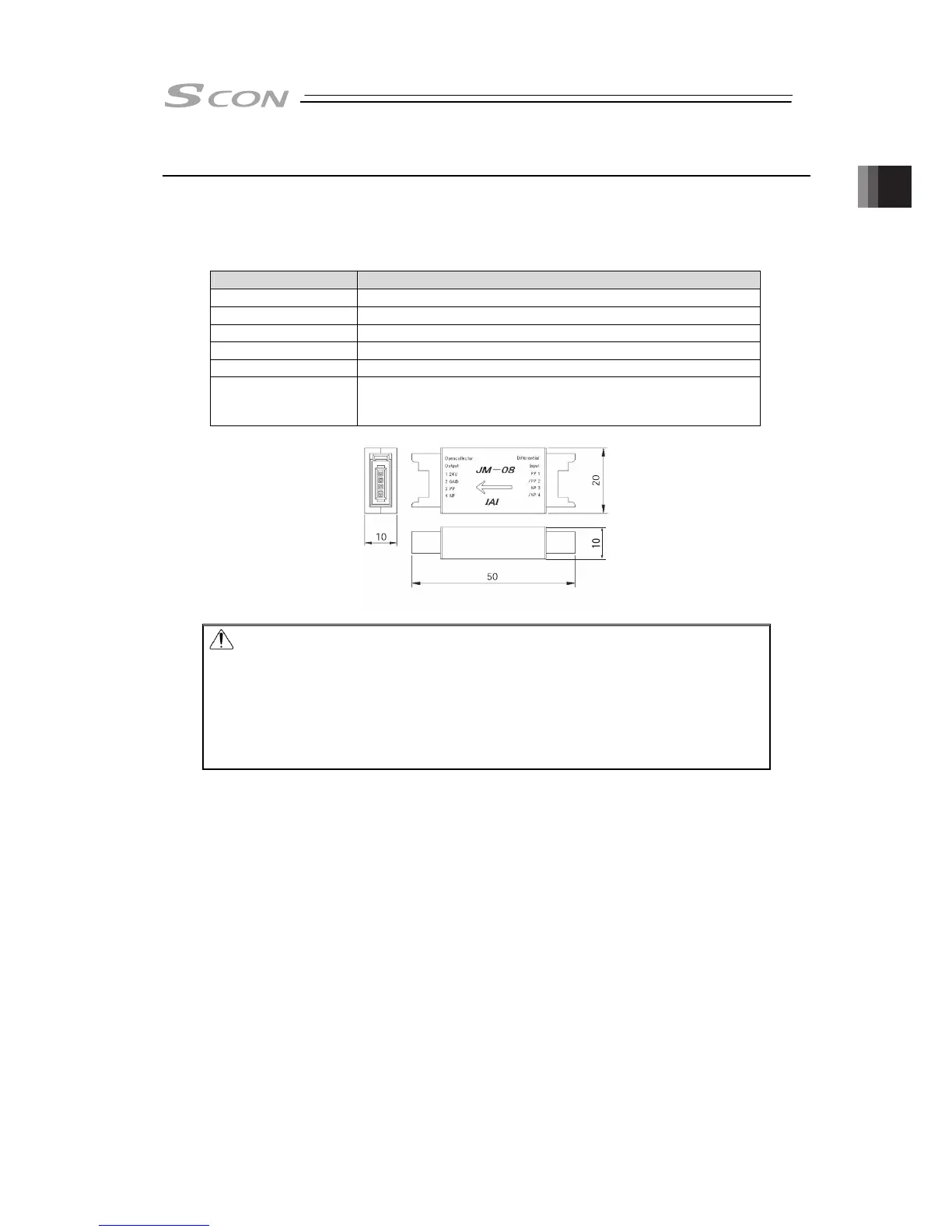

External Dimensions
Caution:
1) Use the pulse converter in the ambient temperature range between 0°C to 40°C.
2) The temperature increase of about 30°C occurs during operation. Accordingly,
neither install several pulse converters in close contact nor install them within a
duct. Do not install the pulse converter near other heating devices.
3) If more than one pulse converter is installed, set a pulse converter apart from
another by 10mm or more.
