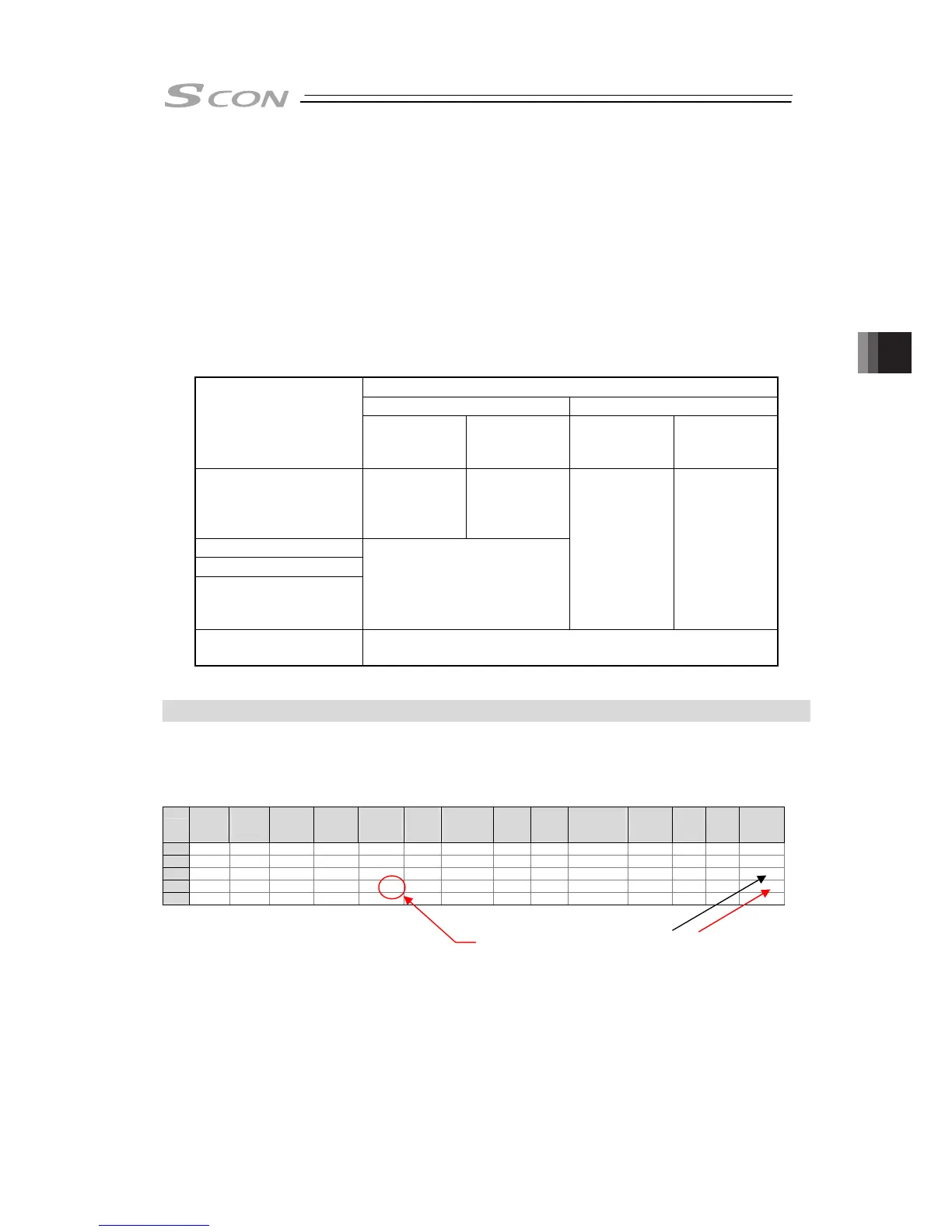

5. Vibration Suppress Control Function
265
[4] Default Vibration Suppress No. (Parameter No.109)
When a position is written into a position table not registered yet, the value set to this parameter
is automatically entered in the “Vibration suppress No.” field. To change the setting, edit the
position table later.
0: Normal position control (default)
1: Vibration suppress control parameter set 1
2: Vibration suppress control parameter set 2
3: Vibration suppress control parameter set 3
[5] Stop method at Servo OFF (Parameter No.110)
The table below shows the relationship between the values of Parameter No.110 and stop
commands.
5.3 Setting of Position Data
To make the anti-vibration control effective, set the parameter set number to be used in
Anti-Vibration Number Column in Position Data.
(Note) The vibration suppress control function cannot be used in pressing operation.
No.
Position
[mm]
Velocity
[mm/s]
Accele-
ration
[G]
Decele-
ration
[G]
Pressing
[%]
Thresh-
old
[%]
Positioning
width
[mm]
Zone+
[mm]
Zone-
[mm]
Acceleration/
Deceleration
mode
Incre-
mental
Gain
set
Stop
mode
Vibration
suppress
No.
0
1 0.00 50.00 0.01 0.01 0 0 0.10 0.00 0.00 0 0 0 0 0
2 50.00 50.00 0.01 0.01 0 0 0.10 0.00 0.00 0 0 0 0 1
3 50.00 50.00 0.01 0.01 50 0 0.10 0.00 0.00 0 0 0 0 3
4
Stop Process
0 1
Stop Command
Vibration
suppress
control
Normal
positioning
control
Vibration
suppress
control
Normal
positioning
control
Pause
Deceleration
by vibration
suppress and
stop
Normal
deceleration
and stop
Servo OFF
Emergency Stop
Error
(Operation-cancellation
level alarms)
Sudden stop by
emergency stop torque
Deceleration
by vibration
suppress and
stop
Normal
deceleration
and stop
Error
(Cold start)
Sudden stop due to emergency stop torque
Set natural frequency 1 (valid)
Set natural frequency 3 (It cannot be in common
with Error: 0A2 Position Data Error Pressing
Operation.)
