3.2 Operation in Positioner Mode

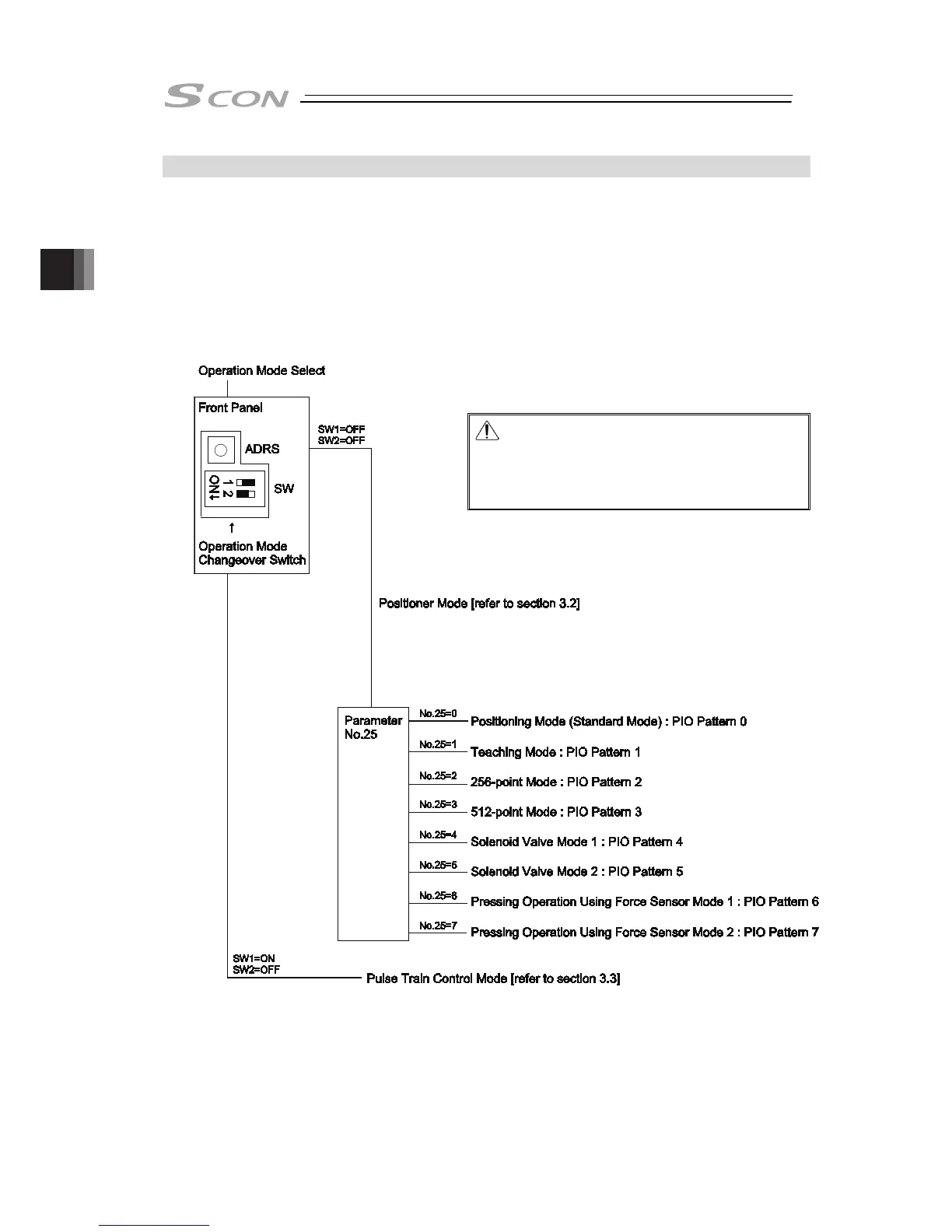

The front of controller switch has a function to switch over the mode between Positioner Mode
and Pulse Train Control Mode. In the positioner mode, the following 8 types of PIO pattern can
be selected with a proper parameter. (Pressing Operation Using Force Sensor Mode 1/2
cannot be used in types for 3000W and above.)
This Operational PIO Pattern cannot be switched over after the system is finished to be
established or during the actuator operation. Choose the optimum pattern beforehand
considering the system operation specifications and prepare the cables and sequence design.
Caution: SW2 is for manufacturer’s tuning use
only. Keep it OFF while in use.
Using the unit with this switch being
ON may cause the controller to
malfunction or error operation.
