IAI SCON-CB-F User Manual

2. Wiring
88
2.3 Pulse Train Control Mode (Only for Controller for Motors of up to
750W)

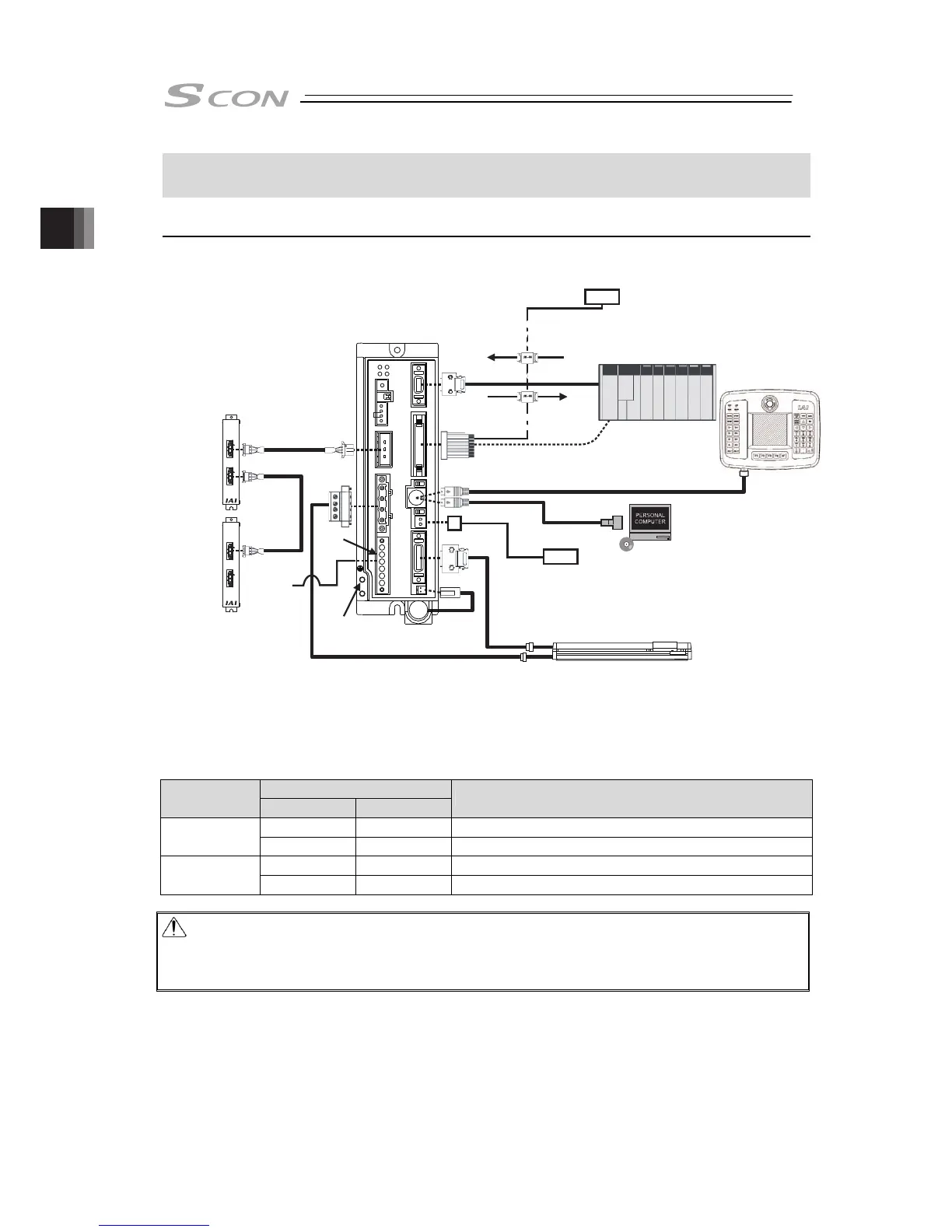

2.3.1 Wiring Diagram (Connection of Construction Devices)
[1] Basic Wiring Diagram
Actuator
Teaching pendant (option)
PLC
(Note1)
Regenerative Resistor Unit
(REU-1 [for secondary unit] : option)
Power
Supply
Connector
Flat Cable
(Accessories)
CB-SC-REU010
CB-ST-REU010
FG Connection
Terminal
Regenerative Resistor Unit
(REU-2 : option)
Required depending
on usage condition
[Refer to 1.5.3 Regenerative Unit]
Note 1 Please prepare separately.
JM-08 (option)
Necessary when signal is desired
to be received with open collector output
JM-08 (option)
Necessary when signal is desired
to be received with open collector output
AK-04 (option)
Necessary when PLC is
open collector output
AK-04 (option)
Necessary when PLC is
open collector output
24V DC
24V DC
Cable
(CB-SC-PIOS□□□ : Option)
Cable
(CB-SC-PIOS□□□ : Option)
Power Supply for Brake
It is necessary when actuator with brake
PC Software (option)
(Note1)
Power Source
Single Phase
100V AC or
200V AC
Power Source for
I/O Control
(Note1)
If using RCS2-RA13R or NS Type for the actuator and the option shown in the table is applied, the
wiring between the actuator and the controller will differ from the basic wiring layout. Shown in the
table is the relation of the option and wiring layout. Loadcell cannot be equipped in pulse train
control.
○ : Equipped × : Not Equipped
Option
Model Name
Brake Loadcell
Wiring Layout between Actuator and Controller
○ × 1)
RCS2-RA13R
× × Basic Wiring Diagram
○ - 1)
NS
× - Basic Wiring Diagram
Caution: Make sure to turn the power to the controller OFF when inserting or removing the
connector that connects the PC software or touch panel teaching.
Inserting or removing the connector while the power is turned ON causes a controller
failure.
