2. Wiring
89
1)

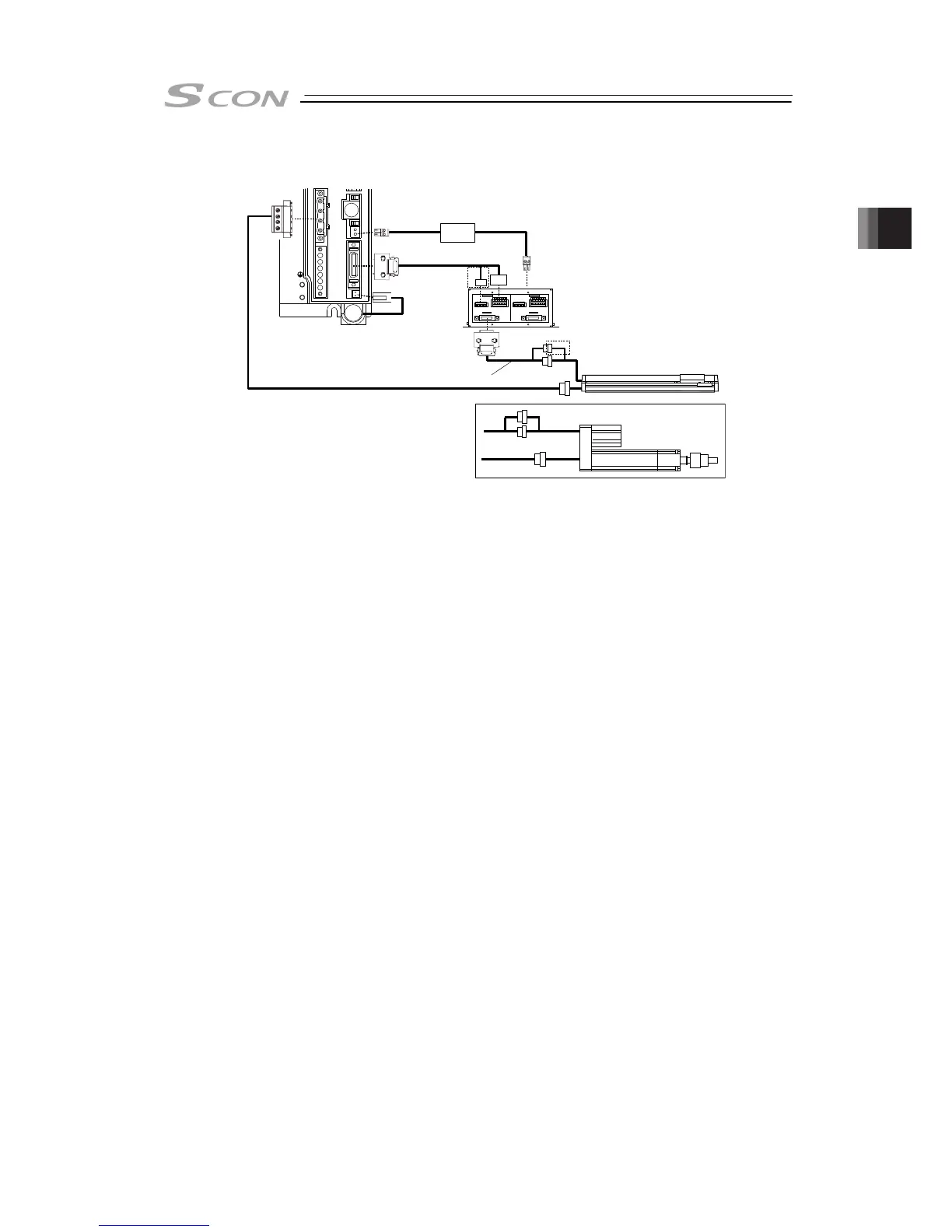

RCS2-RA13R Equipped with Brake, with no Loadcell, or NS
Actu
ators with Bra
ke
24V DC
Absolute Battery
(for
Absolute Type)
Power Supply for Brake
• NS
Actuators (with Brake)
For LS (option)
Connect to back side
For LS (option)
Brake Box
CB-RCS2-PLA010
(enclosed to Brake Box)
RCS2-RA13R
(with Brake)
2.3.1
