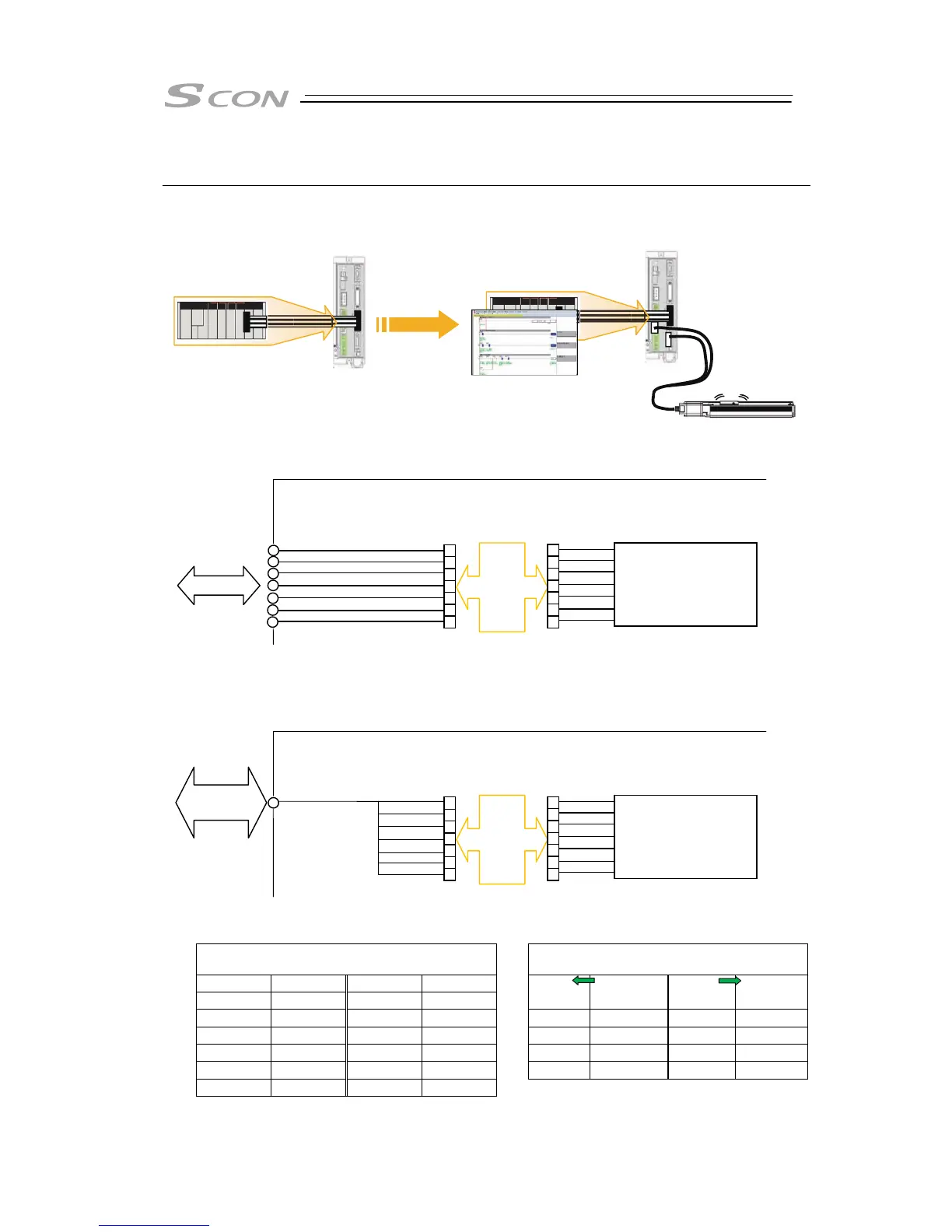

■About SCON-LC Type■ (Only for Types up to 750W)
LC Type is equipped with a built-in PLC feature, and is capable to control SCON with ladder
programs instead of the host PLC if the programs are in small scale.
● PIO Type
Each signal of PIO is general input and output. Use it with connecting to internal relay, which each
IO pattern is assigned to, with the ladder program if necessary.
SCON-LC/LCG
● Fieldbus Type
Each bit in fieldbus communication is general input and output. Use it with connecting to internal
relay, which each IO pattern is assigned to, with the ladder program if necessary.
SCON-LC/LCG
For fieldbus communication, the data volume transferred in one time of communication is restricted.
For CC-Link
(1 station 1 time :
Remote device station)
For those other than CC-Link
(Input 8 bytes, output 8 bytes)
Master SCON Master SCON
RX00~0F Not to Use RY00~0F Not to Use
PLC
(Word)
SCON
PLC
(Word)
SCON
RX10~1F Not to Use RY10~1F Not to Use Input 0 Y000~00F Output 0 X000~00F
RWr0 Y000~00F RWw0 X000~00F Input 1 Y010~01F Output 1 X010~01F
RWr1 Y010~01F RWw1 X010~01F Input 2 Y020~02F Output 2 X020~02F
RWr2 Y020~02F RWw2 X020~02F Input 3 Y030~03F Output 3 X030~03F
RWr3 Y030~03F RWw3 X030~03F
CB Types are
equipped with PLC
feature
Control available with
ladder programs
instead of host PLC
*
* Programs in small
scale
PIO Signals
I/O Signals
(PIO Connector)
Input (X),
Output (Y)
memory
Internal process along
IO pattern
Internal relay (M)
Connect
to
Ladder
Fieldbus board
Input (X),
Output (Y)
memory
Internal process along
IO pattern
Internal relay (M)
Connect
to
Ladder
Fieldbus
Signals
