IAI SCON-CB-F User Manual

2. Wiring
75

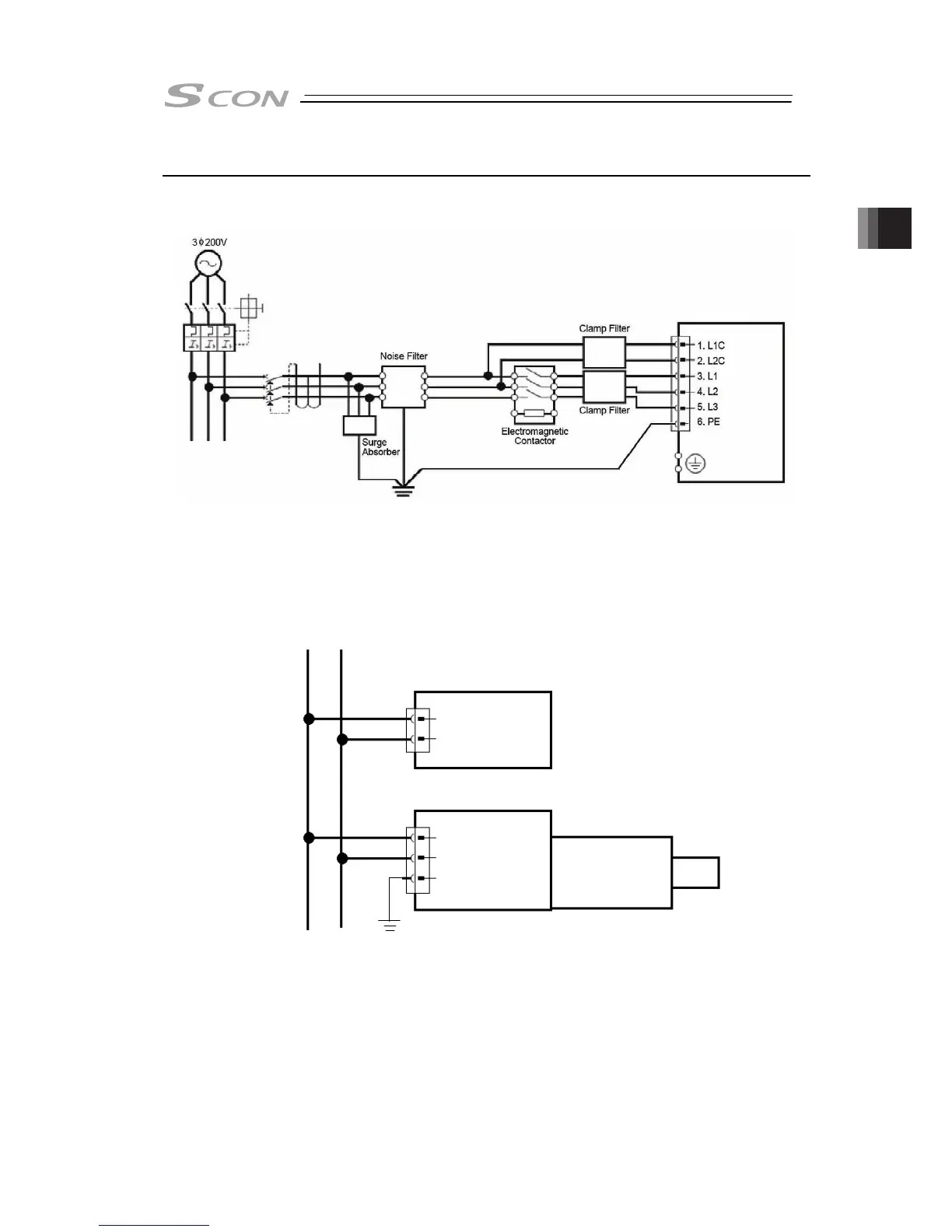

2.2.3 Wiring
[1] Main Power Circuit
SCON
Circuit Breaker
Leakage Breaker
Power Supply Connector
[2] Brake Power Supply Circuit
When using an actuator equipped with a brake, supply 24V DC to the controller and the
actuator.
Brake Power Supply Connector Type (Cable Side)
• SCON : MC1.5/2-ST-3.5 (Phoenix Contact)
• RCS3-RA15/RA20 : MC1.5/3-STF-3.5 (Phoenix Contact)
DC24V 0V
1. BK+
2. BK-
Brake Power Supply Connector
RCS3-RA15 or RA20
3. BK+
2. BK-
1. FG
Brake Power Supply Connector
SCON
