2. Wiring
131
● Wiring Method
Connect the wiring of power supply to the enclosed connector (Model code: PC5/6-STF-7,62:
Phoenix Contact).

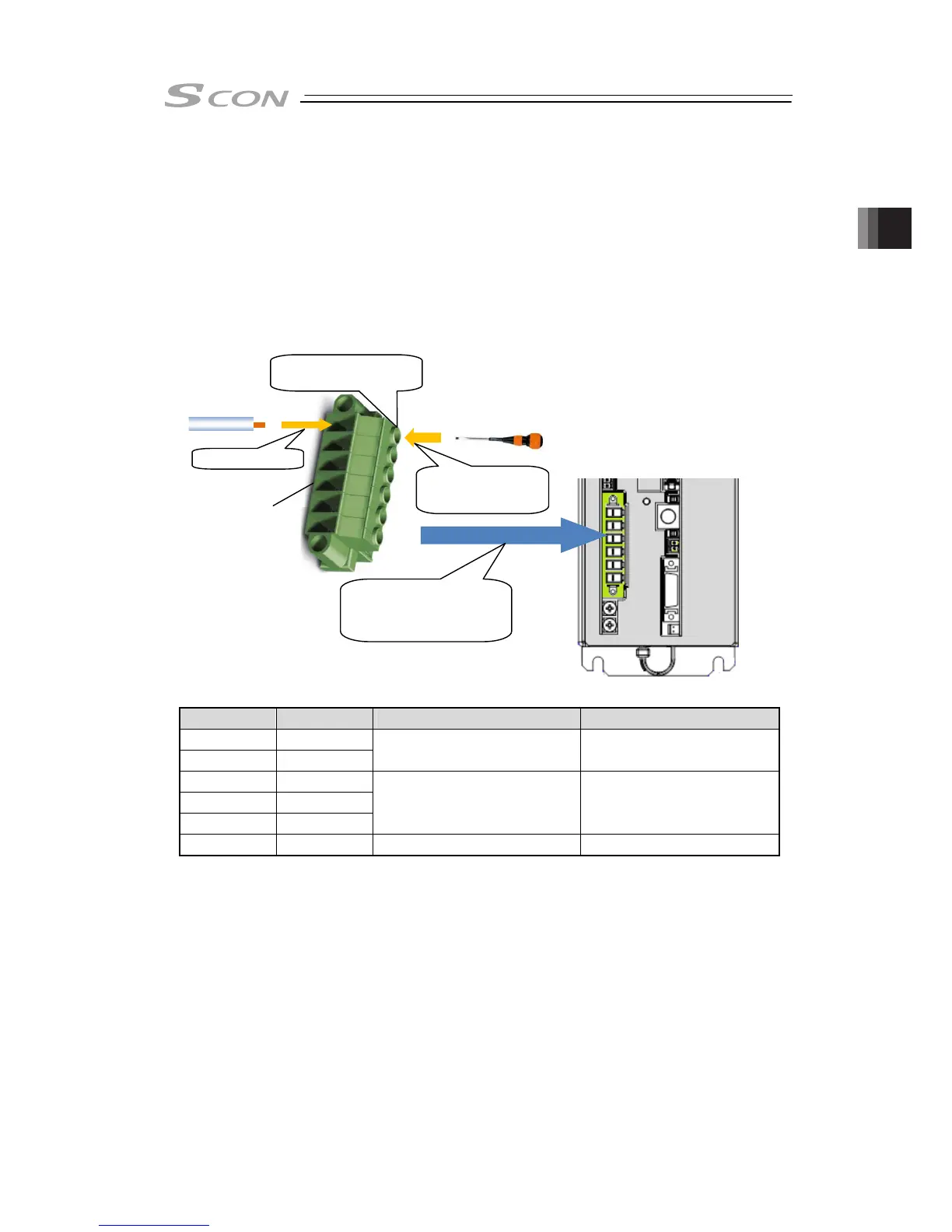

See below for how to lay out the power supply wires.
1) Loosen the terminal screw with using such as a slotted screwdriver to open up the inlet.
2) Reveal the sheath for 10mm on the cable that satisfies the cable diameter complies the
specification shown in the table below and put it in the inlet.
3) Tighten the terminal screw with using such as a slotted screwdriver. The inlet closes and
affixes the wire.
4) Connect all the wires in the same manner and insert the enclosed connector to the power
connector.
Power supply connector (PWR)
Pin No. Signal name Items Applicable cable diameter
1 L1C
2 L2C
Control power AC input 0.75mm
2
(AWG18)
3 L1
4 L2
5 L3
Motor power AC input 3.3mm
2
(AWG12)
6 PE Protective grounding wire 3.3mm
2
(AWG12)
2.6.1
1) Loosen the screw with
a slotted screwdriver
2) Insert wire
3) Tighten the screw
with a slotted
screwdriver
Wire Inlet
4) Plug in the enclosed
connector to the power
connector on the controller
side
To Next Page
