IAI SCON-CB-F User Manual

8. Parameter
288

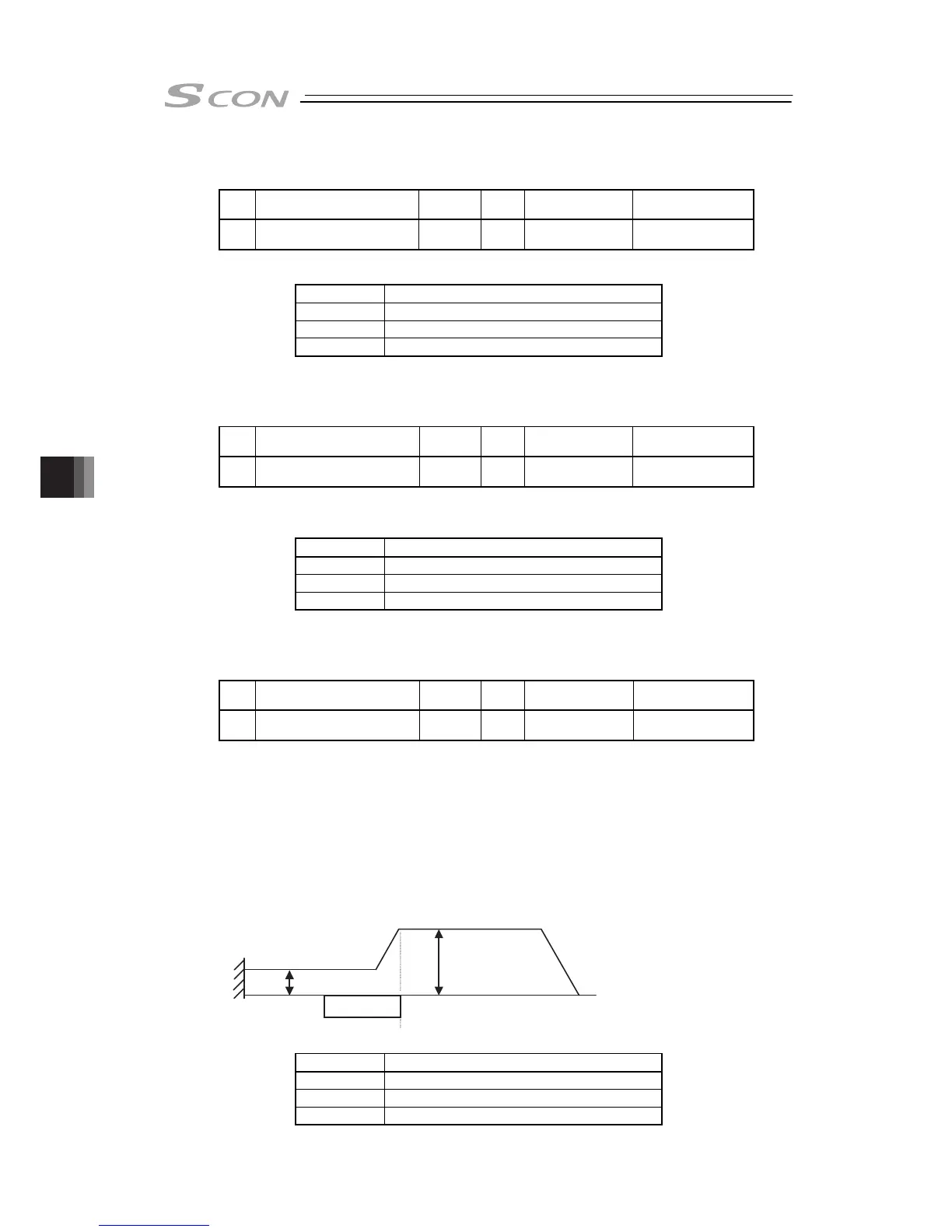

[14] Home position check sensor input polarity (Parameter No.18)
No. Name Symbol Unit Input Range
Default factory
setting
18
Home position check sensor
input polarity
AIOF – 0 to 2
In accordance with
actuator
The home sensor is an option.
Set Value Description
0 Standard specification (sensor not used)
1 Input is a contact
2 Input is b contact
[15] Overrun sensor input polarity (Parameter No.19)
No. Name Symbol Unit Input Range
Default factory
setting
19 Overrun sensor input polarity AIOF – 0 to 2
In accordance with
actuator
This parameter is set properly prior to the shipment according to the specification of the
actuator.
Set Value Description
0 Standard specification without sensor
1 Over travel detection sensor input is a contact
2 Over travel detection sensor input is b contact
[16] Creep sensor input polarity (Parameter No.20)
No. Name Symbol Unit Input Range
Default factory
setting
20 Creep sensor input polarity AIOF – 0 to 2
In accordance with
actuator
Even though the movement speed for most of the actuators at the home return is 20mm/s,
there are some actuators with other settings. Refer to the instruction manual of each actuator.
Even though the actuator with long stroke requires time to home-return if the power is shut at a
point far from the home position, the required time can be improved with using the creep
sensor.
The actuator moves at the creep speed (100mm/s or less) until a creep sensor signal is
detected, upon which the actuator will decelerate to the home return speed.
Creep sensor is an option for the line axis type.
This parameter is set properly prior to the shipment according to the specification of the
actuator.
Set Value Description
0 Not to use
1 Input is a contact
2 Input is b contact
Home-return speed
Creep Sensor
Creep Speed
Power is turned on here.
Mechanical end
Actuator decelerates when creep sensor signal is detected
