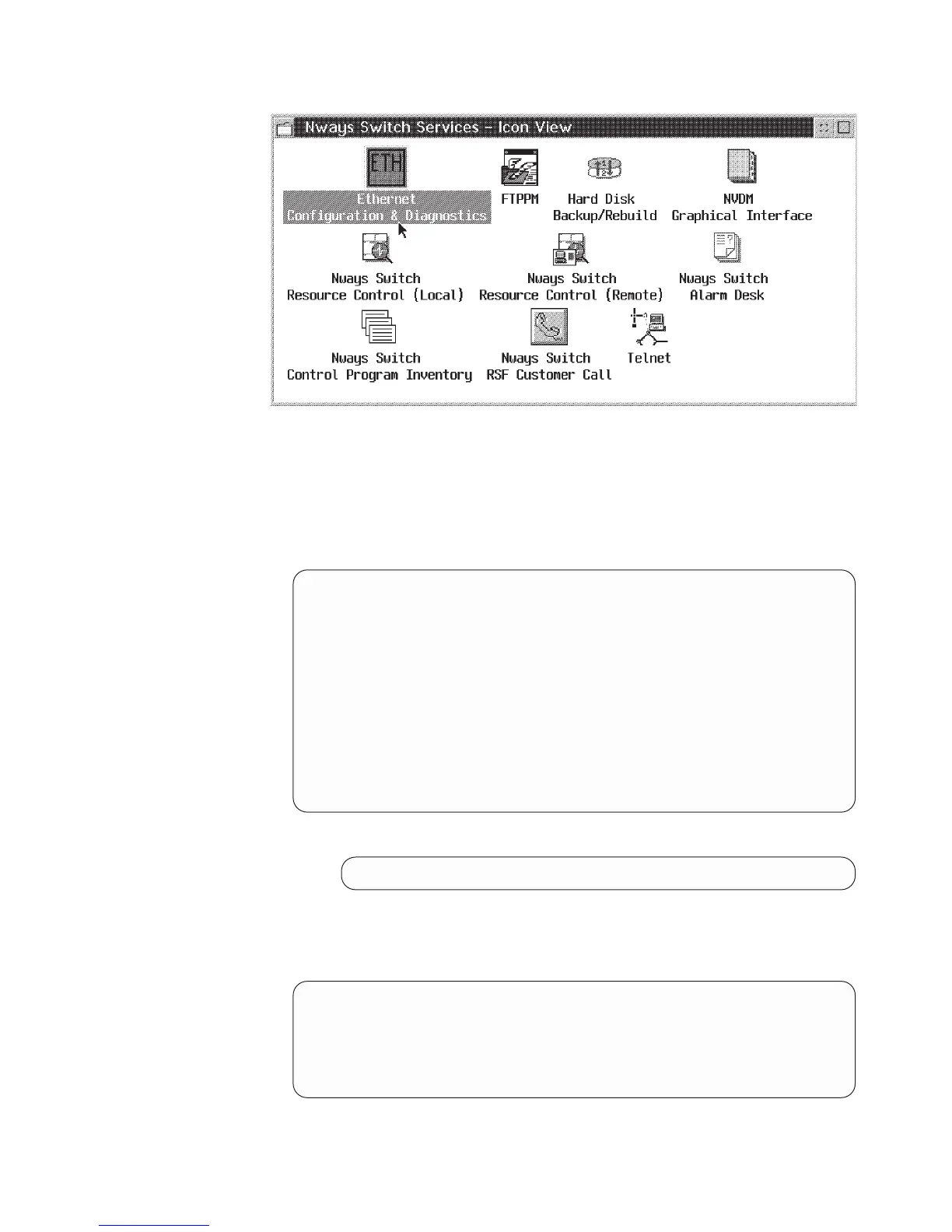

– In the Ethernet Configuration & Diagnostics window, select the Display /
Change Adapter Configuration option using the ↑↓ keys, then press the Enter
key.
– In the SELECT ADAPTER TO BE ACCESSED window, select the I/O port using
the Tab key, and then press the Enter key.
– The following window appears. Modify your parameters to match those shown in
the following screen.
DISPLAY / CHANGE ADAPTER CONFIGURATION
Novell Configuration None
I/O Bus Address 0X300 ---> 0X300
Interrupt Assignment IRQ5 ---> IRQ5
Physical media Thin Ethernet ---> Thin Ethernet (Note)
Adapter Architecture Shared Memory ---> Shared Memory
Boot Prom No boot Prom
Advanced Configuration Options
Temporarily change Configuration
Save Configuration
Return to previous Menu
-------------------------------------------------------------------------
Make selection using arrows keys and <enter>
Scroll through option using <TAB>
Note: Depending of your cabling, you might have the following option:
Physical media TPI(10BaseT) ---> TPI (10baseT)
– Once the parameters have been changed, select the Advanced Configuration
Options, then press the Enter key.
– You obtain the following window. Modify your parameters to match those shown
in the following screen.
ADVANCED CONFIGURATION OPTIONS
CHRDY generated as fast
TPI Link integrity checking enabled
No BOOT ROM
Return to previous menu
– Once the parameters have been changed, select the Return to previous menu
option, then press the Enter key.
