3. Reinstall the front cover:
Note: Before installing the front cover, verify that the side cover is installed
correctly. If the side cover is not properly installed, the front cover will
not align correctly when you attempt to install it.

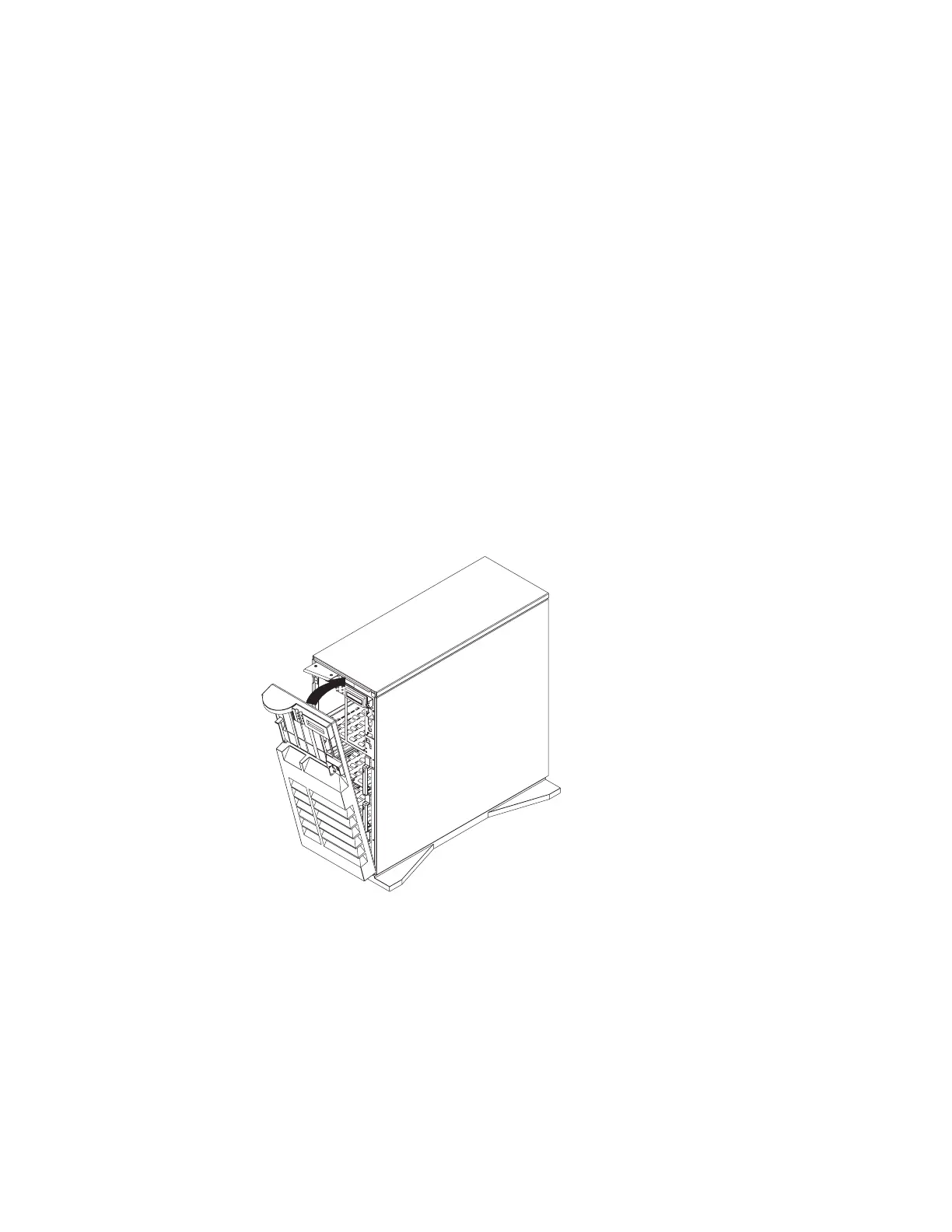

a. Align the bottom of the front cover with the bottom of the system.
b. Fit the front cover's bottom hooks into the grooves located on the bottom of
the system.
c. Pivot the front cover upward and press the top of the cover into the top of
the system until they snap together.
d. Lock the front cover.
6-12 Service Guide
