Ice vulcan - Software Configuration

Rev AA
Working with Master/Slave 8-4
ICE Vulcan Service Manual

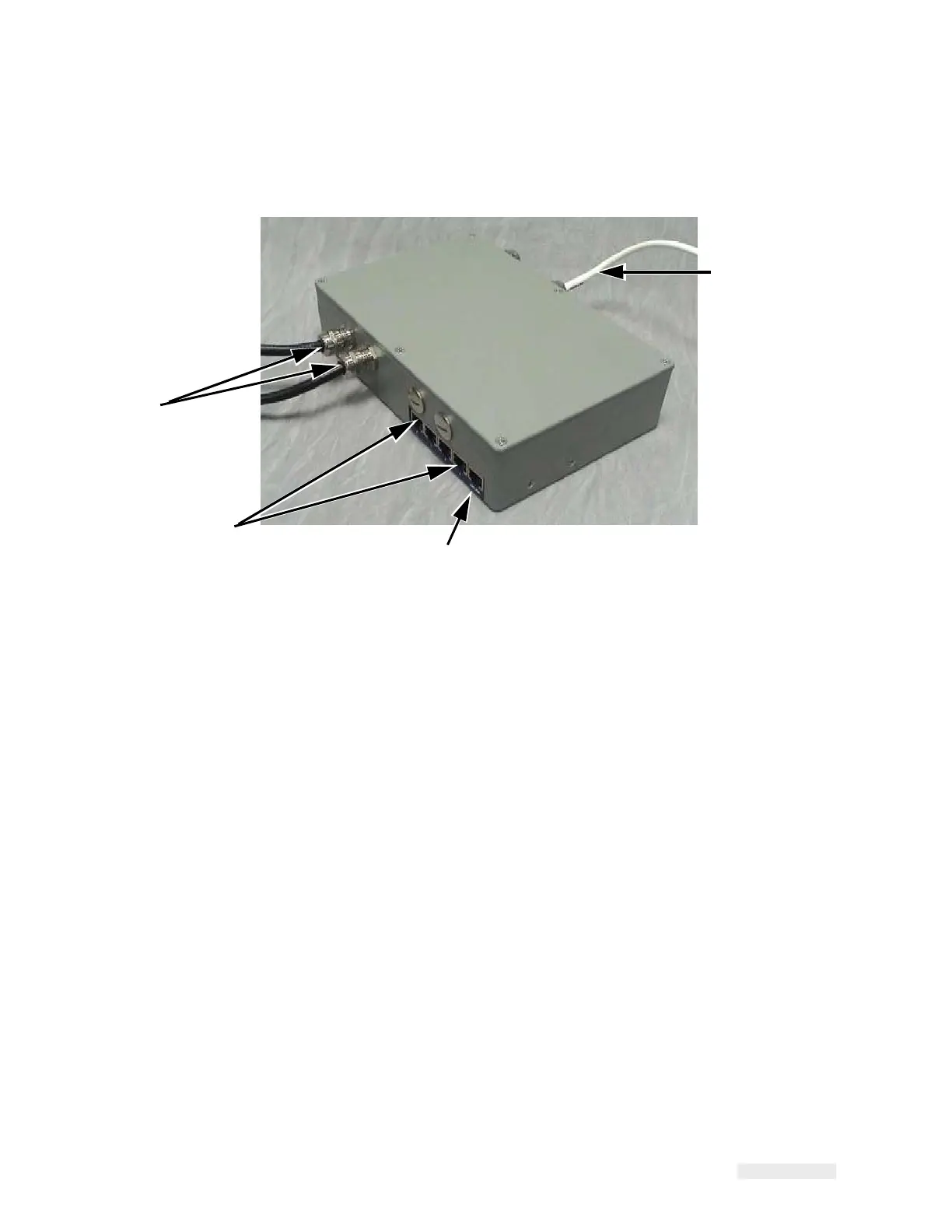

Figure 8-1 shows a two printer connection box, indicating the five port connections for the
network switch, integral I/O cables (2 numbers) and encoder lead.
1
4
3
2
1. Encoder Lead
2. Network Connector
3. Ethernet Ports
4. Integral I/O Cables
Figure 8-1: Printer Connection Box
Software Configuration
To configure Master/Slave mode, CLARiTY Configuration Manager is required.
The LPAs may be configured using a serial cable or a network connection. However, this
manual assumes that a standard Null Modem cable (part number - 400720) is being used.
