Installing the Label Applicator 4-16
ICE Vulcan Service Manual
Cable Connections
20 Make the cable connections as shown in Figure 4-13 and Figure
4-14 on page 4-16.
4
3
2 1

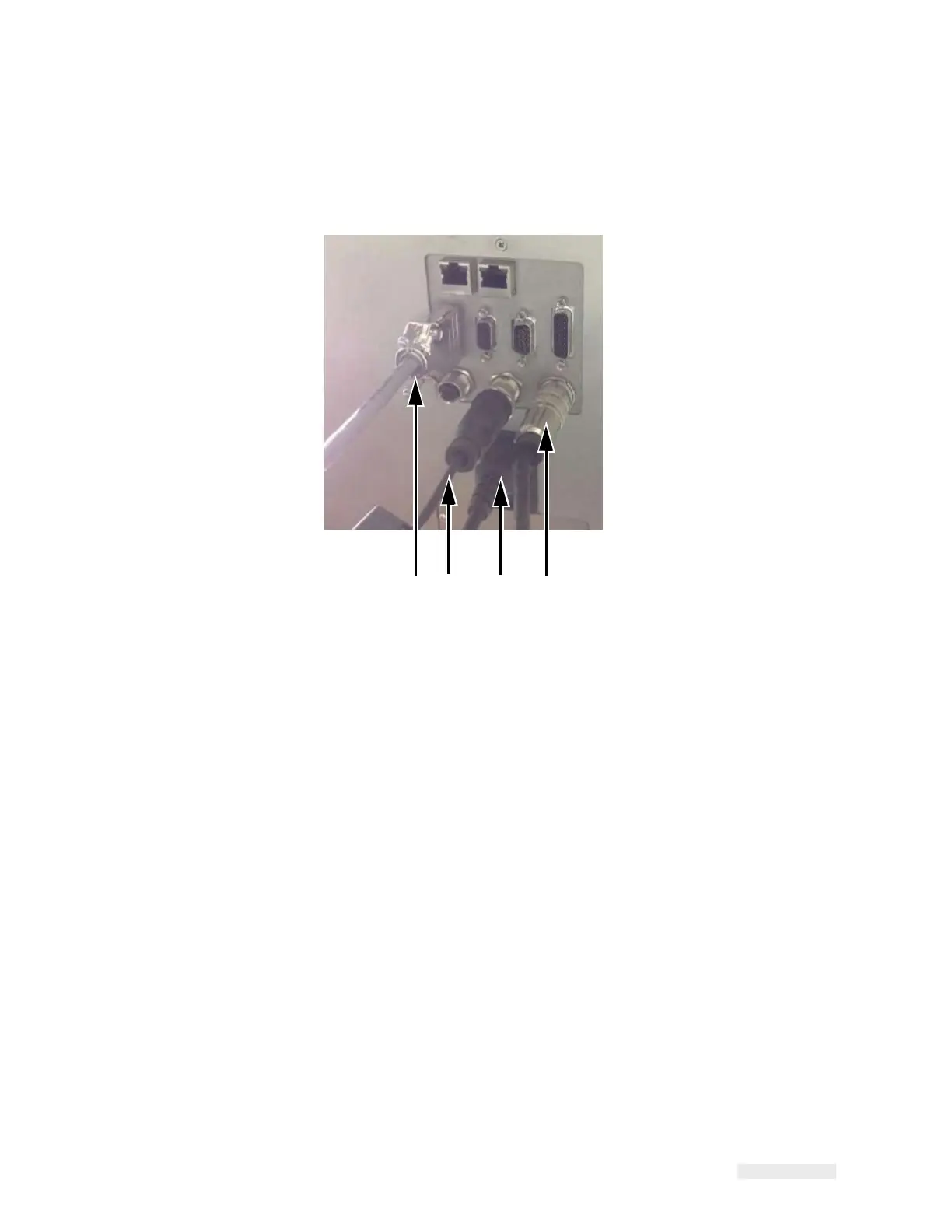

1. Beacon
2. Mains Power Lead
3. Product Detect 2
4. CLARiTY Display
Figure 4-13: Cable Connections
