Installing the Label Applicator 4-15
ICE Vulcan Service Manual
Instating the Product Detector
18
Mount the product detector to the conveyor, upstream of
the label
applicator.
Note: Position the product detector as needed for the application and
the
production line.
Product
Detector

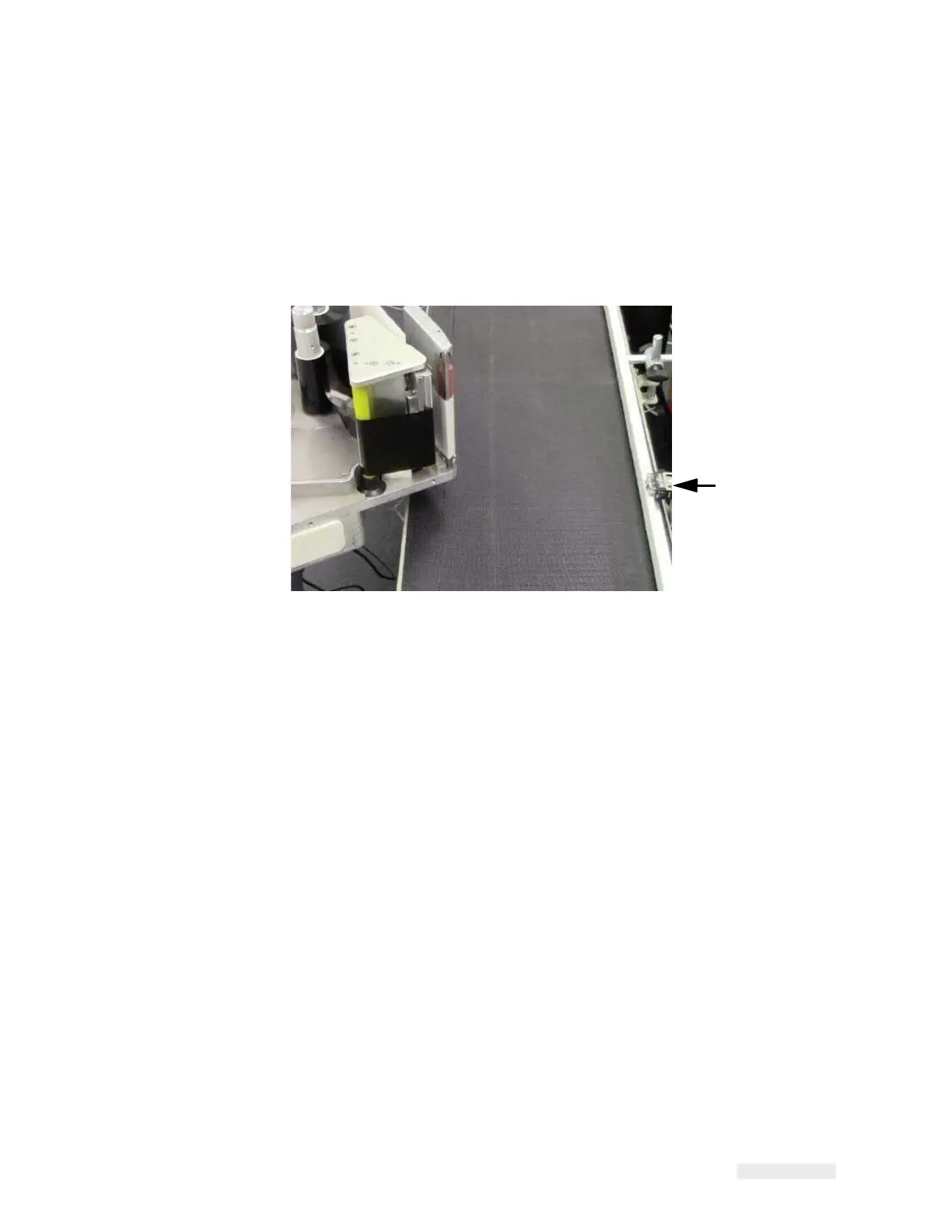

Figure 4-12: Product Detector
19
Connect the external shaft encoder (if used) to the DB-9 port
on the
side of the applicator.
