ICE Vulcan Service Manual
Idler rollers
The idler rollers are free-spinning rollers that support and guide the label
web through the
LPA. The position of the rollers is set for optimum
feeding of the label web.
Idler Rollers
Idler Rollers

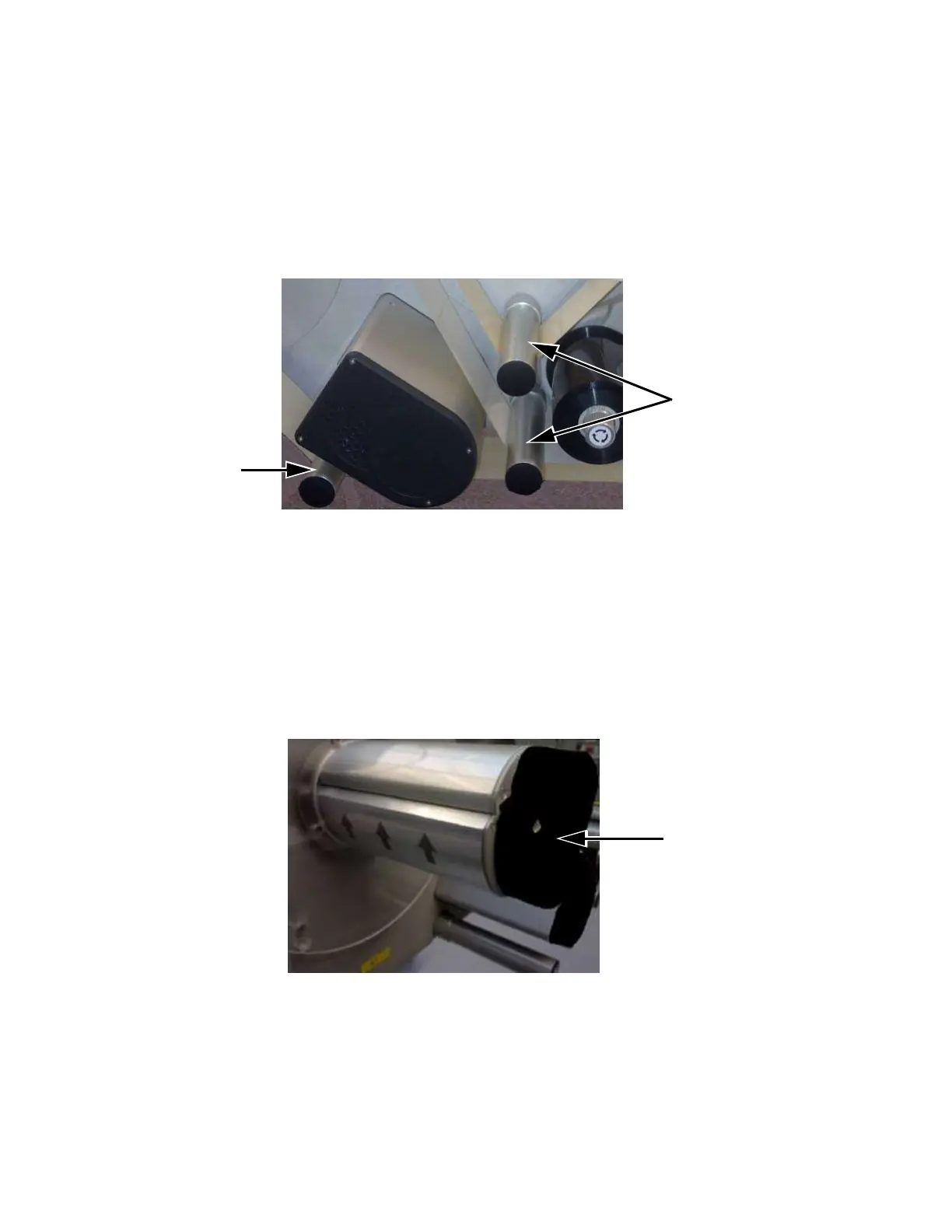

Figure 3-20: Idler Rollers
Label Waste Mandrel
The label waste mandrel winds the empty label backing (waste) that
remains after the label
has been printed and applied on the product. The
mandrel lock is used to hold and retain the
roll in place and allows easy
removal of the waste roll. The mandrel lock indicates the locking
and
unlocking directions.
Mandrel Lock
Figure 3-21: Label Waste Mandrel
