IDS Base Station Receiver 400 700-179-02B Issued January 2009 12
Reassemble.

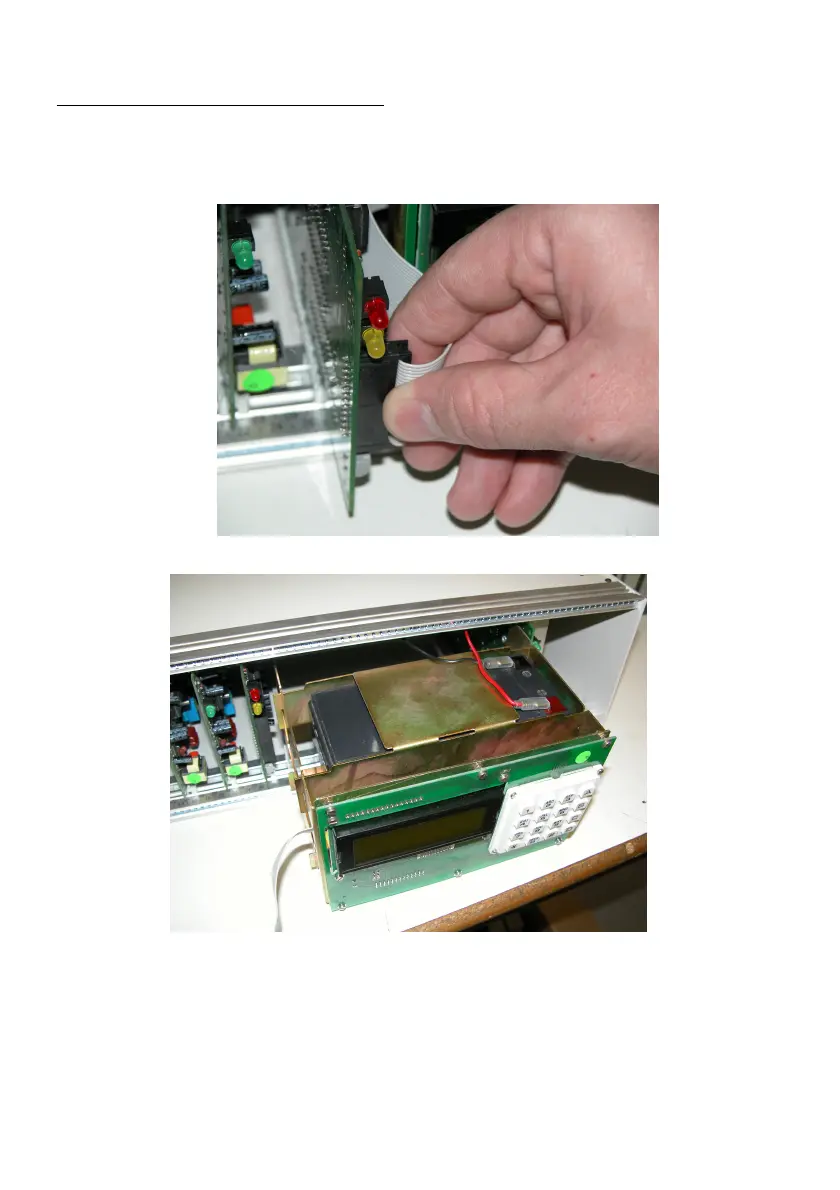

IDS BSR400 with Battery Retaining Bracket
:
Remove the front panel.
Pull out the “Control Card” (the card with the Red and Yellow LED’s) about 30 millimetres.
Insert the forefinger behind the ribbon cable, grip the connector with it and the thumb, and ease
it out of the plug.
Pull out the “Control Panel” assembly.
Remove the battery-retaining bracket.
Place the battery in the battery housing assembly.
DO NOT replace the top battery-retaining bracket.
Locate and connect the red and black battery cables to the battery.
Slide the assembly into the housing and reassemble.
