IEI Technology ROCKY-4786EVG User Manual
5
of 1
of 1 rating
180 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
1
-13
6
136
IEI
®
T
echnology
, Corp
.

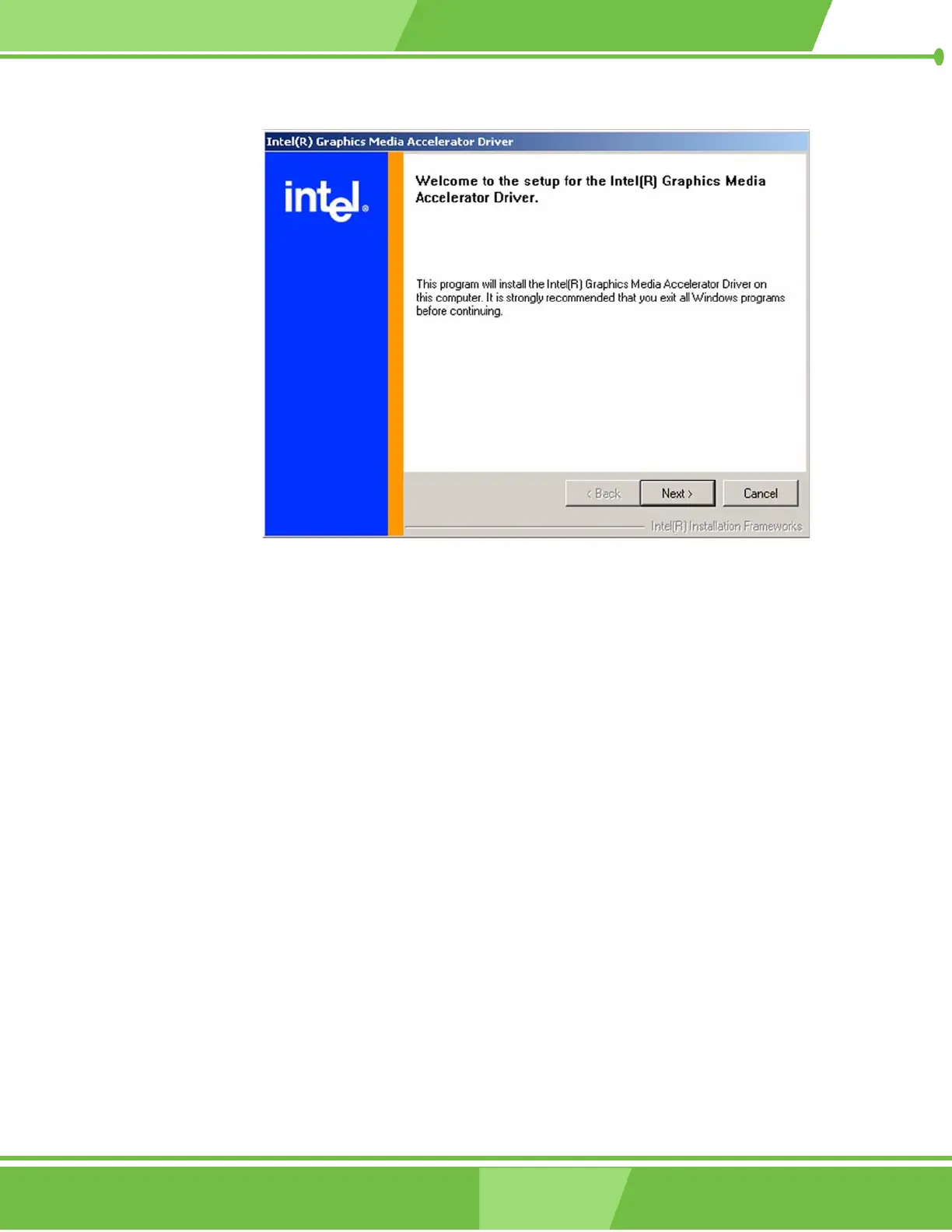

Figure 6-6: GMA Driver Installa
tion Welcome Screen
Step 3:
T
o continue installing cli
ck “
Next
” and a license agreement shown
in
Figure 6-7
will appear
. Read the license agreement.
135
137
Table of Contents
Table of Contents
3
Default Chapter
2
Copyright Notice
2
1 Introduction
13
Rocky-4786Evg Cpu Board Overview
14
ROCKY-4786EVG CPU Board Applications
14
ROCKY-4786EVG CPU Board Benefits
14
ROCKY-4786EVG CPU Board Features
14
Rocky-4786Evg Cpu Board Verview
15
Figure 1-1 ROCKY-4786EVG CPU Board Overview
15
ROCKY-4786EVG CPU Board Connectors
15
Technical Specifications
16
Table-1-1: Technical Specifications
17
2 Detailed Specifications
19
Compatible Iei Backplanes
20
Cpu Support
20
Celeron D
20
P4 Prescott
20
Table-2-1: Supported Cpus
20
ICH5 Southbridge Chipset
21
Intel® 865GV Northbridge Chipset
21
Northbridge and Southbridge Chipsets
21
Onboard Chipsets
21
Data Flow
22
Figure-2-1: Data Flow Block Diagram
23
Graphics Support
24
Gbe Ethernet
25
Memory Support
25
Pci Bus Interface Support
25
Drive Interfaces
27
Floppy Disk Drive (FDD)
27
IDE HDD Interfaces
27
SATA Drives
27
Serial Ports
27
Bios
28
Infrared Data Association (Irda) Interface
28
Real Time Clock
28
System Monitoring
28
Usb Interfaces
28
Audio Codec
29
Operating Temperature and Temperature Control
29
Power Consumption
30
Optional Accessory Items
31
Package Contents
31
Packaged Contents and Optional Accessory Items
31
Table 2-2: Power Consumption
31
3 Connectors and Jumpers
33
Peripheral Interface Connectors
34
Figure 3-1: Connector and Jumper Locations
34
ROCKY-4786EVG CPU Board Layout
34
Peripheral Interface Connectors
35
Onboard Jumpers
36
Rear Panel Connectors
36
Table 3-1: Peripheral Interface Connectors
36
Table 3-2: Peripheral Interface Connectors
36
Internal Peripheral Connectors
37
FDD Connector
37
Table 3-3: Onboard Jumpers
37
Figure 3-2: FDD Connector Location
38
Table 3-4: FDD Connector Pinouts
38
IDE Connectors
39
Table 3-5: IDE Connector Pinouts
39
Figure 3-3: IDE Connector Locations
40
COM Ports
41
Table-3-6: Internal COM Port Connector Pinouts
41
Figure 3-4 COM Port Locations
42
Parallel Port
43
Table-3-7: LPT Connector Pinouts
43
Figure-3-5: LPT Connector Location
44
Internal USB Connectors
45
Table-3-8: USB Port Connector Pinouts
45
Figure-3-6: USB Port Connector Location
46
Cooling Fan Connector
47
Table 3-9 Cooling Fan Connector Pinouts
47
Backplane to Mainboard ATX Connector
48
Figure 3-7 Cooling Fan Connector Locations
48
Figure 3-8: ATXCTL Connector Locations
49
Table 3-10: CN7 Connector Pin Outs
49
System Front Panel Connector
50
Table 3-11: System Panel Connector Pinouts
50
Figure 3-9: System Panel Connector Location
51
Irda Connector
51
Figure 3-10: Irda Connector Location
52
Table 3-12: Irda Connector Pinouts
52
SATA Drive Connectors
53
Table 3-13: SATA Connector Pinouts
53
Figure 3-11: SATA Connector Locations
54
Keyboard Connector
55
Table 3-14: CN5 Connector Pinouts
55
Figure 3-12: CN5 Connector Location
56
ATX-12V Power Source Connector
57
Figure 3-13: ATX Connector Location
57
Table 3-15: CN2 Connector Pinouts
57
External (Rear Panel) Connectors
58
Figure 3-14: ROCKY-4786EVG CPU Board Rear Panel
58
PS/2 Connector
58
Ethernet Connectors
59
Figure 3-15: PS/2 Pinout Locations
59
Table 3-16: PS/2 Pinouts
59
Figure 3-16: RJ-45 Ethernet Connector
60
LINE out Connector
60
Table 3-17: RJ-45 Ethernet Connector Pinouts
60
Table 3-18: RJ-45 Ethernet Connector Leds
60
Figure 3-17: VGA Connector
61
Table 3-19: VGA Connector Pinouts
61
VGA Connector
61
Jumpers
62
Figure 3-19: Jumper Locations
63
Reset CMOS Jumper
64
Table 3-20: JP2 Jumper Settings
64
4 Installation and Configuration
65
Installation Considerations
66
Installation Notices
66
Unpacking
67
Unpacking Precautions
67
Checklist
68
Rocky-4786Evg Cpu Card Installation
68
CPU Installation
69
Cooling Kit CF-519 Installation
70
Figure 4-1: Locking the CPU into the CPU Socket
70
DIMM Module Installation
71
Figure 4-2: Cooling Kit Support Bracket
71
Purchasing the Memory Module
71
DIMM Module Installation
72
Peripheral Device Connection
72
Table 4-1: IEI Provided Cables
72
Floppy Drive Connector (FDD1)
73
IDE Disk Drive Connector (IDE1)
73
Chassis Installation
74
Rear Panel Connectors
74
Ethernet Connection
74
LCD Panel Connection
74
Line out Connection
74
5 Award Bios Setup
75
Introduction
76
Starting Setup
76
Using Setup
76
Getting Help
77
Table 5-1: BIOS Navigation Keys
77
Unable to Reboot after Configuration Changes
77
Main BIOS Menu
78
Load Fail-Safe Defaults
79
Load Optimized Defaults
79
Set Supervisor Password
79
Set User Password
79
Save & Exit Setup
79
Standard Cmos Features
80
Exit Without Saving
80
IDE Master and IDE Slave
80
Drive a [1.44M, 3.5In]
81
Drive B [1.44M, 3.5In]
81
Video [EGA/VGA]
81
IDE Channel Master
83
Base Memory
83
Extended Memory
83
Total Memory
83
IDE HDD Auto-Detection [Press Enter]
84
IDE Channel 0/1 Master/Slave [Auto]
84
Access Mode [Auto]
85
Advanced Bios Features
86
Landing Zone
86
Virus Warning [Disabled]
87
CPU L1 & L2 Cache [Enabled]
87
Quick Power on Self Test [Enabled]
88
Boot Other Device [Enabled]
89
Swap Floppy Drive [Disabled]
89
Boot up Floppy Seek [Enabled]
89
Boot up Numlock Status [On]
90
Gate A20 Option [Fast]
90
Typematic Rate Setting [Disabled]
90
Typematic Rate (Chars/Sec) [6]
90
Typematic Delay (Msec) [250]
91
Security Option [Setup]
91
APIC Mode [Enabled]
92
MPS Version Control for os [1.4]
92
OS Select for DRAM > 64MB [Non-OS2]
92
CPU Feature
93
Small Logo (EPA) Show [Disabled]
93
Thermal Management [Thermal Monitor 1]
93
Hard Disk Boot Priority
95
Advanced Chipset Features
96
DRAM Timing Selectable [Manual]
96
CAS Latency Time [2]
97
Active to Precharge Delay [6]
97
DRAM RAS# to CAS# Delay [3]
97
DRAM RAS# Precharge [3 Clocks]
98
Memory Frequency for [DDR266]
98
System BIOS Cacheable [Enabled]
98
Video BIOS Cacheable [Disabled]
98
Memory Hole at 15M - 16M [Disabled]
99
Delay Prior to Thermal [16 Min.]
99
AGP Aperture Size (MB) [128]
99
Init Display First [PCI Slot]
100
On-Chip VGA [Enabled]
100
On-Chip Frame Buffer Size [16MB]
100
Integrated Peripherals
101
Boot Display [Auto]
101
Onchip IDE Device
102
IDE HDD Block Mode [Enabled]
102
On-Chip Primary PCI IDE [Enabled]
102
IDE PIO [Auto]
103
IDE UDMA [Auto]
103
On-Chip Secondary PCI IDE [Auto]
103
On Chip Serial ATA [Disabled]
104
PATA IDE Mode [Secondary]
104
Onboard Device
105
USB Controller [Enabled]
105
USB 2.0 Controller [Enabled]
105
Superio Device
106
USB Keyboard Support [Disabled]
106
AC97 Audio Select [Auto]
106
I82562ET LAN (10/100M) [Disabled]
106
POWER on Function [BUTTON ONLY]
107
KB Power on Password [Enter]
108
Hot Key Power on [Ctrl-F1]
108
Onboard FDC Controller [Disabled]
108
Onboard Serial Port 1 [3F8/IRQ4]
109
Onboard Serial Port 2 [2F8/IRQ4]
109
UART Mode Select [Normal]
109
Rxd, Txd Active [Hi,Lo]
110
IR Transmission Delay [Enabled]
110
UR2 Duplex Mode [Half]
110
Use IR Pins [IR-Rx2Tx2]
110
Onboard Parallel Port [378/IRQ7]
110
Parallel Port Mode [SPP]
111
EPP Mode Select
111
Power Management Setup
112
ECP Mode Use DMA [3]
112
PWRON after PWR-Fail [Off]
112
Watch Dog Timer Unit [Second]
112
Power-Supply Type [AT]
113
ACPI Function [Enabled]
113
ACPI Suspend Type [S1(POS)]
113
Run VGABIOS if S3 Resume [Auto]
114
Power Management [User Define]
114
Video off Method [DPMS]
115
Video off in Suspend [Yes]
115
Suspend Type [Stop Grant]
116
MODEM Use IRQ [3]
116
Suspend Mode [Disabled]
116
HDD Power down [Disabled]
117
Soft -Off by PWR-BTTN [Instant-Off]
118
Wake-Up on LAN(I82562ET) [Enabled]
118
Power on by Ring [Enabled]
118
USB KB Wake-Up from S3 [Disabled]
119
Resume by Alarm [Disabled]
119
Date(Of Month) Alarm [0]
119
Time(Hh:MM:ss) Alarm [0 : 0 : 0]
119
Pnp/Pci Configurations
120
Reload Global Timer Events
120
PNP os Installed [No]
121
Reset Configuration Data [Disabled]
121
Resources Controlled by [Auto (ESCD)]
122
IRQ Resources [Press Enter]
122
DMA Resources [Press Enter]
124
PCI/VGA Palette Snoop [Disabled]
124
Pc Health Status
125
System Temperature
125
Frequency/Voltage Control
126
Auto Detect DIMM/PCI Clk [Enabled]
127
Spread Spectrum [Disabled]
127
6 Software Drivers
129
Available Software Drivers
130
Chipset Driver Installation
131
Figure 6-1: IEI Driver CD Rocky-4786Evg/Rocky-4786E2V Menu
131
Figure 6-2: Chipset Software Installation Utility Welcome Screen
132
Figure 6-3: Chipset Software Installation Utility License Agreement
133
Figure 6-4: Chipset Software Installation Utility Readme File Information
134
Intel Graphics Media Accelerator Driver
135
Figure 6-5: Chipset Software Installation Utility Complete
135
Figure 6-6: GMA Driver Installation Welcome Screen
136
Figure 6-7: GMA Driver License Agreement
137
Figure 6-8: GMA Driver Installing Notice
137
Lan Driver Installation
138
Figure 6-9: GMA Driver Installation Complete
138
Figure 6-10: LAN Driver License Agreement
139
Figure 6-11: LAN Location to Save Files
140
Figure 6-12: LAN Extracting Files Notice
141
Figure 6-13: Intel® PRO Network Connections Main Menu
142
Figure 6-14: LAN Installation Notice
142
Usb2.0 Driver Installation
143
Figure 6-15: USB 2.0 Driver Install Shield Wizard Starting
143
Figure 6-16: USB2.0 Welcome Screen
144
Figure 6-17: USB2.0 License Agreement
144
Figure 6-18: USB2.0 Installation Notice
145
Realtek Audio Driver Installation
146
Figure 6-19: USB2.0 Driver Installation Complete
146
Figure 6-20: Audio Driver Install Shield Wizard Starting
147
Figure 6-21: Audio Driver Setup Preparation
147
Figure 6-22: Audio Driver Digital Signal
148
Figure 6-23: Audio Driver Installation Begins
148
Figure 6-24: Audio Driver Installation Complete
149
Abios Configuration Options
151
Bios Configuration
151
A.1 BIOS Configuration Options
152
Bios Configuration Options
152
Bwatchdog Timer
157
Caddress Mapping
161
Io Address Map
162
St Mb Memory Address Map
162
Irq Mapping Table
163
Dma Channel Assignments
163
Dexternal Ac'97 Audio Codec
165
Introduction
166
Driver Installation
166
Sound Effect Configuration
167
Sound Effect
167
Environment Simulation
168
Karaoke Mode
170
Equalizer Selection
171
S/Pdif-Out
172
Hrtf Demo
173
Microphone Effect
174
General
175
Eindex
177
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the IEI Technology ROCKY-4786EVG and is the answer not in the manual?
Ask a question
IEI Technology ROCKY-4786EVG Specifications
General
Brand
IEI Technology
Model
ROCKY-4786EVG
Category
Computer Hardware
Language
English
Related product manuals
IEI Technology ROCKY-3786EV
147 pages
IEI Technology WEB-6580
66 pages
Need help?
General
To Next Page
