IEI
®
Technology, Corp.
3.3 External (Rear Panel) Connectors
Figure 3-14 shows the ROCKY-4786EVG CPU board rear panel. The peripheral
connectors on the back panel can be connected to devices externally when the CPU card
is installed in a chassis. The peripheral connectors on the rear panel are:
1 x PS/2 keyboard connector
2 x RJ-45 GbE connectors
1 x Line-out connector
1 x VGA connector

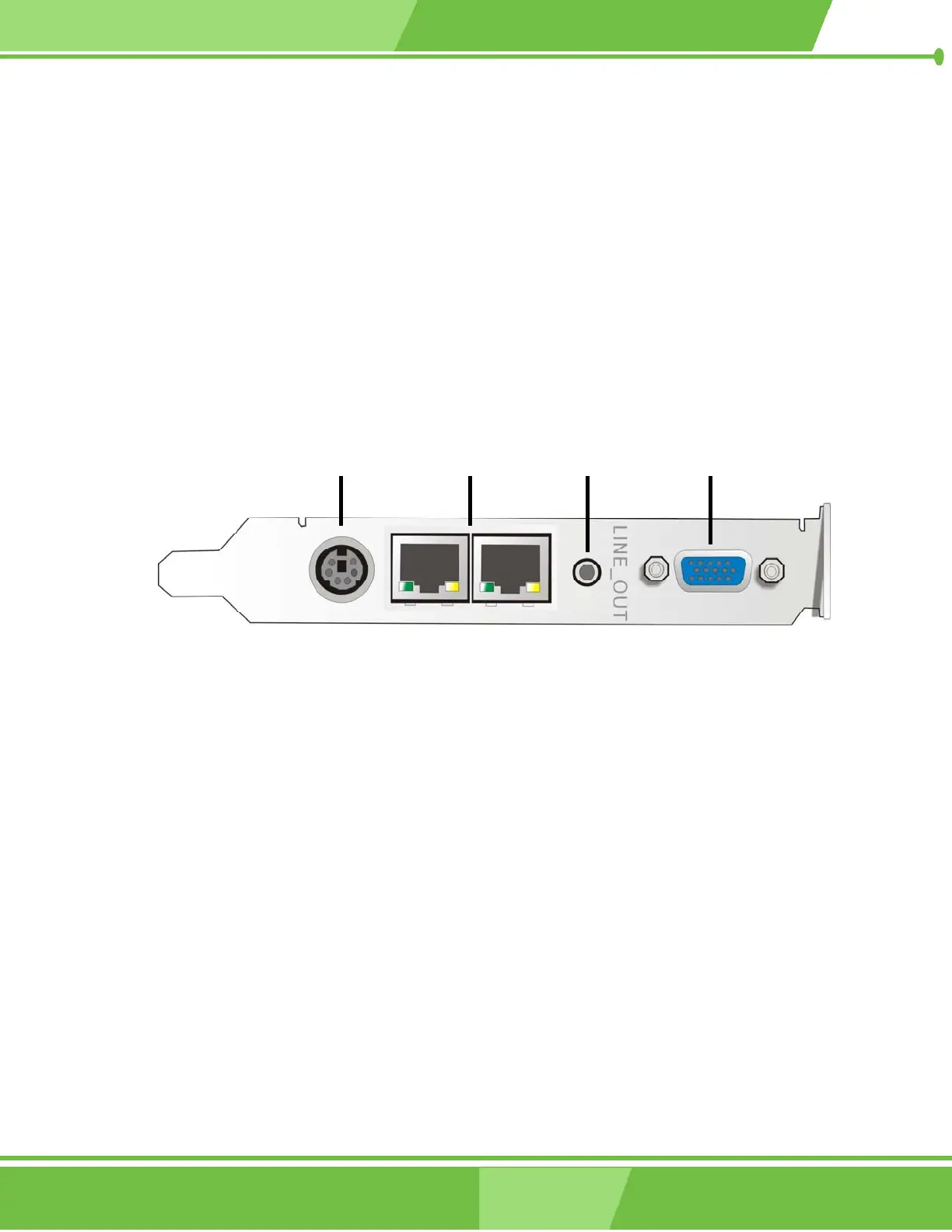

Figure 3-14: ROCKY-4786EVG CPU Board Rear Panel
3.3.1 PS/2 Connector
CN Label: KB_MS1
CN Type: PS/2
CN Location: See Figure 3-14 (labeled number 1)
CN Pinouts: See Table 3-16
Figure 3-15 shows PS/2 Pinout locations
1
23 4
