3.1 Peripheral Interface Connectors
The locations of the peripheral interface connectors are shown in Section 3.1.1. A
complete list of all the peripheral interface connectors can be seen in Section 3.1.2.
3.1.1 ROCKY-4786EVG CPU Board Layout
Figure 3-1 shows the onboard peripheral connectors, backplane peripheral connectors
and onboard jumpers.

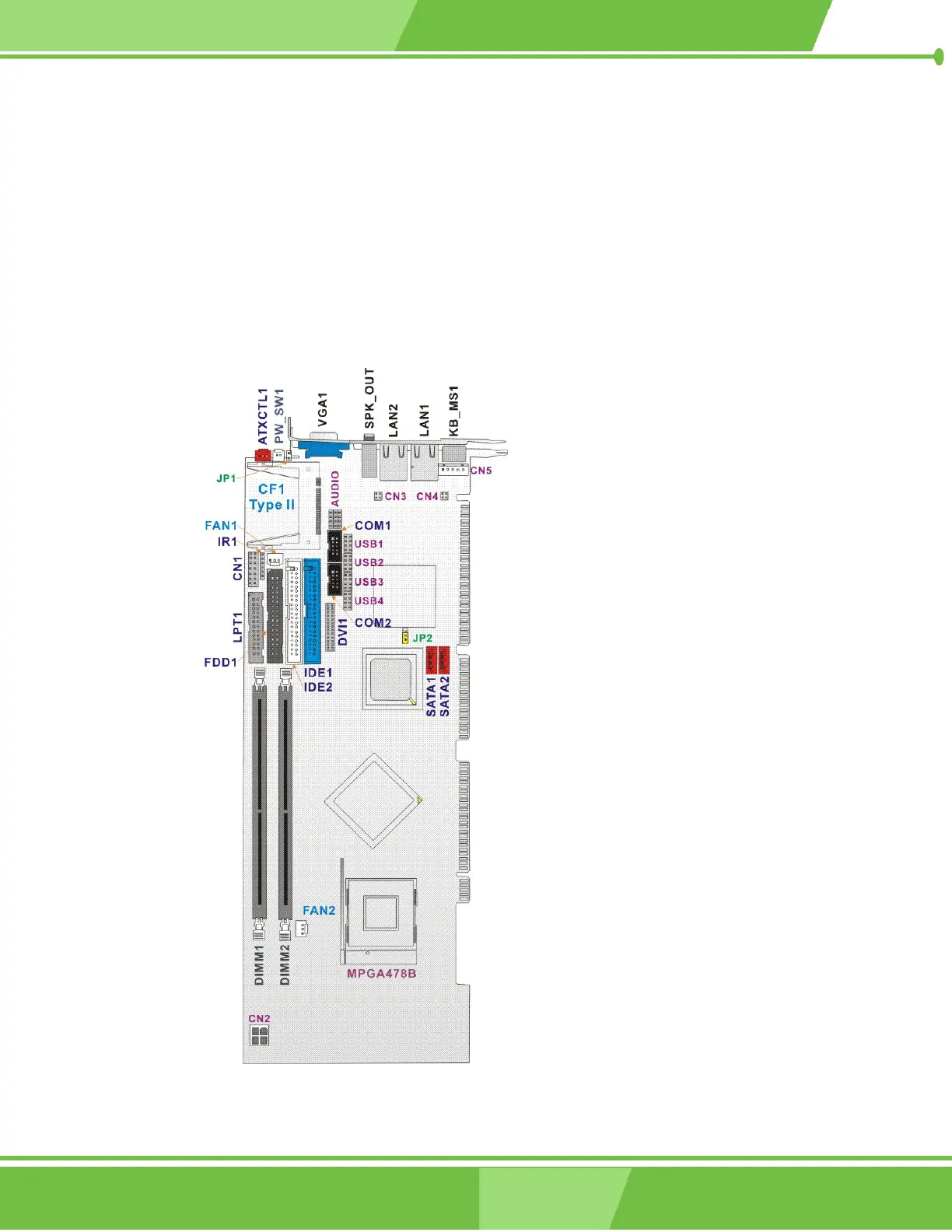

Figure 3-1: Connector and Jumper Locations
