1-61

ROCKY-4786EVG CPU Card

3.3.4 VGA Connector

CN Label: VGA1

CN Type: See Figure 3-17

CN Location: See Figure 3-14 (labeled number 4)

The standard 15-pin VGA connector connects to a CRT or LCD display monitor.

PIN DESCRIPTION PIN DESCRIPTION

1 Red 9 No Connect

2 Green 10 Ground

3 Blue 11 No Connect

4 No Connect 12 DDC DAT

5 Ground 13 Horizontal Synchronization

6 Ground 14 Vertical Synchronization

7 Ground 15 DDC Clock

8 Ground

Table 3-19: VGA Connector Pinouts

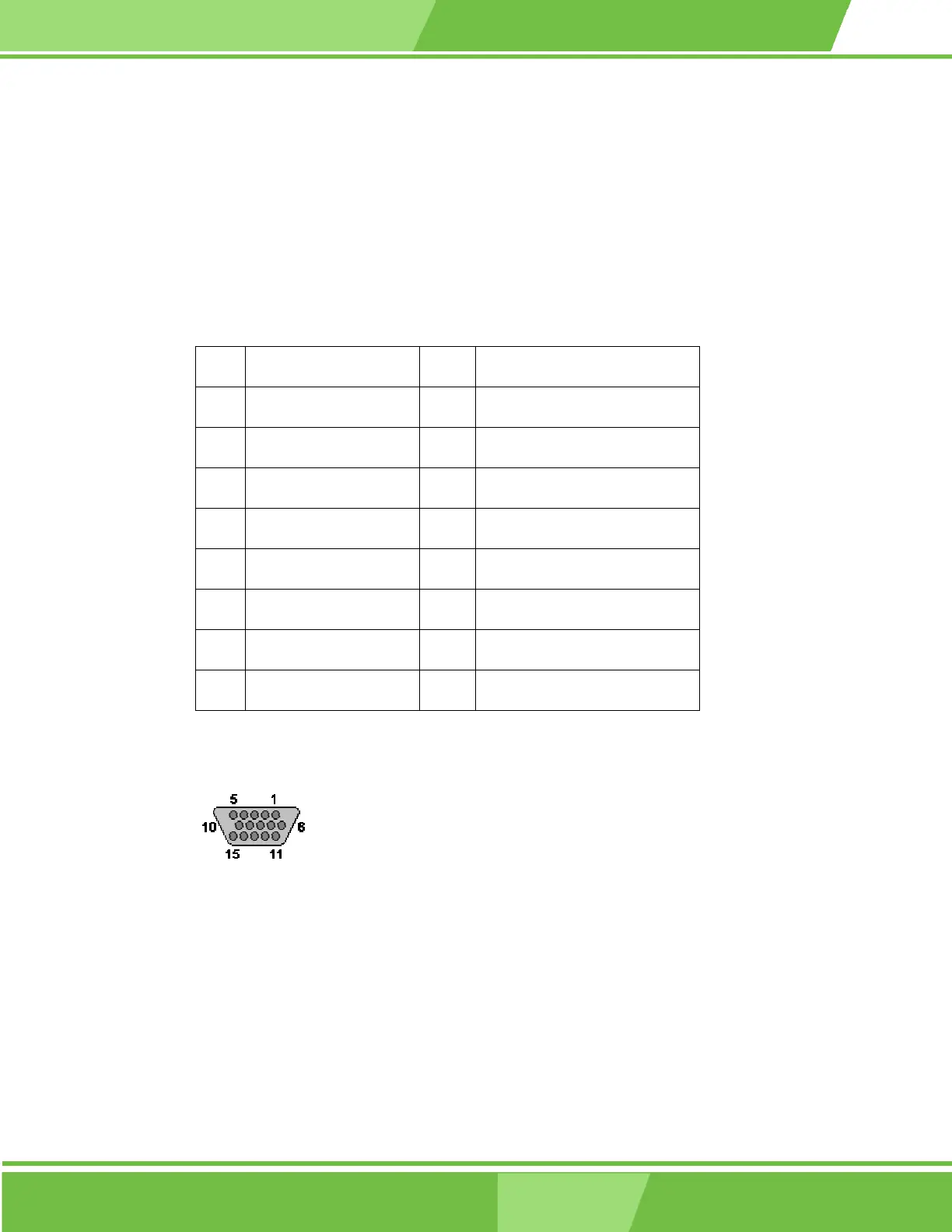

Figure 3-17: VGA Connector
