1-15
ROCKY-4786EVG CPU Card
15
1.2 ROCKY-4786EVG CPU Board Overview

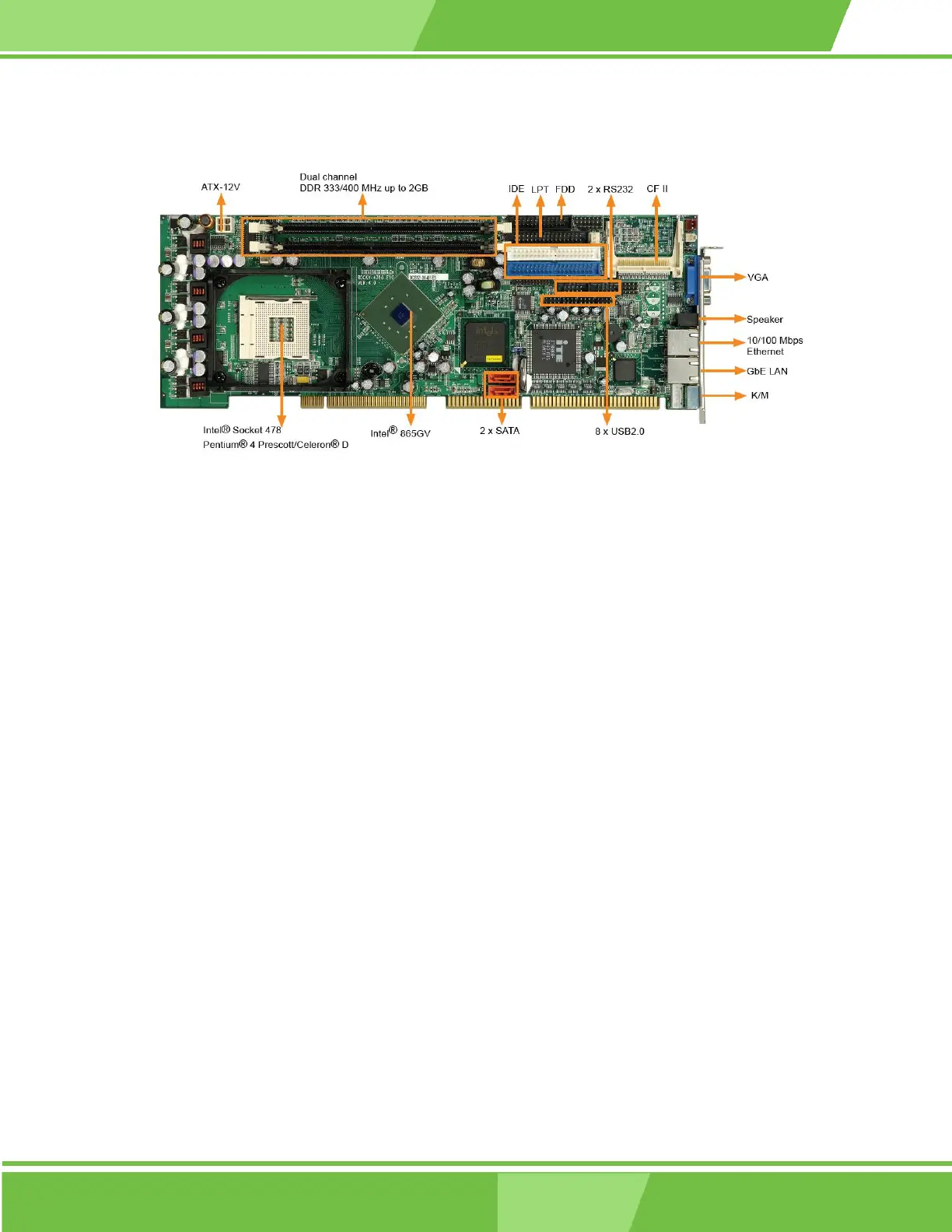

Figure 1-1 ROCKY-4786EVG CPU Board Overview
1.2.1 ROCKY-4786EVG CPU Board Connectors
The ROCKY-4786EVG CPU board has the following connectors onboard:
1 x ATX 12V connector
1 x CPU cooling fan connector
1 x IrDA connector
2 x IDE device connectors
1 x FDD connector
2 x RS-232 connectors
1 x Parallel port connector
1 x Front panel connector
1 x ATX backplane power connector
2 x SATA connectors
8 x USB connectors
1 x DIO connector
1 x LINE_IN connector
1 x CD_IN connector
1 x MIC_IN connector
1 x Keyboard/Mouse connector
