1-71
ROCKY-4786EVG CPU Card
71
the CPU card. Align the bracket with the four retention holes at the back of the
CPU card. Once properly aligned, insert four retention screws from the front of
the CPU card.

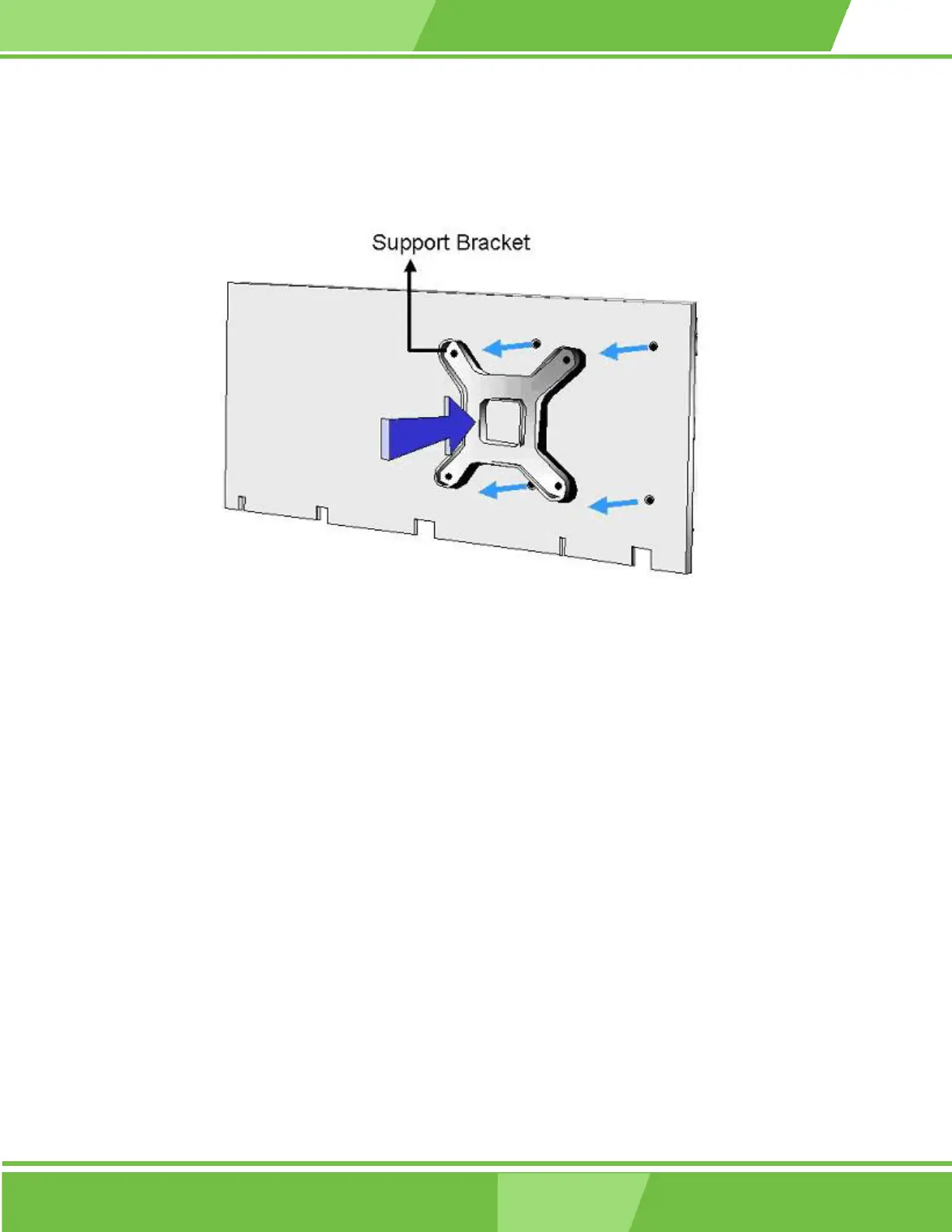

Figure 4-2: Cooling Kit Support Bracket
Step 2: Open the lever at the top of the heat sink. Lift the lever at the top of the
cooling kit to loosen the cooling kit clamps.
Step 3: Secure the cooling kit. Gently place the heat sink and cooling kit onto the CPU.
Make sure the hooks are properly secured to the bracket. To secure the cooling
kit, close the top lever.
4.3.3 DIMM Module Installation
4.3.3.1 Purchasing the Memory Module
When you purchase your DIMM modules, the following considerations should be taken into
account:
Each DIMM module can support a memory chip with a maximum size of
1GB
It is recommended that you use memory modules of identical brand, size,
chips, and speed.
