WAFER-LX Motherboard
Page 120
7.1 VIA® RAID Utility
The WAFER-LX has a VIA® VT6421 SATA controller chip onboard. The SATA RAID
controller allows the two SATA ports to be setup as
Two individual drives
A RAID 0 striped array for performance
A RAID 1 mirrored array for data security
A JBOD array to allow both disks to be accessed as a single large disk
For maintenance after the initial setup, please use the operating system software RAID
software utility.
7.2 Accessing The RAID Utility
During the boot process, the message below shows. Press the TAB key to enter the RAID
utility.

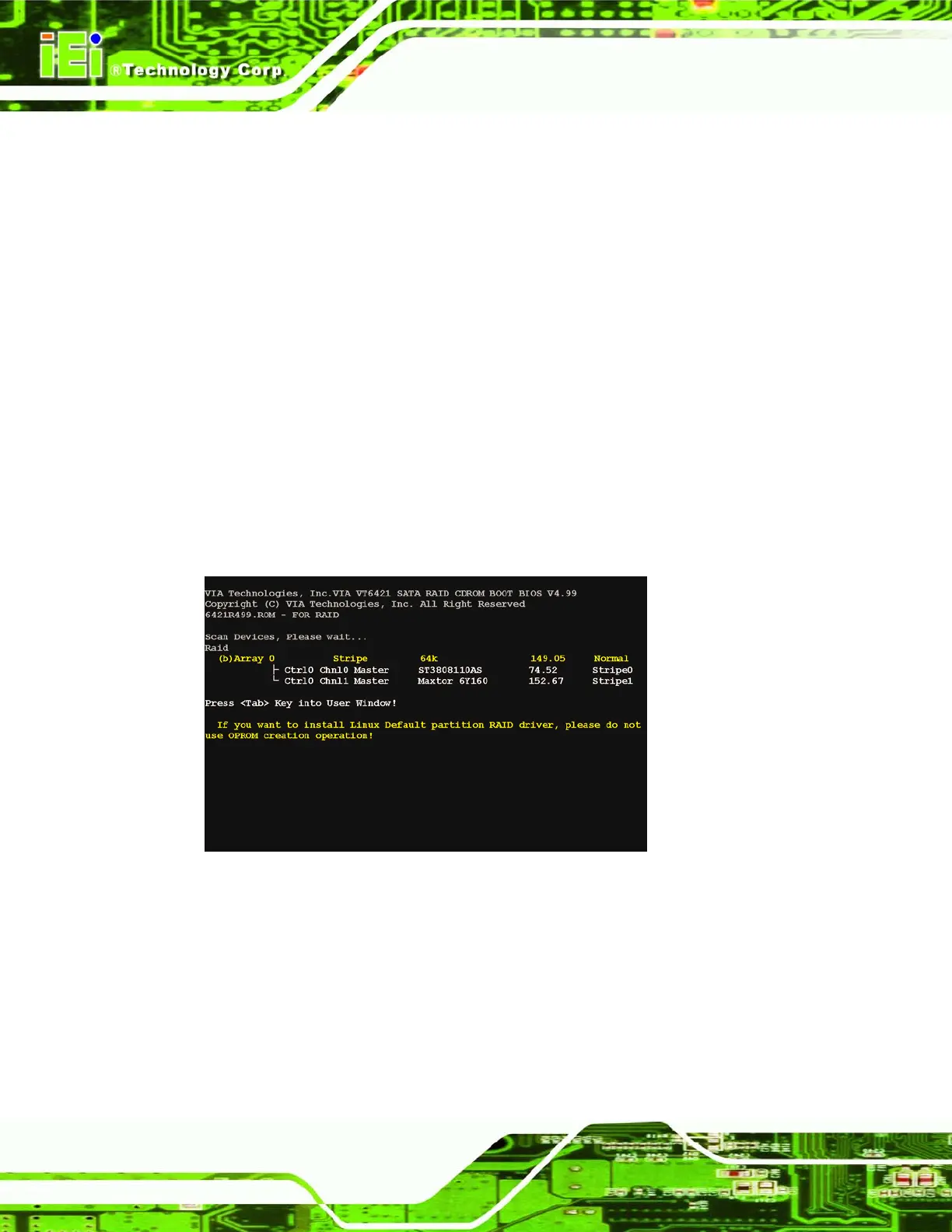

Figure 7-1: RAID Utility
