WAFER-LX Motherboard
Page 57

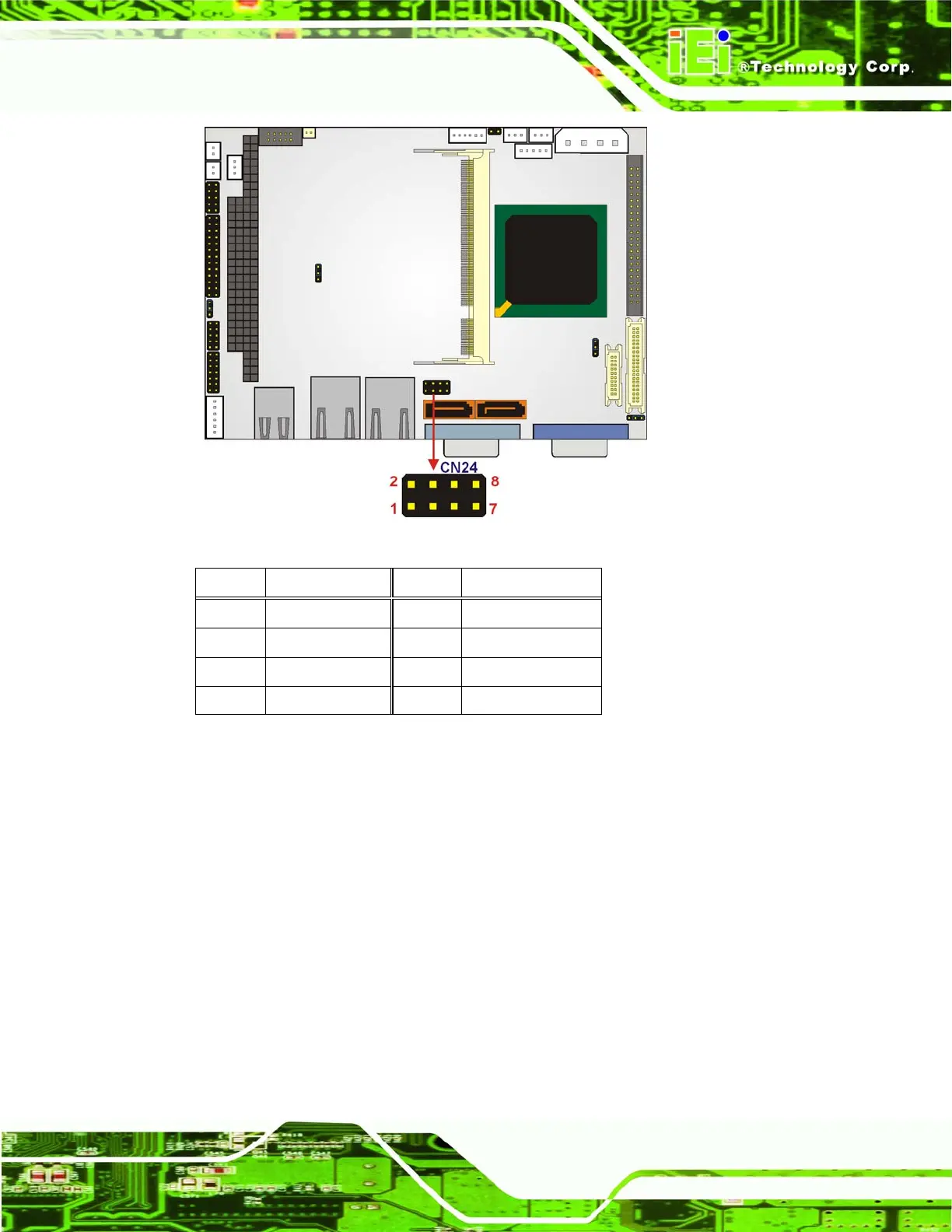

Figure 4-24: USB Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC_USB 2 GND
3 DATA3- 4 DATA4+
5 DATA3+ 6 DATA4-
7 GND 8 VCC_USB
Table 4-25: USB Port Connector Pinouts
4.3 External Interface Connectors
4.3.1 External Interface Connector Overview
Figure 4-25 shows the WAFER-LX motherboard external interface connectors. The
WAFER-LX on-board external interface connectors are listed below and shown in
Figure 4-25:
1 x USB combo port
2 x Ethernet connector
1 x Serial communications port
1 x VGA port
