WAFER-LX Motherboard
Page 53

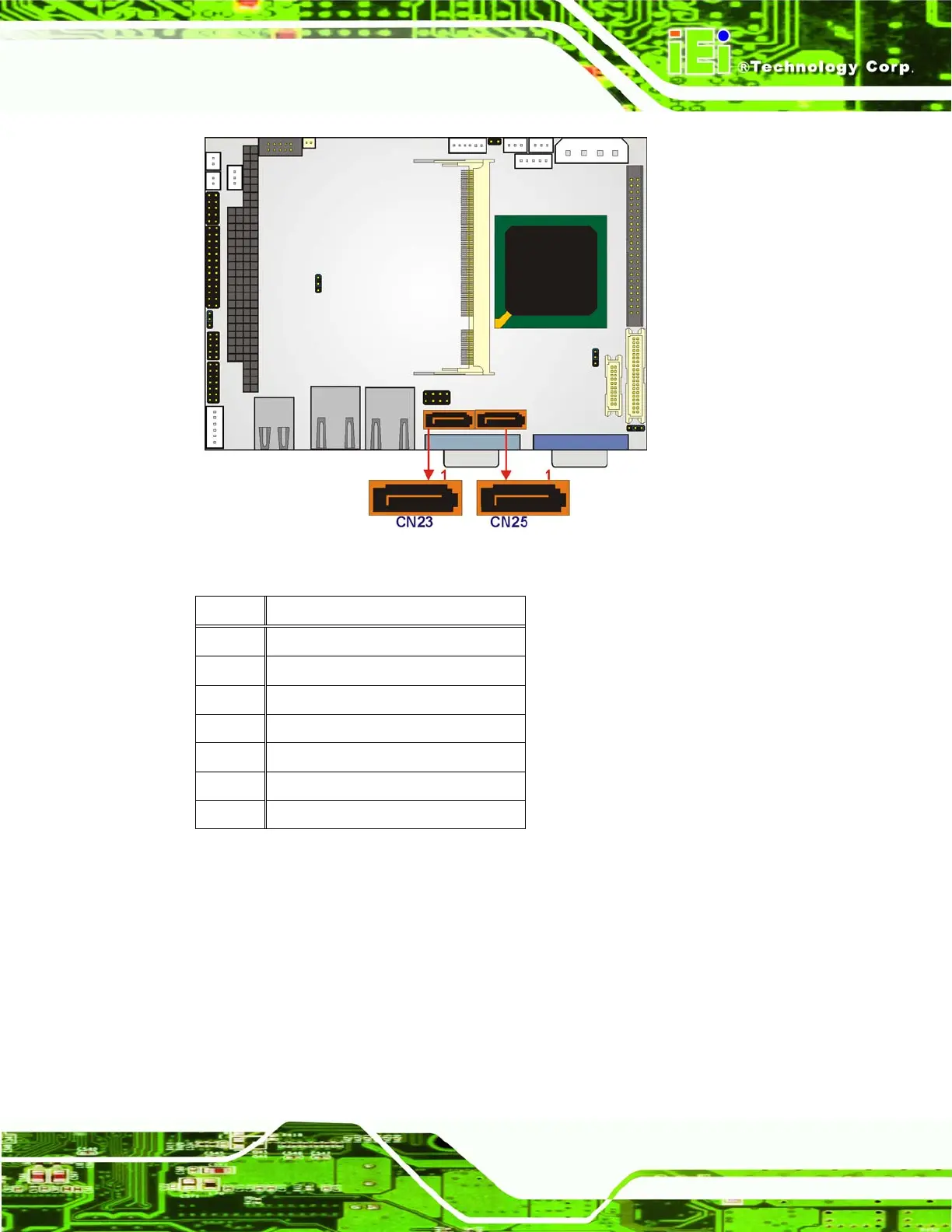

Figure 4-21: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 4-22: SATA Drive Connector Pinouts
4.2.20 TFT LCD LVDS Connector
CN Label: CN29
CN Type:
20-pin header (2x10)
CN Location:
See
Figure 4-22
CN Pinouts:
See
Table 4-23
