IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 28
4.1 Peripheral Interface Connectors
Section 4.1.2 shows peripheral interface connector locations. Section 4.1.2 lists all the
peripheral interface connectors seen in Section
4.1.2.
4.1.1 WAFER-LX Layout
Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors
and on-board jumpers.

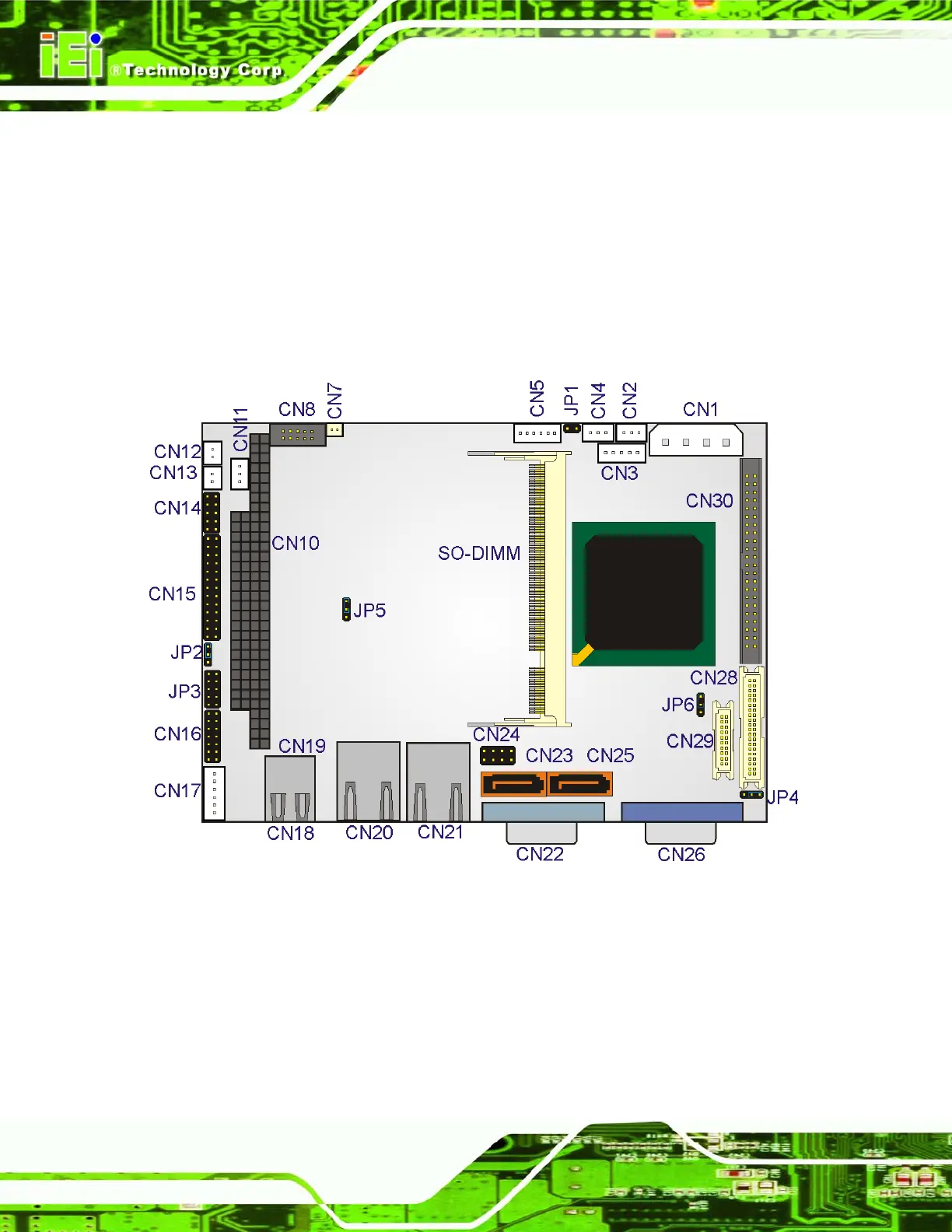

Figure 4-1: Connector and Jumper Locations

IEI Technology WAFER-LX-800-R12 Specifications

General

Brand	IEI Technology
Model	WAFER-LX-800-R12
Category	Motherboard
Language	English
