IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 121

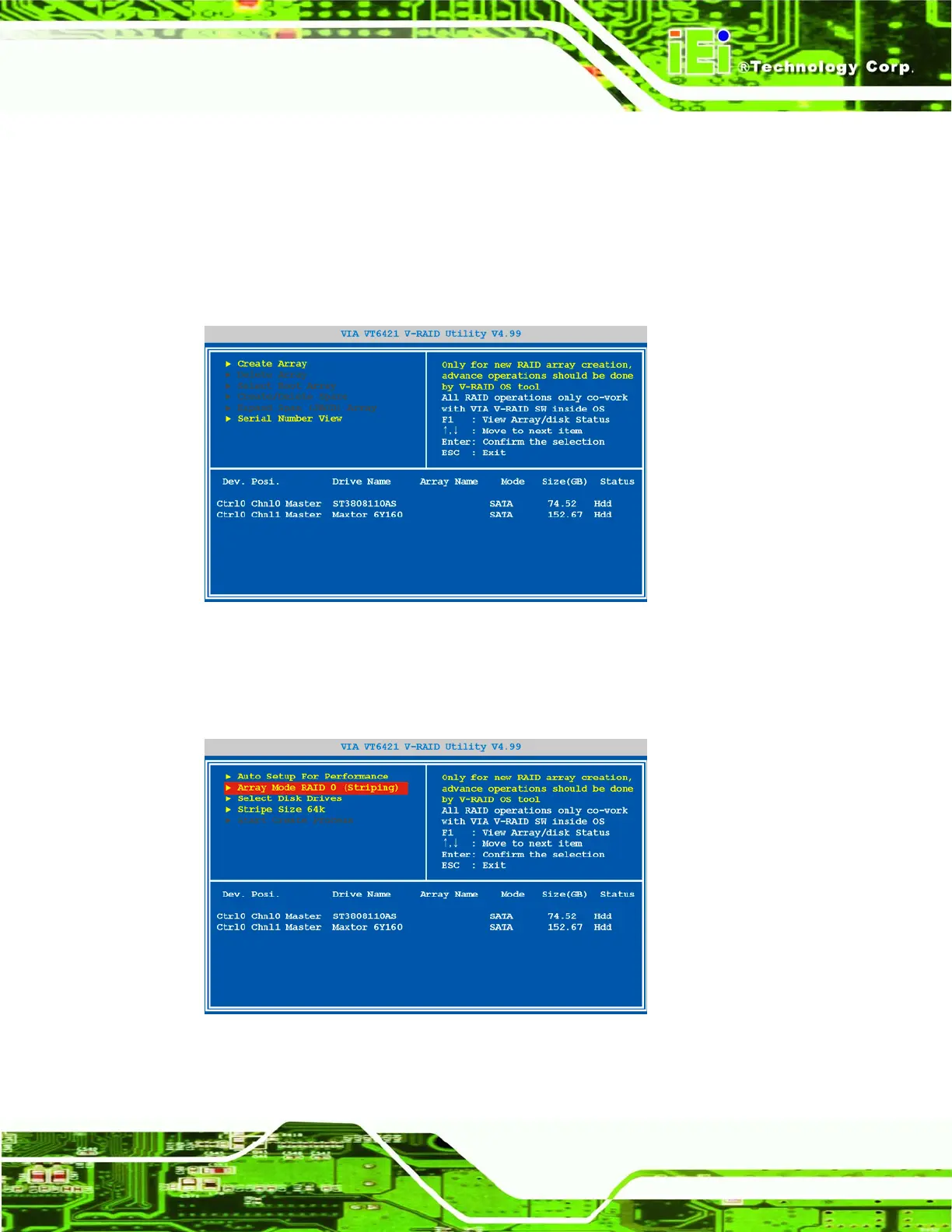

7.3 Creating a RAID Array
The steps for creating a RAID 0, RAID 1 and JBOD array are similar. To create a RAID
array, follow the steps below.
Step 1: The RAID setup utility main screen appears. Select the “Create Array” option
from the list and press Enter.
Figure 7-2: RAID Setup Main Screen
Step 2: Select the second option “Array Mode…” and press Enter to select the type of
RAID array to setup.
Figure 7-3: Create Array
