IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 34
PIN NO. DESCRIPTION
3 PS_ON
Table 4-5: ATX Power Connector Pinouts
4.2.3 ATX Power Button Connector
CN Label: CN13
CN Type:
1-pin header (1x2)
CN Location:
See
Figure 4-5
CN Pinouts:
See
Table 4-6
The ATX power button connector to a power switch installed on the system chassis.

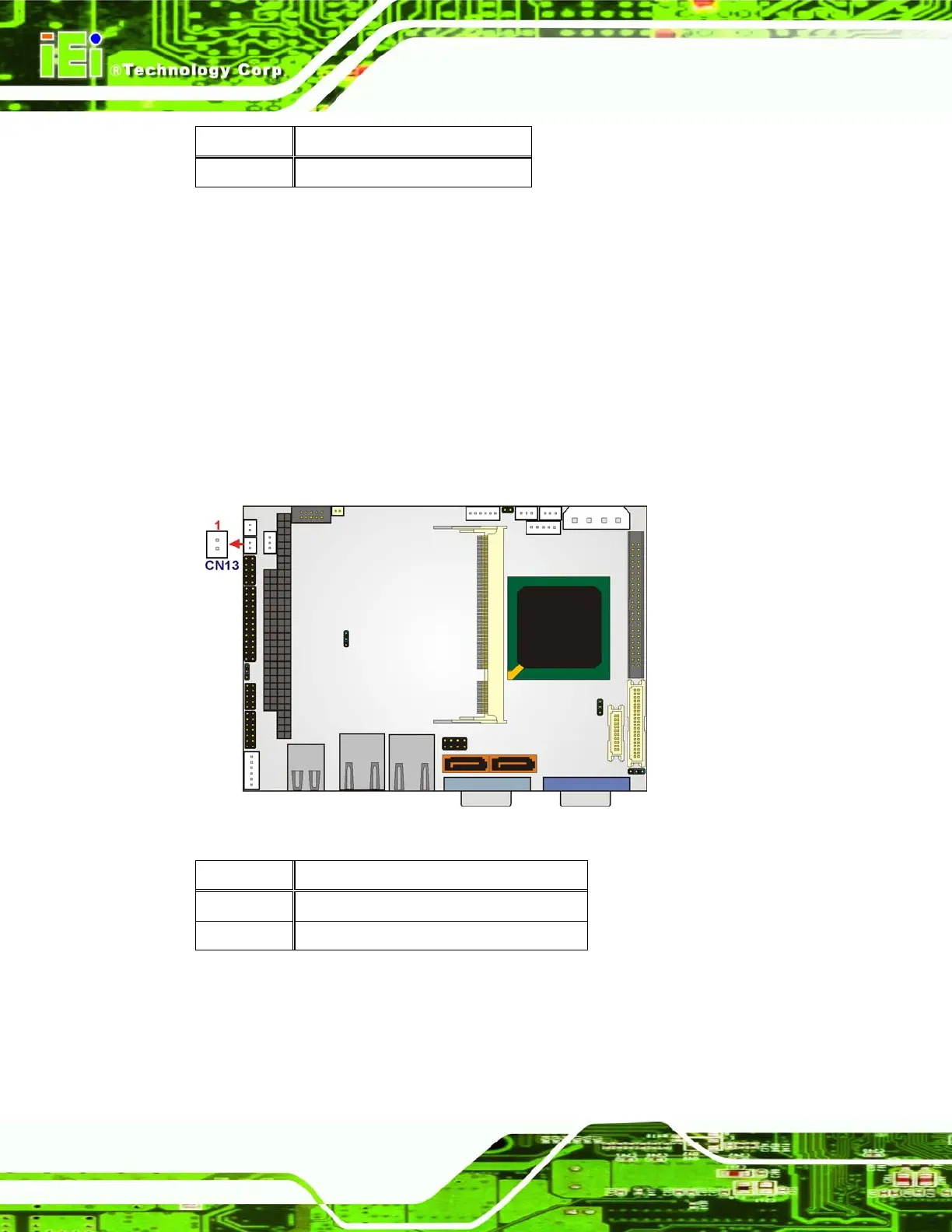

Figure 4-5: ATX Power Button Connector
PIN NO. DESCRIPTION
1 PWRBTN#
2 GND
Table 4-6: ATX Power Button Connector Pinouts
4.2.4 Audio Connector
CN Label: CN8
