IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 33
PIN NO. DESCRIPTION
3 GND
4 +5 V
Table 4-4: AT Power Connector Pinouts
4.2.2 ATX Power Connector
CN Label: CN2
CN Type:
3-pin header (1x3)
CN Location:
See
Figure 4-4
CN Pinouts:
See
Table 4-5
The ATX Power connector (CN2) connects an ATX or AT power supply connector.

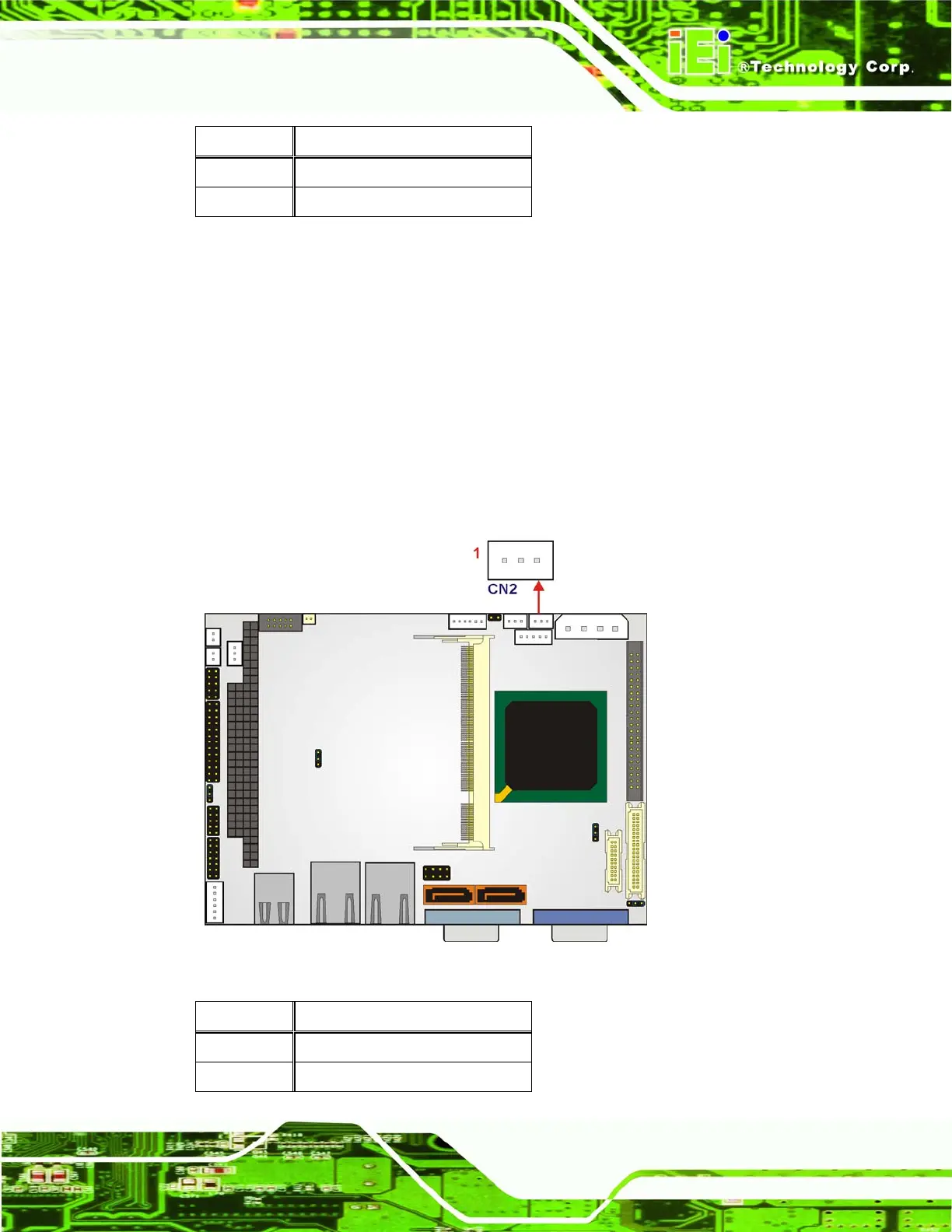

Figure 4-4: ATX Power Connector Location
PIN NO. DESCRIPTION
1 +5 V_SB
2 NC (v1.10)
